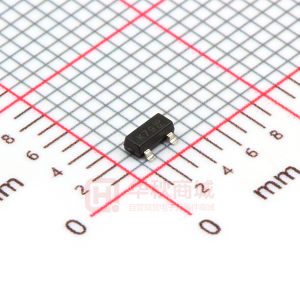

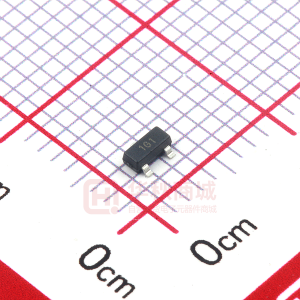

BAT750

BAT750

  • 厂商:

    DIODES

  • 封装:

  • 描述:

    BAT750 - 0.75A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER - Diodes Incorporated

  • 数据手册
  • 价格&库存
BAT750 数据手册
SPICE MODEL: BAT750 Lead-free BAT750 0.75A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Features · · · · · Very Low Forward Voltage Drop High Conductance For Use in DC-DC Converter, PCMCIA, and Mobile Telecommunications Applications Lead Free/RoHS Compliant (Note 3) Qualified to AEC-Q101 Standards for High Reliability B C A SOT-23 Dim A B C D E G K J L M TOP VIEW Min 0.37 1.20 2.30 0.89 0.45 1.78 2.80 0.013 0.903 0.45 0.085 0° Max 0.51 1.40 2.50 1.03 0.60 2.05 3.00 0.10 1.10 0.61 0.180 8° Mechanical Data · · · · · · · · E D G H Case: SOT-23 Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020C Terminals: Solderable per MIL-STD-202, Method 208 Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe). Polarity: See Diagram Marking: K77 or K79 and Date Code, See Page 3 Weight: 0.008 grams (approximate) H J K L M a All Dimensions in mm Maximum Ratings @ TA = 25°C unless otherwise specified Symbol VRRM VRWM VR VR(RMS) IO IFSM Pd RqJA Tj, TSTG Value 40 28 0.75 5.5 350 286 -55 to +125 Unit V V A A mW °C/W °C Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Current Non-Repetitive Peak Forward Surge Current 8.3ms Single half sine-wave superimposed on rated load Power Dissipation (Note 1) Typical Thermal Resistance, Junction to Ambient Air (Note 1) Operating and Storage Temperature Range Electrical Characteristics Characteristic Reverse Breakdown Voltage (Note 2) @ TA = 25°C unless otherwise specified Symbol V(BR)R Min 40 Typ 45 225 235 290 340 390 420 475 50 175 25 ¾ Max ¾ 280 310 350 420 490 540 650 100 ¾ ¾ 10 Unit V IF = IF = IF = IF = IF = IF = IF = Test Condition IR = 300uA 50mA 100mA 250mA 500mA 750mA 1000mA 1500mA Forward Voltage VF ¾ mV Reverse Current (Note 2) Total Capacitance Reverse Recovery Time Notes: IR CT trr ¾ ¾ ¾ ¾ mA pF pF ns VR = 30V VR = 0V, f = 1.0MHz VR = 25V, f = 1.0MHz IF = IR = 100mA, Irr = 10mA. See figure 6. 1. Part mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. 2. Short duration test pulse used to minimize self-heating effect. 3. No purposefully added lead. DS30216 Rev. 10 - 2 1 of 3 www.diodes.com BAT750 ã Diodes Incorporated 1.0 IO, AVERAGE RECTIFIED CURRENT (A) IF, INSTANTANEOUS FORWARD CURRENT (A) 10 1 TA = 125ºC TA = -65ºC 0.75 0.1 0.50 TA = 0ºC 0.01 TA = 25ºC TA = 75ºC 0.25 0.001 TA = 100ºC 0 0 25 50 75 100 125 150 TL, LEAD TEMPERATURE (° C) Fig. 1 Forward Current Derating Curve 0.0001 0 0.2 0.4 0.6 0.8 1.0 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 2 Typical Forward Characteristics 150 1000 f = 1MHz TA, AMBIENT TEMPERATURE (ºC) 125 CT, TOTAL CAPACITANCE (pF) 100 100 75 10 50 25 1 0 5 10 15 20 25 30 35 40 VR, REVERSE VOLTAGE (V) Fig. 3 Total Capacitance vs Reverse Voltage 10,000 TA = 125ºC 1 10 20 30 40 50 VR, REVERSE VOLTAGE (V) Fig. 4 Typical Safe Operating Area Note: 1. Assumed application thermal conditions. RqJA varies depending on application. 1000 TA = 100ºC TA = 75ºC 100 TA = 25ºC trr Test Circuit 100mA 10mA 10 TA = 0ºC 1.0 TA = -65ºC 0.1 5V 100mA trr 0.01 0 10 20 30 40 VR, INSTANTANEOUS REVERSE VOLTAGE (V) Fig. 5 Typical Reverse Characteristics Fig. 6 Reverse Recovery Time Test Circuit and Waveform DS30216 Rev. 10 - 2 2 of 3 www.diodes.com BAT750 Ordering Information Device BAT750-7-F Notes: (Note 4) Packaging SOT-23 Shipping 3000/Tape & Reel 4. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information XXX Date Code Key Year Code 2001 M 2002 N 2003 P 2004 R 2005 S XXX = Product Type Marking Code YM = Date Code Marking Y = Year ex: N = 2002 M = Month ex: 9 = September YM 2006 T 2007 U 2008 V 2009 W 2010 X 2011 Y 2012 Z Month Code Jan 1 Feb 2 March 3 Apr 4 May 5 Jun 6 Jul 7 Aug 8 Sep 9 Oct O Nov N Dec D IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. DS30216 Rev. 10 - 2 3 of 3 www.diodes.com BAT750
