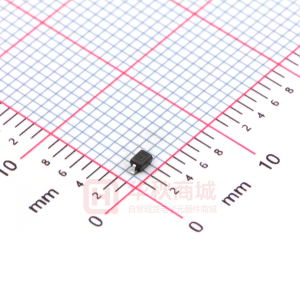

BAT760

SPICE MODEL: BAT760 Lead-free Green BAT760 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER NEW PRODUCT Features · · · · · Very Low Forward Voltage Drop Guard Ring Construction for Transient Protection High Conductance Lead Free By Design/RoHS Compliant (Note 3) "Green Device" (Note 4) H G A B D SOD-323 Dim Min 2.30 1.60 1.20 1.00 0.25 0.20 0.10 0° Max 2.70 1.80 1.40 1.10 0.35 0.40 0.15 8° A B C D E G C E Mechanical Data · · · · · · Case: SOD-323 Case Material - Molded Plastic, "Green" Molding Compound. UL Flammability Classification Rating 94V-0 Moisture sensitivity: Level 1 per J-STD-020C Terminal Connections: Cathode Band Terminals: Finish ¾ Matte Tin annealed over Alloy 42 leadframe. Solderable per MIL-STD-202, Method 208 Marking & Type Code Information: See Page 2 Type Code: LZ J H J a 0.05 Typical All Dimensions in mm · · Ordering Information: See Page 2 Weight: 0.004 grams (approx.) @ TA = 25°C unless otherwise specified Maximum Ratings Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Output Current Non-Repetitive Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Operating and Storage Temperature Range Symbol VRRM VRWM VR VR(RMS) IO IFSM Tj, TSTG Value 30 21 1 5.5 -65 to +125 Unit V V A A °C Thermal Characteristics Power Dissipation (Note 1) @ TA = 25°C unless otherwise specified Symbol Pd RqJA Value 235 426 Unit mW °C/W Characteristic Typical Thermal Resistance Junction to Ambient (Note 1) Electrical Characteristics Characteristic Reverse Breakdown Voltage (Note 2) Forward Voltage Drop @ TA = 25°C unless otherwise specified Symbol V(BR)R VF Min 30 ¾ ¾ ¾ ¾ ¾ ¾ ¾ Typ ¾ 245 320 495 3.0 3.5 5.0 25 Max ¾ 270 350 550 10 20 50 ¾ Unit V mV mA pF Test Conditions IR = 500mA IF = 10mA IF = 100mA IF = 1A VR = 5V VR = 8V VR = 15V f = 1MHz, VR = 5VDC Leakage Current (Note 2) Total Capacitance Note: IR CT 1. Part mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. 2. Short duration test pulse used to minimize self-heating effect. 3. No purposefully added lead. 4. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php. DS30498 Rev. 5 - 2 1 of 2 www.diodes.com BAT760 ã Diodes Incorporated 1.5 IF, INSTANTANEOUS FORWARD CURRENT (A) 2.0 10 NEW PRODUCT IF(AV), AVERAGE FORWARD CURRENT (A) 1 TA = 125ºC TA = 100ºC 1.0 0.1 TA = 75ºC 0.5 0.01 TA = 25ºC TA = 0ºC 0 0 25 50 75 100 125 150 TT, TERMINAL TEMPERATURE (° C) Fig. 1 Forward Current Derating Curve 10000 TA = 125ºC 0.001 0 0.2 0.4 0.6 TA = -65ºC 0.8 1.0 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 2 Typical Forward Characteristics 60 f = 1MHz 1000 TA = 100ºC 50 TA = 75ºC TA = 25ºC 100 10 1 0.1 0.01 0.001 0.0001 0 CT, TOTAL CAPACITANCE (pF) 30 40 30 TA = 0ºC 20 TA = -65ºC 10 0 10 20 0 5 10 15 20 VR, INSTANTANEOUS REVERSE VOLTAGE (V) Fig. 3 Typical Reverse Characteristics VR, REVERSE VOLTAGE (V) Fig. 4 Typ. Total Capacitance vs Reverse Voltage Ordering Information (Note 5) Packaging SOD-323 Shipping 3000/Tape and Reel Device BAT760-7 Note: 5. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information Type Code LZ Cathode Band DS30498 Rev. 5 - 2 2 of 2 www.diodes.com BAT760
