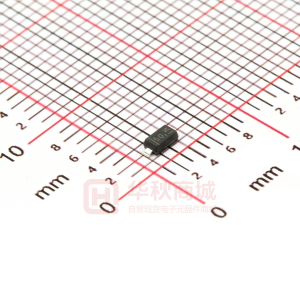

BAV116W-7-F

BAV116W SURFACE MOUNT LOW LEAKAGE DIODE Please click here to visit our online spice models database. Features • • • Surface Mount Package Ideally Suited for Automated Insertion Very Low Leakage Current Lead, Halogen and Antimony Free, RoHS Compliant "Green" Device (Notes 3 and 4) Mechanical Data • • • • • • • • • Case: SOD-123 Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020D Terminals: Solderable per MIL-STD-202, Method 208 Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe) Polarity: Cathode Band Marking Information: See Page 2 Ordering Information: See Page 2 Weight: 0.01 grams (approximate) SOD-123 TOP VIEW Maximum Ratings @TA = 25°C unless otherwise specified Symbol VRRM VRWM VR VR(RMS) IFM IFRM @ t = 1.0μs @ t = 1.0ms @ t = 1.0s IFSM Value 130 90 215 500 4.0 1.0 0.5 Unit V V mA mA A Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Forward Continuous Current Repetitive Peak Forward Current Non-Repetitive Peak Forward Surge Current Thermal Characteristics Characteristic Power Dissipation (Note 2) Thermal Resistance Junction to Ambient Air (Note 2) Operating and Storage Temperature Range Symbol PD RθJA TJ, TSTG Value 250 500 -65 to +150 Unit mW °C/W °C Electrical Characteristics Characteristic Reverse Breakdown Voltage (Note 1) @TA = 25°C unless otherwise specified Symbol V(BR)R Min 130 130 Typ ⎯ ⎯ Max ⎯ ⎯ 0.90 1.0 1.1 1.25 1.0 5.0 80 5 3.0 Unit V Test Condition IR = 100μA IR = 100μA, TJ =125°C IF = 1.0mA, TJ = 25°C IF = 10mA, TJ = 25°C IF = 50mA, TJ = 25°C IF = 150mA, TJ = 25°C IF = 10mA, TJ = 125°C VR = 75V, TJ = 25°C VR = 75V, TJ = 125°C VR = 0, f = 1.0MHz IF = IR = 10mA, Irr = 0.1 x IR, RL = 100Ω Forward Voltage VF ⎯ ⎯ V Leakage Current (Note 1) Total Capacitance Reverse Recovery Time Notes: IR CT trr ⎯ ⎯ ⎯ ⎯ 2.4 ⎯ nA nA pF μs 1. Short duration pulse test used to minimize self-heating effect. 2. Part mounted on FR-4 board with recommended pad layout, which can be found on page 3 or our website at http://www.diodes.com/datasheets/ap02001.pdf 3. No purposefully added lead. Halogen and Antimony Free. 4. Product manufactured with Data Code V9 (week 33, 2008) and newer are built with Green Molding Compound. Product manufactured prior to Date Code V9 are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants. BAV116W Document number: DS30291 Rev. 11 - 2 1 of 3 www.diodes.com June 2008 © Diodes Incorporated BAV116W IF, INSTANTANEOUS FORWARD CURRENT (mA) 300 1,000 PD, POWER DISSIPATION (mW) 250 RθJA = 500°C/W 100 200 10 150 1 TA = 150°C TA = 125°C 100 0.1 TA = 85°C TA = 25°C 50 0.01 0 0 25 50 75 100 125 TA, AMBIENT TEMPERATURE (°C) Fig. 1 Power Derating Curve 150 0.001 0 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 2 Typical Forward Characteristics 300 IR, INSTANTANEOUS REVERSE CURRENT (nA) 10 IF(AV), AVERAGE FORWARD CURRENT (mA) 250 200 1 150 100 50 0 0.1 0 50 100 TA, AMBIENT TEMPERATURE (° C) Fig. 3 Typical Reverse Characteristics 150 0 50 150 100 TA, AMBIENT TEMPERATURE (°C) Fig. 4 Forward Current Derating Curve 200 Ordering Information Part Number BAV116W-7-F Notes: (Note 5) Case SOD-123 Packaging 3000/Tape & Reel 5. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information 50 = Product Type Marking Code YM = Date Code Marking Y = Year (ex: T = 2006) M = Month (ex: 9 = September) 50 Date Code Key Year Code Month Code 2000 L Jan 1 2001 M Feb 2 2002 N Mar 3 2003 P Apr 4 YM 2004 R May 5 2005 S Jun 6 2006 T Jul 7 2007 U 2008 V Aug 8 2009 W Sep 9 2010 X Oct O 2011 Y Nov N 2012 Z Dec D BAV116W Document number: DS30291 Rev. 11 - 2 2 of 3 www.diodes.com June 2008 © Diodes Incorporated BAV116W Package Outline Dimensions A B C E H G D SOD-123 Dim Min Max Typ A 3.55 3.85 3.65 B 2.55 2.85 2.65 C 1.40 1.70 1.55 D 1.00 1.35 1.05 E 0.55 ⎯ ⎯ G 0.25 0.40 0.30 H 0.10 0.15 0.11 J ⎯ 0.10 0.05 0 8° α ⎯ All Dimensions in mm Suggested Pad Layout C Dimensions Value (in mm) Z X 4.9 2.5 0.7 1.2 3.7 G X Y C Y G Z IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. BAV116W Document number: DS30291 Rev. 11 - 2 3 of 3 www.diodes.com June 2008 © Diodes Incorporated
