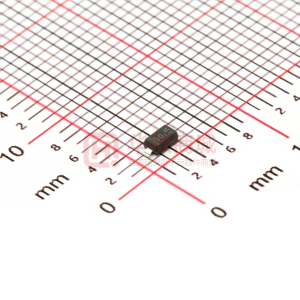

BAV116W

SPICE MODEL: BAV116W Lead-free BAV116W SURFACE MOUNT LOW LEAKAGE DIODE Features · · · Surface Mount Package Ideally Suited for Automatic Insertion Very Low Leakage Current Lead Free/RoHS Compliant (Note 3) Dim A B H G D SOD-123 Min 3.55 2.55 1.40 — 0.45 0.25 — 0° Max 3.85 2.85 1.70 1.35 0.65 — 0.10 8° Mechanical Data · · · · · · · · · Case: SOD-123 Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020C Terminals: Solderable per MIL-STD-202, Method 208 Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe) Polarity: Cathode Band Marking: Date Code and Type Code, See Page 3 Type Code: 50 Weight: 0.01 grams (approximate) C A B J C D E 0.55 Typical 0.11 Typical E G H J a All Dimensions in mm Maximum Ratings @ TA = 25°C unless otherwise specified Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Forward Continuous Current Repetitive Peak Forward Current Non-Repetitive Peak Forward Surge Current @ t = 1.0ms @ t = 1.0ms @ t = 1.0s Power Dissipation (Note 2) Thermal Resistance Junction to Ambient Air (Note 2) Operating and Storage Temperature Range Symbol VRRM VRWM VR VR(RMS) IFM IFRM IFSM Pd RqJA Tj , TSTG Value 130 90 215 500 4.0 1.0 0.5 250 500 -65 to +150 Unit V V mA mA A mW °C/W °C Electrical Characteristics Characteristic Reverse Breakdown Voltage (Note 1) @ TA = 25°C unless otherwise specified Symbol V(BR)R Min 130 130 Typ ¾ ¾ ¾ Max ¾ ¾ 0.90 1.0 1.1 1.25 1.0 5.0 80 5 3.0 Unit V Test Condition IR = 100mA IR = 100mA, Tj =125°C IF = 1.0mA, Tj = 25°C IF = 10mA, Tj = 25°C IF = 50mA, Tj = 25°C IF = 150mA, Tj = 25°C IF = 10mA, Tj = 125° VR = 75V, Tj = 25°C VR = 75V, Tj = 125°C VR = 0, f = 1.0MHz IF = IR = 10mA, Irr = 0.1 x IR, RL = 100W Forward Voltage VF ¾ V Leakage Current (Note 1) Total Capacitance Reverse Recovery Time Notes: 1. 2. 3. IR CT trr ¾ ¾ ¾ ¾ 2.4 ¾ nA nA pF ms Short duration pulse test used to minimize self-heating effect. Part mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. No purposefully added lead. DS30291 Rev. 8 - 2 1 of 3 www.diodes.com BAV116W ã Diodes Incorporated 300 300 Device mounted on an FR4 printed-circuit board PD, POWER DISSIPATION (mW) 250 200 IF, FORWARD CURRENT (mA) 250 200 150 150 100 100 50 50 0 0 0 25 50 75 100 125 150 0 50 100 150 200 TA, AMBIENT TEMPERATURE (°C) Fig. 1 Power Derating Curve TA, AMBIENT TEMPERATURE (° C) Fig. 2 Current Derating Curve IF, INSTANTANEOUS FORWARD CURRENT (mA) 1000 10 VR = 75V 100 10 IR, REVERSE CURRENT (nA) 1 1.0 0.1 0.01 0 0.4 0.8 1.2 1.6 2.0 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 3 Typical Forward Characteristics 0.1 0 50 100 150 200 TA, AMBIENT TEMPERATURE (° C) Fig. 4 Typical Reverse Characteristics Ordering Information Device BAV116W-7-F Notes: (Note 4) Packaging SOD-123 Shipping 3000/Tape & Reel 4. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. DS30291 Rev. 8 - 2 2 of 3 www.diodes.com BAV116W ÓDiodes Incorporated Marking Information 50 Date Code Key Year Code Month Code 2000 L 2001 M Jan 1 2002 N Feb 2 2003 P Mar 3 2004 R Apr 4 YM 2005 S May 5 50 = Product Type Marking Code YM = Date Code Marking Y = Year (ex: T = 2006) M = Month (ex: 9 = September) 2006 T Jun 6 2007 U Jul 7 2008 V Aug 8 2009 W Sep 9 2010 X Oct O 2011 Y Nov N 2012 Z Dec D IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. DS30291 Rev. 8 - 2 3 of 3 www.diodes.com BAV116W ÓDiodes Incorporated
