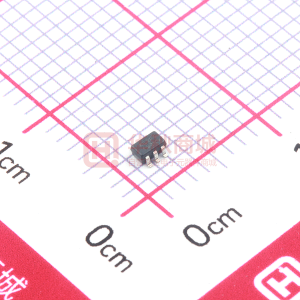

BAV199DW

BAV199DW QUAD SURFACE MOUNT LOW LEAKAGE DIODE SPICE MODEL: BAV199DW Features NEW PRODUCT · · Surface Mount Package Ideally Suited for Automatic Insertion Very Low Leakage Current SOT-363 A Dim A BC Min 0.10 1.15 2.00 0.30 1.80 1.80 ¾ 0.90 0.25 0.10 0° Max 0.30 1.35 2.20 0.40 2.20 2.20 0.10 1.00 0.40 0.25 8° B C D F M Mechanical Data · · · · · · · · Case: SOT-363, Molded Plastic Case material - UL Flammability Rating 94V-0 Moisture sensitivity: Level 1 per J-STD-020A Terminals: Solderable per MIL-STD-202, Method 208 Terminals: Finish - Matte Tin (Note 1) Solderable per MIL-STD-202, Method 208 Polarity: See Diagram Marking: K52 & Date Code (See Page 2) Weight: 0.008 grams (approx.) G H K 0.65 Nominal G H J K L M J D F L AC 1 C2 A2 A1 C1 AC 2 a TOP VIEW All Dimensions in mm Maximum Ratings @ TA = 25°C unless otherwise specified Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Forward Continuous Current (Note 2) Repetitive Peak Forward Current (Note 2) Non-Repetitive Peak Forward Surge Current @ t = 1.0ms @ t = 1.0ms @ t = 1.0s Power Dissipation (Note 2) Thermal Resistance Junction to Ambient Air (Note 2) Operating and Storage Temperature Range Single diode Double diode Symbol VRRM VRWM VR VR(RMS) IFM IFRM IFSM Pd RqJA Tj , TSTG BAV199DW 85 60 160 140 500 4.0 1.0 0.5 200 625 -65 to +150 Unit V V mA mA A mW °C/W °C Electrical Characteristics Characteristic Reverse Breakdown Voltage (Note 3) Forward Voltage (Note 3) @ TA = 25°C unless otherwise specified Symbol V(BR)R VF Min 85 ¾ ¾ ¾ ¾ Typ ¾ ¾ ¾ 2 ¾ Max ¾ 0.90 1.0 1.1 1.25 5.0 80 ¾ 3.0 Unit V V nA nA pF ms Test Condition IR = 100mA IF = 1.0mA IF = 10mA IF = 50mA IF = 150mA VR = 75V VR = 75V, Tj = 150°C VR = 0, f = 1.0MHz IF = IR = 10mA, Irr = 0.1 x IR, RL = 100W Leakage Current (Note 3) Total Capacitance Reverse Recovery Time IR CT trr Notes: 1. If lead-bearing terminal plating is required, please contact your Diodes Inc. sales representative for availability and minimum order details. 2. Part mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. 3. Short duration test pulse to minimize self-heating effect. DS30417 Rev. 1 - 2 1 of 2 www.diodes.com BAV199DW ã Diodes Incorporated 300 300 Device mounted on an FR4 printed-circuit board NEW PRODUCT PD, POWER DISSIPATION (mW) IF, FORWARD CURRENT (mA) 250 250 200 200 150 150 Single diode loaded 100 100 50 50 0 Double diode loaded 0 0 25 50 75 100 125 150 0 50 100 150 200 TA, AMBIENT TEMPERATURE (°C) Fig. 1 Power Derating Curve TA, AMBIENT TEMPERATURE (° C) Fig. 2 Current Derating Curve IF, INSTANTANEOUS FORWARD CURRENT (mA) 1000 10 VR = 75V 100 10 IR, REVERSE CURRENT (nA) 1 1.0 0.1 0.01 0 1 2 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 3 Typical Forward Characteristics 0.1 0 50 100 150 200 TA, AMBIENT TEMPERATURE (° C) Fig. 4 Typical Reverse Characteristics Ordering Information (Note 4) Device BAV199DW-7 Notes: Packaging SOT-363 Shipping 3000/Tape & Reel 4. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information K52 = Product Type Marking Code YM = Date Code Marking Y = Year ex: P = 2003 M = Month ex: 9 = September K52 YM Date Code Key Year Code Month Code Jan 1 Feb 2 2003 P March 3 YM K52 2004 R Apr 4 5 2005 S May Jun 6 2006 T Jul 7 Aug 8 2007 U Sep 9 2008 V Oct O Nov N 2009 W Dec D DS30417 Rev. 1 - 2 2 of 2 www.diodes.com BAV199DW
