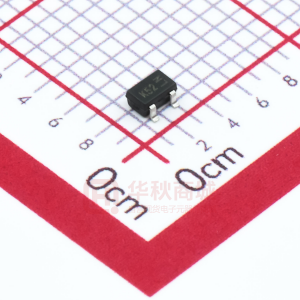

BAV199W-7

BAV199W-7

  • 厂商:

    DIODES

  • 封装:

  • 描述:

    BAV199W-7 - DUAL SURFACE MOUNT LOW LEAKAGE DIODE - Diodes Incorporated

  • 数据手册
  • 价格&库存
BAV199W-7 数据手册
BAV199W DUAL SURFACE MOUNT LOW LEAKAGE DIODE Please click here to visit our online spice models database. Features • • • • Surface Mount Package Ideally Suited for Automated Insertion Very Low Leakage Current Lead Free By Design/RoHS Compliant (Note 3) "Green” Device (Note 4) Mechanical Data • • • • • • • • SOT-323 Case: SOT-323 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020D Terminals: Finish ⎯ Matte Tin Finish annealed over Alloy 42 leadframe. Solderable per MIL-STD-202, Method 208 Polarity: See Diagram Marking Information: See Page 2 Ordering Information: See Page 2 Weight: 0.006 grams (approximate) TOP VIEW TOP VIEW Internal Schematic Maximum Ratings @TA = 25°C unless otherwise specified Symbol VRRM VRWM VR VR(RMS) Single diode Double diode @ t = 1.0μs @ t = 1.0ms @ t = 1.0s IFM IFRM IFSM Value 85 60 160 140 500 4.0 1.0 0.5 Unit V V mA mA A Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Forward Continuous Current (Note 2) Repetitive Peak Forward Current (Note 2) Non-Repetitive Peak Forward Surge Current Thermal Characteristics Characteristic Power Dissipation (Note 2) Thermal Resistance Junction to Ambient Air (Note 2) Operating and Storage Temperature Range Symbol PD RθJA TJ , TSTG Value 200 625 -65 to +150 Unit mW °C/W °C Electrical Characteristics Characteristic Reverse Breakdown Voltage (Note 1) Forward Voltage @TA = 25°C unless otherwise specified Symbol V(BR)R VF Min 85 ⎯ Typ ⎯ ⎯ Max ⎯ 0.90 1.0 1.1 1.25 5.0 80 ⎯ 3.0 Unit V V nA nA pF μs Test Condition IR = 100μA IF = 1.0mA IF = 10mA IF = 50mA IF = 150mA VR = 75V VR = 75V, TJ = 150°C VR = 0, f = 1.0MHz IF = IR = 10mA, Irr = 0.1 x IR, RL = 100Ω Leakage Current (Note 1) Total Capacitance Reverse Recovery Time Notes: 1. 2. 3. 4. IR CT trr ⎯ ⎯ ⎯ ⎯ 2 ⎯ Short duration pulse test used to minimize self-heating effect. Part mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. No purposefully added lead. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php. BAV199W Document number: DS30462 Rev. 6 - 2 1 of 3 www.diodes.com March 2008 © Diodes Incorporated BAV199W IF, INSTANTANEOUS FORWARD CURRENT (mA) 300 PD, POWER DISSIPATION (mW) 250 1,000 100 200 10 150 1.0 100 50 0.1 0 0 25 50 75 100 125 150 TA, AMBIENT TEMPERATURE (°C) Fig. 1 Power Derating Curve, Total Package 0.01 2 0 1 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 2 Typical Forward Characteristics, Per Element 200 180 IR, INSTANTANEOUS REVERSE CURRENT (nA) 10 IF, FORWARD CURRENT (mA) 160 140 120 100 80 60 40 20 1 0.1 0 50 100 150 200 TA, AMBIENT TEMPERATURE (°C) Fig. 3 Typical Reverse Characteristics, Per Element 0 0 50 100 150 200 TA, AMBIENT TEMPERATURE (°C) Fig. 4 Current Derating Curve, Per Element Ordering Information Part Number BAV199W-7 Notes: (Note 5) Case SOT-323 Packaging 3000/Tape & Reel 5. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information K52= Product Type Marking Code YM = Date Code Marking Y = Year ex: T = 2006 M = Month ex: 9 = September K52 Date Code Key Year Code Month Code 2004 R Jan 1 Feb 2 2005 S Mar 3 2006 T Apr 4 YM 2007 U May 5 2008 V Jun 6 Jul 7 2009 W Aug 8 2010 X Sep 9 Oct O 2011 Y Nov N 2012 Z Dec D BAV199W Document number: DS30462 Rev. 6 - 2 2 of 3 www.diodes.com March 2008 © Diodes Incorporated BAV199W Package Outline Dimensions A TOP VIEW BC G H K M J D F L SOT-323 Dim Min Max A 0.25 0.40 B 1.15 1.35 C 2.00 2.20 D 0.65 Nominal F 0.30 0.40 G 1.20 1.40 H 1.80 2.20 J 0.0 0.10 K 0.90 1.00 L 0.25 0.40 M 0.10 0.18 0° 8° α All Dimensions in mm Suggested Pad Layout Y Z G C X E Dimensions Value (in mm) Z 2.8 G 1.0 X 0.7 Y 0.9 C 1.9 E 0.65 IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. BAV199W Document number: DS30462 Rev. 6 - 2 3 of 3 www.diodes.com March 2008 © Diodes Incorporated
