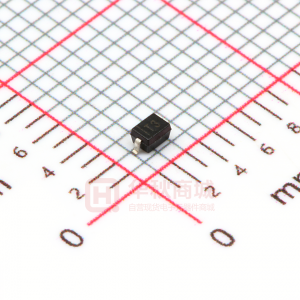

BAV21W

BAV21W

  • 厂商:

    DIODES

  • 封装:

  • 描述:

    BAV21W - SURFACE MOUNT SWITCHING DIODE - Diodes Incorporated

  • 数据手册
  • 价格&库存
BAV21W 数据手册
SPICE MODELS: BAV19W BAV20W BAV21W BAV19W - BAV21W Lead-free SURFACE MOUNT SWITCHING DIODE Features · · · · · · · · · · · · · · · · Fast Switching Speed Surface Mount Package Ideally Suited for Automatic Insertion For General Purpose Switching Applications High Conductance Lead Free/RoHS Compliant (Note 3) Qualified to AEC-Q101 Standards for High Reliability D G SOD-123 Dim A B H Min 3.55 2.55 1.40 — 0.45 0.25 — 0° Max 3.85 2.85 1.70 1.35 0.65 — 0.10 8° Mechanical Data Case: SOD-123 Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020C Terminals: Solderable per MIL-STD-202, Method 208 Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe) Polarity: Cathode Band Marking: Date Code and Type Code, See Page 2 Type Code: BAV19W: A8 or T2 or T3 BAV20W: T2 or T3 BAV21W: T3 Ordering Information: See Page 3 Weight: 0.01 grams (approximate) @ TA = 25°C unless otherwise specified Symbol VRM VRRM VRWM VR VR(RMS) IFM IO IFSM IFRM Pd RqJA Tj , TSTG J C D A B E E 0.55 Typical 0.11 Typical C G H J a All Dimensions in mm Maximum Ratings Characteristic Non-Repetitive Peak Reverse Voltage Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Forward Continuous Current Average Rectified Output Current Non-Repetitive Peak Forward Surge Current @ t = 1.0ms @ t = 1.0s Repetitive Peak Forward Surge Current Power Dissipation (Note 2) Thermal Resistance Junction to Ambient Air (Note 2) Operating and Storage Temperature Range BAV19W 120 100 71 BAV20W 200 150 106 400 200 2.5 0.5 625 250 500 -65 to +150 BAV21W 250 200 141 Unit V V V mA mA A mA mW °C/W °C Electrical Characteristics @ TA = 25°C unless otherwise specified Characteristic Reverse Breakdown Voltage (Note 1) BAV19W BAV20W BAV21W Symbol V(BR)R VFM IRM CT trr Min 120 200 250 ¾ ¾ ¾ ¾ Max ¾ 1.0 1.25 100 15 5.0 50 Unit V V nA mA pF ns Test Condition IR = 100mA IF = 100mA IF = 200mA Tj = 25°C Tj = 100°C VR = 0, f = 1.0MHz IF = IR = 30mA, Irr = 0.1 x IR, RL = 100W Forward Voltage Peak Reverse Current @ Rated DC Blocking Voltage (Note 1) Total Capacitance Reverse Recovery Time Notes: 1. Short duration pulse test used to minimize self-heating effect. 2. Part mounted on FR-4 PC board with minimum recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. 3. No purposefully added lead. DS12024 Rev. 16 - 2 1 of 3 www.diodes.com BAV19W - BAV21W @Diodes Incorporated 300 Note 2 250 200 IF, INSTANTANEOUS FORWARD CURRENT (A) 1 Pd, POWER DISSIPATION (mW) 0.1 150 TA = -40ºC TA = 0ºC 100 50 0 0 25 50 75 100 125 150 0.01 TA = 25ºC TA = 75ºC TA = 125ºC TA = 150ºC 0.001 0 0.2 0.8 0.4 1.0 1.2 0. 6 1.4 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 2 Typical Forward Characteristics T , AMBIENT TEMPERATURE (ºC) A Fig. 1 Power Derating Curve 100 TA = 150ºC TA = 125ºC 4.0 3.5 f = 1.0MHz CT, TOTAL CAPACITANCE (pF) 200 10 3.0 2.5 2.0 1.5 1.0 0.5 0.0 1 TA = 75ºC 0.1 TA = 25ºC 0.01 TA = 0ºC 0.001 TA = -40ºC 0.0001 0 50 100 150 250 VR, INSTANTANEOUS REVERSE VOLTAGE (V) Fig. 3 Typical Reverse Characteristics 0 10 20 30 40 VR, REVERSE VOLTAGE (V) Fig. 4 Typical Capacitance vs. Reverse Voltage DS12024 Rev. 16 - 2 2 of 3 www.diodes.com BAV19W - BAV21W Ordering Information (Note 4) Device BAV19W-7-F BAV20W-7-F BAV21W-7-F Notes: Packaging SOD-123 SOD-123 SOD-123 Shipping 3000/Tape & Reel 3000/Tape & Reel 3000/Tape & Reel 4. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information XX = Product Type Marking Code, See Page 1 YM = Date Code Marking Y = Year (ex: N = 2002) M = Month (ex: 9 = September) XX Date Code Key Year Code Year Code 1998 J 2010 X 1999 K 2011 Y 2000 L 2012 Z 2001 M YM 2002 N 2003 P 2004 R 2005 S 2006 T 2007 U 2008 V 2009 W Month Code Jan 1 Feb 2 March 3 Apr 4 May 5 Jun 6 Jul 7 Aug 8 Sep 9 Oct O Nov N Dec D IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. DS12024 Rev. 16 - 2 3 of 3 www.diodes.com BAV19W - BAV21W
BAV21W 价格&库存

很抱歉,暂时无法提供与“BAV21W”相匹配的价格&库存,您可以联系我们找货

免费人工找货
BAV21W
  •  国内价格
  • 1+0.05244
  • 30+0.05054
  • 100+0.04674
  • 500+0.04294
  • 1000+0.04104

库存:600

BAV21W
    •  国内价格
    • 1+0.04752
    • 100+0.04435
    • 300+0.04118
    • 500+0.03801
    • 2000+0.03643
    • 5000+0.03548

    库存:2575

    BAV21W
      •  国内价格
      • 1+0.05849
      • 100+0.05459
      • 300+0.05069
      • 500+0.0468
      • 2000+0.04485
      • 5000+0.04368

      库存:2650

      BAV21W
      •  国内价格
      • 50+0.05395
      • 150+0.04568
      • 1000+0.0374
      • 5000+0.03409

      库存:4810

      BAV21W
        •  国内价格
        • 5+0.04142
        • 20+0.04066
        • 100+0.03914

        库存:10

        BAV21W
          •  国内价格
          • 1+0.07392
          • 100+0.06912
          • 300+0.06432
          • 500+0.05952
          • 2000+0.05712
          • 5000+0.05568

          库存:1304

          BAV21W
          •  国内价格
          • 1+0.08266
          • 100+0.07719
          • 300+0.07172
          • 500+0.06626
          • 2000+0.06352
          • 5000+0.06188

          库存:4441

          BAV21W
            •  国内价格
            • 1+0.04649
            • 100+0.04339
            • 300+0.04029
            • 500+0.0372
            • 2000+0.03565
            • 5000+0.03472

            库存:14

            BAV21W
            •  国内价格
            • 5+0.0646
            • 20+0.0589
            • 100+0.0532
            • 500+0.0475
            • 1000+0.04484
            • 2000+0.04294

            库存:2423

            BAV21W
            •  国内价格
            • 20+0.0441
            • 200+0.0411
            • 500+0.0381
            • 1000+0.0351
            • 3000+0.0336
            • 6000+0.0315

            库存:8528
