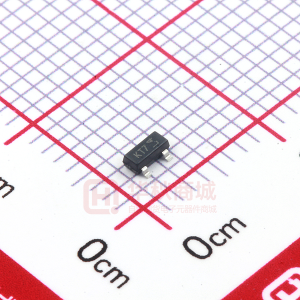

BAV23A-7-F

BAV23A/C/S SURFACE MOUNT SWITCHING DIODE Please click here to visit our online spice models database. Features • • • • • • Fast Switching Speed Surface Mount Package Ideally Suited for Automated Insertion For General Purpose Switching Applications High Conductance Lead, Halogen and Antimony Free, RoHS Compliant "Green" Device (Notes 3 and 4) Qualified to AEC-Q101 Standards for High Reliability Mechanical Data • • • • • • • • SOT-23 NEW PROD U CT Case: SOT-23 Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020D Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe). Polarity: See Diagrams Below Marking Information: See Page 2 Ordering Information: See Page 2 Weight: 0.008 grams (approximate) TOP VIEW BAV23A BAV23C BAV23S Maximum Ratings @TA = 25°C unless otherwise specified Symbol VRRM VRWM VR VR(RMS) IFM @ t = 1.0μs @ t = 100μs @ t = 10ms IFSM IFRM Value 250 200 141 400 9.0 3.0 1.7 625 Unit V V V mA A mA Characteristic Repetitive Peak Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Forward Continuous Current (Note 2) Non-Repetitive Peak Forward Surge Current Repetitive Peak Forward Surge Current (Note 2) Thermal Characteristics Characteristic Power Dissipation (Note 2) Thermal Resistance Junction to Ambient Air (Note 2) Operating and Storage Temperature Range Symbol PD RθJA TJ, TSTG Value 350 357 -65 to +150 Unit mW °C/W °C Electrical Characteristics Characteristic Reverse Breakdown Voltage (Note 1) Forward Voltage (Note 1) @TA = 25°C unless otherwise specified Symbol V(BR)R VF IR CT trr Min 250 ⎯ ⎯ ⎯ ⎯ Max ⎯ 1.0 1.25 100 5.0 50 Unit V V nA μA pF ns Test Condition IR = 100μA IF = 100mA IF = 200mA TJ = 25°C TJ = 150°C VR = 0, f = 1.0MHz IF = IR = 30mA, Irr = 0.1 x IR, RL = 100Ω Reverse Current @ Rated DC Blocking Voltage (Note 1) Total Capacitance Reverse Recovery Time Notes: 1. 2. 3. 4. Short duration pulse test used to minimize self-heating effect. Part mounted on FR-4 board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. No purposefully added lead. Halogen and Antimony Free. Product manufactured with Data Code V9 (week 33, 2008) and newer are built with Green Molding Compound. Product manufactured prior to Date Code V9 are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants. BAV23A/C/S Document number: DS30042 Rev. 13 - 2 1 of 3 www.diodes.com May 2008 © Diodes Incorporated BAV23A/C/S IF, INSTANTANEOUS FORWARD CURRENT (A) 0 100 200 TA, AMBIENT TEMPERATURE (°C) Fig. 1 Power Derating Curve, Total Package 500 1 PD, POWER DISSIPATION (mW) 400 0.1 300 N EW PRODUCT 200 0.01 100 0 0.001 0 0.8 1.0 0.2 0.4 1.2 1.4 0. 6 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 2 Typical Forward Characteristics, Per Element 100 4.0 3.5 CT, TOTAL CAPACITANCE (pF) 150 200 250 50 100 VR, INSTANTANEOUS REVERSE VOLTAGE (V) Fig. 3 Typical Reverse Characteristics, Per Element 0 10 3.0 2.5 2.0 1.5 1.0 0.5 0.0 10 30 40 20 VR, DC REVERSE VOLTAGE (V) Fig. 4 Total Capacitance vs. Reverse Voltage, Per Element 0 1 0.1 0.01 0.001 0.0001 Ordering Information Part Number BAV23A-7-F BAV23C-7-F BAV23S-7-F Notes: (Note 5) Case SOT-23 SOT-23 SOT-23 Packaging 3000/Tape & Reel 3000/Tape & Reel 3000/Tape & Reel 5. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information XXX = Product Type Marking Code ex. KT7 = BAV23A KT6 = BAV23C KL31 = BAV23S YM = Date Code Marking Y = Year ex: N = 2002 M = Month ex: 9 = September 2006 T Jun 6 2007 U Jul 7 2008 V Aug 8 2009 W Sep 9 2010 X Oct O 2011 Y Nov N 2012 Z Dec D May 2008 © Diodes Incorporated XXX Date Code Key Year Code Month Code 2001 M Jan 1 2002 N Feb 2 2003 P Mar 3 2004 R Apr 4 2005 S May 5 BAV23A/C/S Document number: DS30042 Rev. 13 - 2 2 of 3 www.diodes.com YM BAV23A/C/S Package Outline Dimensions A TOP VIEW BC G H K M J D F L SOT-23 Dim Min Max A 0.37 0.51 B 1.20 1.40 C 2.30 2.50 D 0.89 1.03 F 0.45 0.60 G 1.78 2.05 H 2.80 3.00 J 0.013 0.10 K 0.903 1.10 L 0.45 0.61 M 0.085 0.180 0° 8° α All Dimensions in mm N EW PRODUCT Suggested Pad Layout Dimensions Value (in mm) Y Z C Z X Y C E X E 2.9 0.8 0.9 2.0 1.35 IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. BAV23A/C/S Document number: DS30042 Rev. 13 - 2 3 of 3 www.diodes.com May 2008 © Diodes Incorporated
