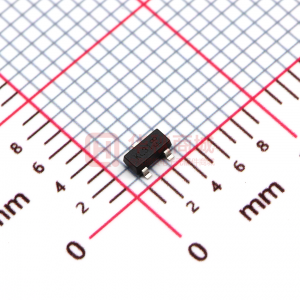

BAV23S

BAV23A/C/S SURFACE MOUNT SWITCHING DIODE Features · · · · · · · · · · · Fast Switching Speed Surface Mount Package Ideally Suited for Automatic Insertion For General Purpose Switching Applications High Conductance TOP VIEW NEW PRODUCT SOT-23 A Dim A B C Min 0.37 1.20 2.30 0.89 0.45 1.78 2.80 0.013 0.903 0.45 0.85 0° Max 0.51 1.40 2.50 1.03 0.60 2.05 3.00 0.10 1.10 0.61 0.80 8° B C D E G H J K L M a Mechanical Data Case: SOT-23, Molded Plastic Case material - UL Flammability Rating Classification 94V-0 Moisture sensitivity: Level 1 per J-STD-020A Terminals: Solderable per MIL-STD-202, Method 208 Polarity: See Diagrams Below Marking: See Diagrams Below & Page 2 Weight: 0.008 grams (approx.) E D G H K J L M All Dimensions in mm BAV23A Marking: KT7 BAV23C Marking: KT6 BAV23S Marking: KL31 Maximum Ratings @ TA = 25°C unless otherwise specified Characteristic Repetitive Peak Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Forward Continuous Current Non-Repetitive Peak Forward Surge Current @ t = 1.0ms @ t = 100ms @ t = 10ms Repetitive Peak Forward Surge Current (Note 2 ) Power Dissipation (Note 2) Thermal Resistance Junction to Ambient Air (Note 2) Operating and Storage Temperature Range VRRM VRWM VR VR(RMS) IFM IFSM IFRM Pd RqJA Tj , TSTG Value 250 200 141 400 9.0 3.0 1.7 625 350 357 -65 to +150 Unit V V V mA A mA mW °C/W °C Electrical Characteristics@ TA = 25°C unless otherwise specified Characteristic Forward Voltage (Note 1) Reverse Current @ Rated DC Blocking Voltage (Note 1) Total Capacitance Reverse Recovery Time Notes: Symbol VF IR CT trr Min ¾ ¾ Max 1.0 1.25 100 5.0 50 Unit V nA mA pF ns Test Condition IF = 100mA IF = 200mA Tj = 25°C Tj = 150°C VR = 0, f = 1.0MHz IF = IR = 30mA, Irr = 0.1 x IR, RL = 100W ¾ ¾ 1. Short duration test pulse used to minimize self-heating effect. 2. Part mounted on FR-4 board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. DS30042 Rev. 7 - 2 1 of 2 BAV23A/C/S IF, INSTANTANEOUS FORWARD CURRENT (mA) 1000 Tj = 25° C 100 NEW PRODUCT 100 10 10 1 1.0 0.1 0.1 0.01 0 1 2 0.01 0 100 200 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 1 Forward Characteristics Tj, JUNCTION TEMPERATURE (° C) Fig. 2 Leakage Current vs Junction Temperature Ordering Information Device BAV23A-7 BAV23C-7 BAV23S-7 Notes: (Note 3) Packaging SOT-23 Shipping 3000/Tape & Reel 3. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information XXX XXX = Product Type Marking Code (See Page 1) YM = Date Code Marking Y = Year ex: N = 2002 M = Month ex: 9 = September Date Code Key Year Code Month Code Jan 1 2001 M Feb 2 March 3 Apr 4 2002 N May 5 Jun 6 2003 P Jul 7 Aug 8 2004 R Sep 9 Oct O 2005 S Nov N Dec D DS30042 Rev. 7 - 2 YM 2 of 2 BAV23A/C/S
