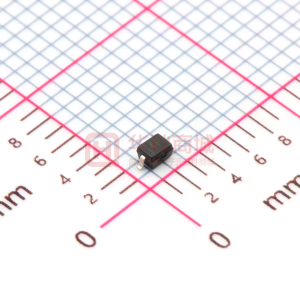

BAV3004WS

SPICE MODEL: BAV3004WS BAV3004WS Lead-free Green SURFACE MOUNT LOW LEAKAGE DIODE Features · · · · · · · · · · · · · · · Surface Mount Package Ideally Suited for Automatic Insertion Low Leakage Current Fast Switching Speed High Reverse Breakdown Voltage Lead Free By Design/RoHS Compliant (Note 3) "Green Device" (Note 4) H G A B D SOD-323 Dim A J Min 2.30 1.60 1.20 0.25 0.20 0.10 0° Max 2.70 1.80 1.40 0.35 0.40 0.15 8° Mechanical Data Case: SOD-323 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020C Terminals: Finish ¾ Matte Tin Finish annealed over Alloy 42 leadframe. Solderable per MIL-STD-202, Method 208 Polarity: Cathode Band Marking: Type Code, See Page 2 Type Code: 4P Ordering Information, See Page 2 Weight: 0.004 grams (approximate) B C D E G H J a 1.05 Typical C E 0.05 Typical All Dimensions in mm Maximum Ratings @ TA = 25°C unless otherwise specified Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Forward Continuous Current Repetitive Peak Forward Current Non-Repetitive Peak Forward Surge Current @ t = 1.0ms @ t = 1.0s Symbol VRRM VRWM VR VR(RMS) IFM IFRM IFSM Value 350 300 212 225 625 4.0 1.0 Unit V V V mA mA A Thermal Characteristics Characteristic Power Dissipation (Note 1) Thermal Resistance Junction to Ambient Air (Note 1) Operating and Storage Temperature Range Symbol Pd RqJA Tj , TSTG Value 200 625 -65 to +150 Unit mW °C/W °C Electrical Characteristics Characteristic Reverse Breakdown Voltage (Note 2) Forward Voltage Leakage Current (Note 2) Total Capacitance Reverse Recovery Time Notes: @ TA = 25°C unless otherwise specified Symbol V(BR)R VF IR CT trr Min 350 ¾ ¾ ¾ ¾ Typ ¾ ¾ 0.78 0.93 1.03 30 35 1.0 ¾ Max ¾ ¾ 0.87 1.0 1.25 100 100 5.0 50 Unit V V nA mA pF ns Test Condition IR = 150mA IF = 20mA IF = 100mA IF = 200mA VR = 240V, Tj = 25°C VR = 240V, Tj = 150°C VR = 0, f = 1.0MHz IF = IR = 30mA, Irr = 3.0mA, RL = 100W 1. Part mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. TA = 25°C. 2. Short duration pulse test used to minimize self-heating effect. 3. No purposefully added lead. 4. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php. DS30646 Rev. 3 - 2 1 of 3 www.diodes.com BAV3004WS ã Diodes Incorporated 300 IF, INSTANTANEOUS FORWARD CURRENT (mA) 1000 Note 1 Pd, POWER DISSIPATION (mW) 100 Tj = 150° C 200 10 Tj = 25° C 1.0 100 0.1 0 0 40 80 120 160 200 TA, AMBIENT TEMPERATURE (°C) Fig. 1 Power Derating Curve 0.01 0 400 800 1200 1600 2000 VF, INSTANTANEOUS FORWARD VOLTAGE (mV) Fig. 2 Typical Forward Characteristics 1.1 1000 Tj = 150° C CT, TOTAL CAPACITANCE (pF) 100 10 f = 1.0 MHz 1.0 Tj = 75° C 1.0 0.1 0.9 Tj = 25° C 0.8 0.01 0.001 0 50 100 150 200 250 300 350 VR, INSTANTANEOUS REVERSE VOLTAGE (V) Fig. 3 Typical Reverse Characteristics 0.7 0.01 0.1 1.0 10 100 VR, REVERSE VOLTAGE (V) Fig. 4 Typical Total Capacitance vs. Reverse Voltage Ordering Information Device BAV3004WS-7 Notes: 5. (Note 5) Packaging SOD-323 Shipping 3000/Tape & Reel For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information 4P 4P = Product Type Marking Code DS30646 Rev. 3 - 2 2 of 3 www.diodes.com BAV3004WS IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. DS30646 Rev. 3 - 2 3 of 3 www.diodes.com BAV3004WS
