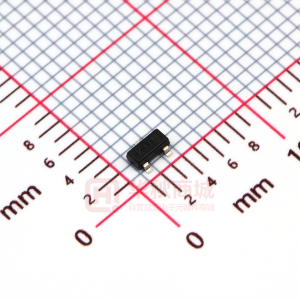

BAV70-7-F

BAV70 DUAL SURFACE MOUNT SWITCHING DIODE Please click here to visit our online spice models database. Features • • • • • • Fast Switching Speed Surface Mount Package Ideally Suited for Automated Insertion For General Purpose Switching Applications High Conductance Lead, Halogen and Antimony Free, RoHS Compliant "Green" Device (Notes 3 and 4) Qualified to AEC-Q101 Standards for High Reliability Mechanical Data • • • • • • • • • SOT-23 Case: SOT-23 Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020D Terminals: Solderable per MIL-STD-202, Method 208 Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe). Polarity: See Diagram Marking Information: See Page 2 Ordering Information: See Page 2 Weight: 0.008 grams (approximate) TOP VIEW TOP VIEW Internal Schematic Maximum Ratings @TA = 25°C unless otherwise specified Symbol VRM VRRM VRWM VR VR(RMS) IFM IO IFRM @ t = 1.0μs @ t = 1.0s IFSM Value 100 75 53 300 150 450 2.0 1.0 Unit V V V mA mA mA A Characteristic Non-Repetitive Peak Reverse Voltage Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Forward Continuous Current (Note 1) Average Rectified Output Current (Note 1) Repetitive Peak Forward Current Non-Repetitive Peak Forward Surge Current Thermal Characteristics Characteristic Power Dissipation (Note 1) Thermal Resistance Junction to Ambient Air (Note 1) Operating and Storage Temperature Range Symbol PD RθJA TJ , TSTG Value 350 357 -65 to +150 Unit mW °C/W °C Electrical Characteristics Characteristic Reverse Breakdown Voltage (Note 2) Forward Voltage @TA = 25°C unless otherwise specified Symbol V(BR)R VF Min 75 ⎯ Max ⎯ 0.715 0.855 1.0 1.25 2.5 50 30 25 2.0 4.0 Unit V V μA μA μA nA pF ns Test Condition IR = 2.5μA IF = 1.0mA IF = 10mA IF = 50mA IF = 150mA VR = 75V VR = 75V, TJ = 150°C VR = 25V, TJ = 150°C VR = 20V VR = 0, f = 1.0MHz IF = IR = 10mA, Irr = 0.1 x IR, RL = 100Ω Reverse Current (Note 2) Total Capacitance Reverse Recovery Time Notes: 1 2. 3. 4. IR CT trr ⎯ ⎯ ⎯ Part mounted on FR-4 board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. Short duration pulse test used to minimize self-heating effect. No purposefully added lead. Halogen and Antimony Free. Product manufactured with Data Code V9 (week 33, 2008) and newer are built with Green Molding Compound. Product manufactured prior to Date Code V9 are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants. BAV70 Document number: DS12006 Rev. 17 - 2 1 of 3 www.diodes.com May 2008 © Diodes Incorporated BAV70 IF, INSTANTANEOUS FORWARD CURRENT (A) 350 Note 1 1 300 PD, POWER DISSIPATION (mW) 250 200 150 100 50 0 0 0.1 0.01 0.001 1.0 0.5 0 1.5 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 2 Typical Forward Characteristics, Per Element 25 50 75 100 125 TA, AMBIENT TEMPERATURE (°C) Fig. 1 Power Derating Curve, Total Package 150 IR, INSTANTANEOUS REVERSE CURRENT (nA) 10,000 2.0 1.8 1,000 CT, TOTAL CAPACITANCE (pF) 1.6 1.4 1.2 1.0 0.8 0.6 0.4 0.2 100 10 1 0.1 0 60 80 100 20 40 VR, INSTANTANEOUS REVERSE VOLTAGE (V) Fig. 3 Typical Reverse Characteristics, Per Element 10 30 40 20 VR, DC REVERSE VOLTAGE (V) Fig. 4 Total Capacitance vs. Reverse Voltage, Per Element 0 0.0 Ordering Information Part Number BAV70-7-F Notes: (Note 5) Case SOT-23 Packaging 3000/Tape & Reel 5. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information KJJ = Product Type Marking Code YM = Date Code Marking Y = Year ex: N = 2002 M = Month ex: 9 = September KJJ Date Code Key Year Code Month Code 2000 L Jan 1 2001 M Feb 2 2002 N Mar 3 2003 P Apr 4 2004 R May 5 YM 2005 S Jun 6 2006 T 2007 U Jul 7 2008 V Aug 8 2009 W Sep 9 2010 X Oct O 2011 Y Nov N 2012 Z Dec D BAV70 Document number: DS12006 Rev. 17 - 2 2 of 3 www.diodes.com May 2008 © Diodes Incorporated BAV70 Package Outline Dimensions A TOP VIEW BC G H K M J D F L SOT-23 Dim Min Max A 0.37 0.51 B 1.20 1.40 C 2.30 2.50 D 0.89 1.03 F 0.45 0.60 G 1.78 2.05 H 2.80 3.00 J 0.013 0.10 K 0.903 1.10 L 0.45 0.61 M 0.085 0.180 0° 8° α All Dimensions in mm Suggested Pad Layout Y Z C Dimensions Value (in mm) Z X Y C E X E 2.9 0.8 0.9 2.0 1.35 IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. BAV70 Document number: DS12006 Rev. 17 - 2 3 of 3 www.diodes.com May 2008 © Diodes Incorporated
