BAV99W

BAV99W

  • 厂商:

    DIODES

  • 封装:

  • 描述:

    BAV99W - DUAL SURFACE MOUNT SWITCHING DIODE - Diodes Incorporated

  • 数据手册
  • 价格&库存
BAV99W 数据手册
BAV99W DUAL SURFACE MOUNT SWITCHING DIODE Features · · · · Fast Switching Speed Ultra-small Surface Mount Package For General Purpose Switching Applications High Conductance SOT-323 A Dim A B C Min 0.25 1.15 2.00 0.30 1.20 1.80 0.0 0.90 0.25 0.10 0° Max 0.40 1.35 2.20 0.40 1.40 2.20 0.10 1.00 0.40 0.18 8° B C D E M G 0.65 Nominal Mechanical Data · · · · · · · Case: SOT-323, Molded Plastic Case Material - UL Flammability Rating 94V-0 Moisture sensitivity: Level 1 per J-STD-020A Terminals: Solderable per MIL-STD-202, Method 208 Polarity: See Diagram Marking: KJG (See Page 3) Weight: 0.006 grams (approx.) K J H G H J K L M D E L TOP VIEW a All Dimensions in mm Maximum Ratings @ TA = 25°C unless otherwise specified Characteristic Non-Repetitive Peak Reverse Voltage Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Forward Continuous Current (Note 1) Average Rectified Output Current (Note 1) Non-Repetitive Peak Forward Surge Current @ t = 1.0ms (Note 1) @ t = 1.0s Power Dissipation (Note 1) Thermal Resistance Junction to Ambient Air (Note 1) Operating and Storage Temperature Range Symbol VRM VRRM VRWM VR VR(RMS) IFM IO IFSM Pd RqJA Tj , TSTG Value 100 75 53 300 150 2.0 1.0 200 625 -65 to +150 Unit V V V mA mA A mW °C/W °C Electrical Characteristics Characteristic Reverse Breakdown Voltage (Note 2) @ TA = 25°C unless otherwise specified Symbol V(BR)R VF Min 75 ¾ Max ¾ 0.715 0.855 1.0 1.25 2.5 50 30 25 2.0 4.0 Unit V Test Condition IR= 2.5mA IF = 1.0mA IF = 10mA IF = 50mA IF = 150mA VR = 75V VR = 75V, Tj = 150°C VR = 25V, Tj = 150°C VR = 20V VR = 0, f = 1.0MHz IF = IR = 10mA, Irr = 0.1 x IR, RL = 100W Forward Voltage (Note 2) V mA mA mA nA pF ns Reverse Current (Note 2) Total Capacitance Reverse Recovery Time Notes: IR CT trr ¾ ¾ ¾ 1. Device mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. 2. Short duration test pulse used to minimize self-heating effect. DS30045 Rev. 2 - 2 1 of 3 www.diodes.com BAV99W IF, INSTANTANEOUS FORWARD CURRENT (A) IR, INSTANTANEOUS REVERSE CURRENT (nA) 1 10000 TA = 150ºC TA = 125ºC 1000 0.1 TA = 150ºC TA = 75ºC TA = 25ºC TA = 0ºC TA = -40ºC 100 TA = 75ºC 10 TA = 25ºC TA = 0ºC 0.01 1 TA = -40ºC 0.001 0 0.5 1.0 1.5 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 1 Forward Characteristics 2.0 1.8 CT, TOTAL CAPACITANCE (pF) 1.6 1.4 1.2 1.0 0.8 0.6 0.4 0.2 0.0 0 10 20 30 40 f = 1.0MHz 0.1 0 20 40 60 80 100 VR, INSTANTANEOUS REVERSE VOLTAGE (V) Fig. 2 Typical Reverse Characteristics 250 Pd, POWER DISSIPATION (mW) 200 150 100 50 0 0 100 TA, AMBIENT TEMPERATURE (° C) Fig. 4 Power Derating Curve, Total Package 200 VR, REVERSE VOLTAGE (V) Fig. 3 Typical Capacitance vs. Reverse Voltage DS30045 Rev. 2 - 2 2 of 3 www.diodes.com BAV99W Ordering Information Device BAV99W-7 Notes: (Note 3) Packaging SOT-323 Shipping 3000/Tape & Reel 3. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information KJG Date Code Key Year Code Month Code 2000 L Jan 1 2001 M Feb 2 March 3 2002 N KJG = Product Type Marking Code YM = Date Code Marking Y = Year ex: N = 2002 M = Month ex: 9 = September YM 2003 P Apr 4 2004 R 2005 S Jul 7 2006 T Aug 8 Sep 9 2007 U Oct O 2008 V Nov N 2009 W Dec D May 5 Jun 6 DS30045 Rev. 2 - 2 3 of 3 www.diodes.com BAV99W
BAV99W 价格&库存

很抱歉,暂时无法提供与“BAV99W”相匹配的价格&库存,您可以联系我们找货

免费人工找货
BAV99W
    •  国内价格
    • 20+0.09311
    • 200+0.08711
    • 500+0.0811
    • 1000+0.07509
    • 3000+0.07209
    • 6000+0.06788

    库存:2733

    BAV99W
      •  国内价格
      • 1+0.04147

      库存:1365

      BAV99W
      •  国内价格
      • 5+0.0645
      • 20+0.05882
      • 100+0.05313
      • 500+0.04743
      • 1000+0.04478
      • 2000+0.04288

      库存:1744

      BAV99WT
        •  国内价格
        • 50+0.07896
        • 500+0.07056
        • 5000+0.06496
        • 10000+0.06216
        • 30000+0.05936
        • 50000+0.05768

        库存:0

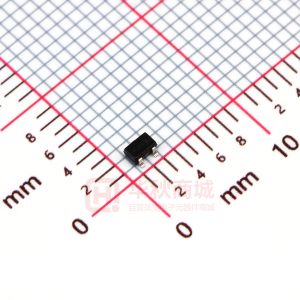

        BAV99WQ-7-F
        •  国内价格
        • 1+0.17654
        • 10+0.16296
        • 30+0.16025
        • 100+0.1521

        库存:29

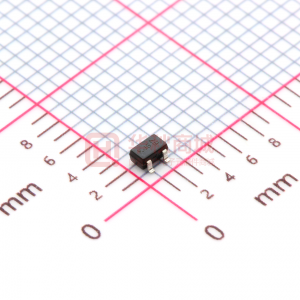

        BAV99W-7-F
        •  国内价格
        • 10+0.13933
        • 50+0.12884
        • 200+0.1201
        • 600+0.11136
        • 1500+0.10437
        • 3000+0.1

        库存:0

        BAV99W,115
        •  国内价格
        • 5+0.19372
        • 20+0.17692
        • 100+0.16012
        • 500+0.14333
        • 1000+0.13549
        • 2000+0.12989

        库存:2655

        BAV99WT1G
        •  国内价格
        • 5+0.16745
        • 20+0.15185
        • 100+0.13625
        • 500+0.12065
        • 1000+0.11337
        • 2000+0.10817

        库存:18006

        BAV99WT-TP
        •  国内价格
        • 5+0.20399
        • 20+0.18599
        • 100+0.16799
        • 500+0.14999
        • 1000+0.14159
        • 2000+0.13559

        库存:0

        SBAV99WT1G
        •  国内价格
        • 1+0.29257
        • 30+0.28249
        • 100+0.26231
        • 500+0.24213
        • 1000+0.23204

        库存:5
