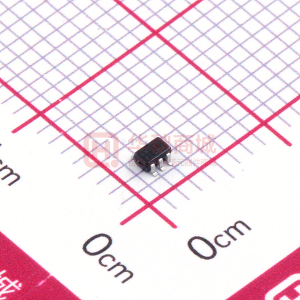

BC846AS

BC846AS DUAL NPN SURFACE MOUNT SMALL SIGNAL TRANSISTOR Please click here to visit our online spice models database. Features • • • • • Ideally Suited for Automatic Insertion For Switching and AF Amplifier Applications Complementary PNP Type Available (BC856AS) Lead Free/RoHS Compliant (Note 1) "Green" Device (Note 4 and 5) A SOT-363 BC NEW PRODUCT Dim A B C D M Min 0.10 1.15 2.00 0.30 1.80 ⎯ 0.90 0.25 0.10 0° Max 0.30 1.35 2.20 0.40 2.20 0.10 1.00 0.40 0.25 8° Mechanical Data • • • • • • • • Case: SOT-363 Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020C Terminals: Solderable per MIL-STD-202, Method 208 Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe). Terminal Connections: See Diagram Marking Information: See Page 3 Ordering & Date Code Information: See Page 3 Weight: 0.006 grams (approximate) H K 0.65 Nominal F H J K L M α J C1 B2 D E2 F L 6 5 4 • 1 E1 2 B1 3 C2 All Dimensions in mm Maximum Ratings Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Peak Collector Current Peak Emitter Current Power Dissipation @TA = 25°C unless otherwise specified Symbol VCBO VCEO VEBO IC ICM IEM Pd RθJA Tj, Tstg Value 80 65 6.0 100 200 200 200 625 -65 to +150 Unit V V V mA mA mA mW °C/W °C Characteristic (Note 2) (Note 2) Thermal Resistance, Junction to Ambient Operating and Storage Temperature Range Electrical Characteristics Characteristic Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage DC Current Gain Collector-Emitter Saturation Voltage Base-Emitter Saturation Voltage Base-Emitter Voltage Collector-Cutoff Current Gain Bandwidth Product Collector-Base Capacitance Notes: @TA = 25°C unless otherwise specified Symbol (Note 3) V(BR)CBO (Note 3) V(BR)CEO (Note 3) V(BR)EBO (Note 3) hFE (Note 3) (Note 3) (Note 3) (Note 3) VCE(SAT) VBE(SAT) VBE(ON) ICES ICBO ICBO fT CCB Min 80 65 6 110 — — 580 — — — — 100 — Typ — — — — 90 200 700 900 660 — — — — — 2.0 Max — — — 220 250 600 — 700 770 15 15 5.0 — — Unit V V V — mV mV mV nA nA µA MHz pF Test Condition IC = 10μA, IB = 0 IC = 10mA, IB = 0 IE = 1μA, IC = 0 VCE = 5.0V, IC = 2.0mA IC = 10mA, IB = 0.5mA IC = 100mA, IB = 5.0mA IC = 10mA, IB = 0.5mA IC = 100mA, IB = 5.0mA VCE = 5.0V, IC = 2.0mA VCE = 5.0V, IC = 10mA VCE = 80V VCB = 40V VCB = 30V, TA = 150°C VCE = 5.0V, IC = 10mA, f = 100MHz VCB = 10V, f = 1.0MHz 1. No purposefully added lead. 2. Device mounted on FR-4 PCB, pad layout as shown on page 3 or on Diodes Inc. suggested pad layout document AP02001, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. 3. Short duration pulse test used to minimize self-heating effect. 4. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php. 5. Product manufactured with Date Code UO (week 40, 2007) and newer are built with Green Molding Compound. Product manufactured prior to Date Code UO are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants. DS30833 Rev. 7 - 2 1 of 3 www.diodes.com BC846AS © Diodes Incorporated 250 0.16 PD, POWER DISSIPATION (mW) IC, COLLECTOR CURRENT (A) 200 0.12 150 N EW PRODUCT 0.08 100 0.04 50 0 0 0 75 25 50 100 125 TA, AMBIENT TEMPERATURE (°C) Fig. 1 Power Derating Curve (Note 2) 150 0 2 4 6 8 10 VCE, COLLECTOR EMITTER VOLTAGE (V) DS30833 Rev. 7 - 2 2 of 3 www.diodes.com BC846AS © Diodes Incorporated 20 200 FT, GAIN-BANDWIDTH PRODUCT (MHz) 16 CAPACITANCE (pF) 190 VCE = 5V 12 180 N EW PRODUCT 8 170 4 160 0 0 2 4 6 8 10 VR, REVERSE VOLTAGE (V) Fig. 7 Typical Capacitance Characteristics 150 0 10 20 30 40 50 60 70 80 90 100 IC, COLLECTOR CURRENT (mA) Fig. 8 Typical Gain-Bandwidth Product vs. Collector Current Ordering Information Device BC846AS-7 Notes: 6. (Note 6) Packaging SOT-363 Shipping 3000/Tape & Reel For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information KNS YM Data Code Key Year Code Month Code Jan 1 2007 U Feb 2 Mar 3 2008 V Apr 4 DS30833 Rev. 7 - 2 YM KNS 2009 W May 5 KNS = Product Type Marking Code YM = Date Code Marking Y = Year ex: U = 2007 M = Month ex: 9 = September 2010 X Jun 6 Jul 7 Aug 8 Sep 9 2011 Y Oct O Nov N 2012 Z Dec D IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. 3 of 3 www.diodes.com BC846AS © Diodes Incorporated
