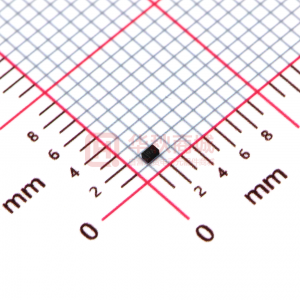

BZT52C5V6LP

BZT52C2V4LP - BZT52C39LP SURFACE MOUNT ZENER DIODE Please click here to visit our online spice models database. Features • • • • • Ultra-Small Leadless Surface Mount Package Ideally Suited for Automated Assembly Processes Lead Free By Design/RoHS Compliant (Note 1) "Green" Device (Note 2) Qualified to AEC-Q101 Standards for High Reliability Mechanical Data • • • • • • • • Case: DFN1006-2 Case Material: Molded Plastic, "Green" Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020D Terminal Connections: Cathode Dot (See Marking Information) Terminals: Finish ⎯ NiPdAu Over Copper Leadframe. Solderable per MIL-STD-202, Method 208 Marking Information: See Page 3 Ordering Information: See Page 3 Weight: 0.001 grams Bottom View Maximum Ratings Forward Voltage (Note 4) @TA = 25°C unless otherwise specified Characteristic @ IF = 10mA Symbol VF Value 0.9 Unit V Thermal Characteristics Characteristic Power Dissipation Thermal Resistance, Junction to Ambient Air Operating and Storage Temperature Range Notes: 1. 2. 3. 4. (Note 3) TA = 25°C (Note 3) TA = 25°C Symbol PD RθJA TJ, TSTG Value 250 500 -65 to +150 Unit mW °C/W °C No purposefully added lead. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php. Device mounted on FR-4 PCB with minimum recommended pad layout pattern as shown on page 4. Short duration pulse test used to minimize self-heating effect. BZT52C2V4LP - BZT52C39LP Document number: DS30506 Rev. 17 - 2 1 of 4 www.diodes.com August 2008 © Diodes Incorporated BZT52C2V4LP - BZT52C39LP Electrical Characteristics Type Number Marking Code @TA = 25°C unless otherwise specified Maximum Zener Impedance (Note 5) IZT mA 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 2 2 ZZT @ IZT ZZK @ IZK Ω 100 600 100 600 95 600 95 600 90 600 90 600 90 600 80 500 60 480 40 400 10 150 15 80 15 80 15 80 15 100 20 150 20 150 25 150 30 170 30 200 40 200 45 225 55 225 55 250 70 250 90 350 130 350 IZK mA 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.5 0.5 Maximum Reverse Current (Note 4) IR @ VR uA V 50 1.0 20 1.0 10 1.0 5 1.0 5 1.0 3 1.0 3 1.0 3 2.0 2.0 2.0 1.0 2.0 3.0 4.0 2.0 4.0 1.0 5.0 0.7 5.0 0.5 6.0 0.2 7.0 0.1 8.0 0.1 8.0 0.1 8.0 0.1 10.5 0.1 11.2 0.1 12.6 0.1 14.0 0.1 15.4 0.1 16.8 0.1 25.2 0.1 27.3 Typical Temperature Coefficient @ IZTC mV/°C Min Max -3.5 0 -3.5 0 -3.5 0 -3.5 0 -3.5 0 -3.5 0 -3.5 0 -3.5 0.2 -2.7 1.2 -2 2.5 0.4 3.7 1.2 4.5 2.5 5.3 3.2 6.2 3.8 7.0 4.5 8.0 5.4 9.0 6.0 10.0 7.0 11.0 9.2 13.0 10.4 14.0 12.4 16.0 14.4 18.0 16.4 20.0 18.4 22.0 36.5 45.5 36.8 49.8 Test Current IZTC mA 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 Zener Voltage Range (Note 4) VZ @ IZT Min (V) 2.20 2.5 2.8 3.1 3.4 3.7 4.0 4.4 4.8 5.2 5.8 6.4 7.0 7.7 8.5 9.4 10.4 11.4 12.4 13.8 15.3 16.8 18.8 20.8 22.8 34.0 37.0 BZT52C2V4LP BZT52C2V7LP BZT52C3V0LP BZT52C3V3LP BZT52C3V6LP BZT52C3V9LP BZT52C4V3LP BZT52C4V7LP BZT52C5V1LP BZT52C5V6LP BZT52C6V2LP BZT52C6V8LP BZT52C7V5LP BZT52C8V2LP BZT52C9V1LP BZT52C10LP BZT52C11LP BZT52C12LP BZT52C13LP BZT52C15LP BZT52C16LP BZT52C18LP BZT52C20LP BZT52C22LP BZT52C24LP BZT52C36LP BZT52C39LP Notes: 4. 5. WX W1 W2 W3 W4 W5 W6 W7 9Y 9A 9B 9C 9D 9E 9F 9G 9H 9J 9K 9L 9M 9N 9P 9R 9S 9W 9X Nom (V) 2.4 2.7 3.0 3.3 3.6 3.9 4.3 4.7 5.1 5.6 6.2 6.8 7.5 8.2 9.1 10 11 12 13 15 16 18 20 22 24 36 39 Max (V) 2.60 2.9 3.2 3.5 3.8 4.1 4.6 5.0 5.4 6.0 6.6 7.2 7.9 8.7 9.6 10.6 11.6 12.7 14.1 15.6 17.1 19.1 21.2 23.3 25.6 38.0 41.0 Short duration pulse test used to minimize self-heating effect. f = 1kHz. 50 C2V4LP C3V9LP C4V7LP 40 IZ, ZENER CURRENT (mA) 30 20 Test Current IZ 5.0mA 10 0 0 3 4 5 6 8 9 10 7 VZ, ZENER VOLTAGE (V) Fig. 2 Typical Zener Breakdown Characteristics 1 2 BZT52C2V4LP - BZT52C39LP Document number: DS30506 Rev. 17 - 2 2 of 4 www.diodes.com August 2008 © Diodes Incorporated BZT52C2V4LP - BZT52C39LP 30 C10LP C12LP C36LP C39LP IZ, ZENER CURRENT (mA) 20 C18LP C22LP IZ, ZENER CURRENT (mA) C15LP Test Current IZ 2.0mA 10 Test Current IZ 5.0mA 0 0 30 10 20 VZ, ZENER VOLTAGE (V) Fig. 3 Typical Zener Breakdown Characteristics VZ, ZENER VOLTAGE (V) Fig. 4 Typical Zener Breakdown Characteristics Ordering Information Part Number (Type Number)-7* (Note 6) Case DFN1006-2 Packaging 3000/Tape & Reel *Add “-7” to the appropriate type number in Electrical Characteristics Table (Page 2). Example: 6.2V Zener = BZT52C6V2LP-7. Notes: 6. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information xx = Product Type Marking Code (See Electrical Characteristics Table) Dot Denotes Cathode Side Package Outline Dimensions A DFN1006-2 Dim A1 D Min 0.47 0 0.45 0.95 0.55 ⎯ 0.20 0.05 Max 0.53 0.05 0.55 1.075 0.675 ⎯ 0.30 0.15 Typ 0.50 0.03 0.50 1.00 0.60 0.40 0.25 0.10 A A1 b D R E b E e L R L e All Dimensions in mm BZT52C2V4LP - BZT52C39LP Document number: DS30506 Rev. 17 - 2 3 of 4 www.diodes.com August 2008 © Diodes Incorporated BZT52C2V4LP - BZT52C39LP Suggested Pad Layout C X Dimensions Value (in mm) Z 1.1 G 0.3 X 0.7 Y 0.4 C 0.7 Y G Z IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. BZT52C2V4LP - BZT52C39LP Document number: DS30506 Rev. 17 - 2 4 of 4 www.diodes.com August 2008 © Diodes Incorporated
