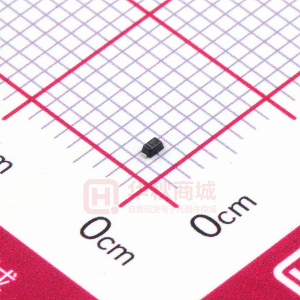

BZT52C9V1T-7

SPICE MODELS: BZT52C2V0T BZT52C2V4T BZT52C2V7T BZT52C3V0T BZT52C3V3T BZT52C3V6T BZT52C3V9T BZT52C4V3T BZT52C4V7T BZT52C5V1T BZT52C2V0T - BZT52C24T Lead-free Green SURFACE MOUNT ZENER DIODE BZT52C5V6T BZT52C6V2T BZT52C6V8T BZT52C7V5T BZT52C8V2T BZT52C9V1T BZT52C10T BZT52C11T BZT52C12T BZT52C13T BZT52C15T BZT52C16T BZT52C18T BZT52C20T BZT52C22T BZT52C24T Features NEW PRODUCT · · · · · Planar Die Construction Ultra-Small Surface Mount Package Ideally Suited for Automated Assembly Processes Lead Free By Design/RoHS Compliant (Note 1) "Green" Device (Note 2) CATHODE MARK SOD-523 Dim A B C D E Min 1.50 1.10 0.25 0.70 0.10 0.55 Max 1.70 1.30 0.35 0.90 0.20 0.65 Mechanical Data · · · · · · · · · Case Material: Molded Plastic, "Green" Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020C Terminal Connections: Cathode Band Terminals: Solderable per MIL-STD-202, Method 208 Terminals: Finish - Matte Tin annealed over Alloy 42 leadframe. Solderable per MIL-STD-202, Method 208 Marking & Type Code Information: See Electrical Specifications Table Ordering Information: See Page 3 Weight: 0.001 grams (approximate) MARKING CODE A B Case: SOD-523 XX C D E G G All Dimensions in mm Maximum Ratings Forward Voltage Power Dissipation (Note 3) @ TA = 25°C unless otherwise specified Symbol @ IF = 10mA VF Pd RqJA Tj, TSTG Value 0.9 150 833 -65 to +150 Unit V mW °C/W °C Characteristic Thermal Resistance, Junction to Ambient Air (Note 3) Operating and Storage Temperature Range Notes: 1. No purposefully added lead. 2. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php. 3. Part mounted on FR-4 board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. DS30502 Rev. 7 - 2 1 of 4 www.diodes.com BZT52C2V0T - BZT52C24T ã Diodes Incorporated Electrical Characteristics @ TA = 25°C unless otherwise specified Maximum Reverse Current (Note 4) IR uA 150 50 20 10 5.0 5.0 3.0 3.0 3.0 2.0 1.0 3.0 2.0 1.0 0.7 0.5 0.2 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 @ VR V 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 2.0 2.0 2.0 4.0 4.0 5.0 5.0 6.0 7.0 8.0 8.0 8.0 10.5 11.2 12.6 14.0 15.4 16.8 Typical Temperature Coefficient @ IZTC mV/°C Min -3.5 -3.5 -3.5 -3.5 -3.5 -3.5 -3.5 -3.5 -3.5 -2.7 -2 0.4 1.2 2.5 3.2 3.8 4.5 5.4 6.0 7.0 9.2 10.4 12.4 14.4 16.4 18.4 Max 0 0 0 0 0 0 0 0 0.2 1.2 2.5 3.7 4.5 5.3 6.2 7.0 8.0 9.0 10.0 11.0 13.0 14.0 16.0 18.0 20.0 22.0 NEW PRODUCT Type Number Marking Codes Zener Voltage Range (Note 4) VZ @ IZT Nom (V) 2.0 2.4 2.7 3.0 3.3 3.6 3.9 4.3 4.7 5.1 5.6 6.2 6.8 7.5 8.2 9.1 10 11 12 13 15 16 18 20 22 24 1.91 2.2 2.5 2.8 3.1 3.4 3.7 4.0 4.4 4.8 5.2 5.8 6.4 7.0 7.7 8.5 9.4 10.4 11.4 12.4 13.8 15.3 16.8 18.8 20.8 22.8 2.09 2.6 2.9 3.2 3.5 3.8 4.1 4.6 5.0 5.4 6.0 6.6 7.2 7.9 8.7 9.6 10.6 11.6 12.7 14.1 15.6 17.1 19.1 21.2 23.3 25.6 IZT 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 Maximum Zener Impedance (Note 5) ZZT @ IZT ZZK @ IZK W 100 100 100 95 95 90 90 90 80 60 40 10 15 15 15 15 20 20 25 30 30 40 45 55 55 70 600 600 600 600 600 600 600 600 500 480 400 150 80 80 80 100 150 150 150 170 200 200 225 225 250 250 IZK mA 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 Test Current IZTC mA 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 Min (V) Max (V) mA BZT52C2V0T BZT52C2V4T BZT52C2V7T BZT52C3V0T BZT52C3V3T BZT52C3V6T BZT52C3V9T BZT52C4V3T BZT52C4V7T BZT52C5V1T BZT52C5V6T BZT52C6V2T BZT52C6V8T BZT52C7V5T BZT52C8V2T BZT52C9V1T BZT52C10T BZT52C11T BZT52C12T BZT52C13T BZT52C15T BZT52C16T BZT52C18T BZT52C20T BZT52C22T BZT52C24T Notes: WY WX W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO 4. Short duration test pulse used to minimize self-heating effect. 5. f = 1kHz. DS30502 Rev. 7 - 2 2 of 4 www.diodes.com BZT52C2V0T - BZT52C24T 0.3 50 Tj = 25°C C2V7 C3V9 C5V6 C6V8 C6V2 NEW PRODUCT C3V3 C4V7 40 IZ, ZENER CURRENT (mA) PD, POWER DISSIPATION (W) C8V2 0.2 30 20 0.1 10 Test Current IZ 5.0mA 0 0 25 50 75 100 125 150 TA, AMBIENT TEMPERATURE (° C) Fig. 1 Power Derating Curve 0 0 1 3 4 5 6 8 9 7 VZ, ZENER VOLTAGE (V) Fig. 2 Zener Breakdown Characteristics 2 10 30 Tj = 25°C C10T C12T 1000 Tj = 25°C f = 1MHz IZ, ZENER CURRENT (mA) CT, TOTAL CAPACITANCE (pF) VR = 1V VR = 2V 20 C15T 100 VR = 1V C18T Test current IZ 2mA 10 Test current IZ 5mA C22T VR = 2V 10 1 10 100 0 0 10 20 30 VZ, ZENER VOLTAGE (V) Fig. 3 Zener Breakdown Characteristics 40 VZ, NOMINAL ZENER VOLTAGE (V) Fig. 4 Total Capacitance vs Nominal Zener Voltage Ordering Information Device (Type Number)-7* (Note 6) Packaging SOD-523 Shipping 3000/Tape & Reel * Add “-7” to the appropriate type number in Table 1 above example: 6.2V Zener = BZT52C6V2T-7. Notes: 6. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. DS30502 Rev. 7 - 2 3 of 4 www.diodes.com BZT52C2V0T - BZT52C24T Marking Information NEW PRODUCT XX Date Code Key Year Code Month Code Jan 1 Feb 2 Mar 3 XX = Product Type Marking Code (See Page 2) YM = Date Code Marking Y = Year (ex: T = 2006) M = Month (ex: 9 = September) YM 2006 T Apr 4 May 5 Jun 6 Jul 7 2007 U Aug 8 Sep 9 2008 V Oct O Nov N 2009 W Dec D IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. DS30502 Rev. 7 - 2 4 of 4 www.diodes.com BZT52C2V0T - BZT52C24T
