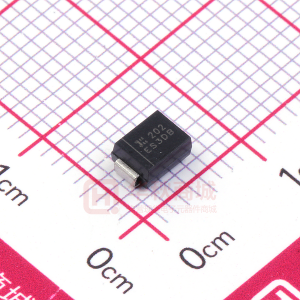

ES3DB-13-F

SPICE MODELS: ES3A ES3B ES3C ES3D ES3AB ES3BB ES3CB ES3DB ES3A/AB - ES3D/DB 3.0A SURFACE MOUNT SUPER-FAST RECTIFIER Features · · · · · · Glass Passivated Die Construction Super-Fast Recovery Time For High Efficiency Low Forward Voltage Drop and High Current Capability Surge Overload Rating to 100A Peak Ideally Suited for Automated Assembly Lead Free Finish/RoHS Compliant (Note 4) B Dim A SMB Min 3.30 4.06 1.96 0.15 5.00 0.10 0.76 2.00 Max 3.94 4.57 2.21 0.31 5.59 0.20 1.52 2.62 SMC Min 5.59 6.60 2.75 0.15 7.75 0.10 0.76 2.00 Max 6.22 7.11 3.18 0.31 8.13 0.20 1.52 2.62 A C B C D Mechanical Data · · · · · · · · · · Case: SMB/SMC Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020C Terminals: Lead Free Plating (Matte Tin Finish). Solderable per MIL-STD-202, Method 208 Polarity: Cathode Band or Cathode Notch Mounting Position: Any Ordering Information: See Page 3 Marking: Type Number, See Page 3 SMB Weight: 0.093 grams (approximate) SMC Weight: 0.21 grams (approximate) D J E G H H G E J All Dimensions in mm A, B, C, D, Suffix Designates SMC Package AB, BB, CB, DB Suffix Designates SMB Package Maximum Ratings and Electrical Characteristics Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Output Current @ TT = 100°C Non-Repetitive Peak Forward Surge Current 8.3ms Single half sine-wave Superimposed on Rated Load (JEDEC Method) Forward Voltage Peak Reverse Current at Rated DC Blocking Voltage Reverse Recovery Time (Note 3) Typical Total Capacitance (Note 2) Typical Thermal Resistance, Junction to Terminal (Note 1) Operating and Storage Temperature Range Notes: 1. 2. 3. 4 @ TA = 25°C unless otherwise specified Symbol VRRM VRWM VR VR(RMS) IO IFSM VFM IRM trr CT RqJT Tj, TSTG ES3A/AB 50 35 ES3B/BB 100 70 3.0 100 0.9 10 500 25 45 15 ES3C/CB 150 105 ES3D/DB 200 140 Unit V V A A V mA ns pF °C/W °C @ IF = 3.0A @ TA = 25°C @ TA = 125°C -65 to +150 Unit mounted on PC board with 5.0 mm2 (0.013 mm thick) copper pads as heat sink. Measured at 1.0MHz and applied reverse voltage of 4.0V DC. Measured with IF = 0.5A, IR = 1.0A, Irr = 0.25A. See Figure 5. RoHS revision 13.2.2003. Glass and High Temperature Solder Exemptions Applied, see EU Directive Annex Notes 5 and 7. DS14003 Rev. 10 - 2 1 of 3 www.diodes.com ES3A/AB - ES3D/DB ã Diodes Incorporated 6.0 IF, INSTANTANEOUS FORWARD CURRENT (A) 8.0 10 IO, AVERAGE RECTIFIED CURRENT (A) 1.0 4.0 0.1 2.0 0.01 0 0.4 0.8 1.2 1.6 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 2 Typical Forward Characteristics 25 50 75 100 125 150 175 TT, TERMINAL TEMPERATURE (° C) Fig. 1 Forward Current Derating Curve IFSM, PEAK FORWARD SURGE CURRENT (A) Single Half-Sine-Wave (JEDEC Method) 100 IR, INSTANTANEOUS REVERSE CURRENT (A) 120 1000 Tj = 125° C 80 60 40 100 10 Tj = 25° C 20 0 1 10 NUMBER OF CYCLES AT 60Hz Fig. 3 Surge Current Derating Curve 100 1.0 0 40 80 120 PERCENT OF RATED PEAK REVERSE VOLTAGE (%) Fig. 4 Typical Reverse Characteristics trr +0.5A Device Under Test (-) Pulse Generator (Note 2) 0A (+) 50V DC Approx -0.25A (-) Oscilloscope (Note 1) (+) -1.0A Set time base for 50/100 ns/cm Fig. 5 Reverse Recovery Time Characteristic and Test Circuit DS14003 Rev. 10 - 2 2 of 3 www.diodes.com ES3A/AB - ES3D/DB Ordering Information Device* ES3x-13-F ES3xB-13-F (Note 5) Packaging SMC SMB Shipping 3000/Tape & Reel 3000/Tape & Reel * x = Device type, e.g. ES3A-13-F (SMC package); ES3AB-13-F (SMB package). Notes: 5. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information XXX = Product type marking code, ex: ES3A (SMC package) XXXX = Product type marking code, ex: ES3AB (SMB package) = Manufacturers’ code marking YWW = Date code marking Y = Last digit of year ex: 2 for 2002 WW = Week code 01 to 52 YWW XXXX(X) IMPORTANT NOTICE Diodes, Inc. and its subsidiaries reserve the right to make changes without further notice to any product herein to make corrections, modifications, enhancements, improvements, or other changes. Diodes, Inc. does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT The products located on our website at www.diodes.com are not recommended for use in life support systems where a failure or malfunction of the component may directly threaten life or cause injury without the express written approval of Diodes Incorporated. DS14003 Rev. 10 - 2 3 of 3 www.diodes.com ES3A/AB - ES3D/DB
