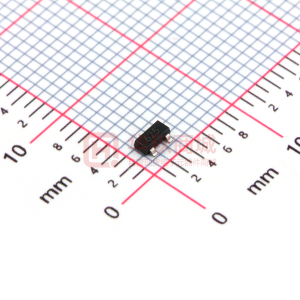

FMMT625TA

A Product Line of Diodes Incorporated FMMT625 150V NPN SILICON LOW SATURATION TRANSISTOR IN SOT23 Features • • • • • • • • VCEO = 150V IC = 1A 625mW Power dissipation Low Equivalent On Resistance Low Saturation Voltage hFE characterised up to 3.0A Lead, Halogen and Antimony Free, RoHS Compliant (Note 1) “Green” Devices (Note 2) Mechanical Data • • • • • • Case: SOT-23 Case material: molded Plastic. “Green” molding Compound. UL Flammability Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Matte Tin Finish Weight: 0.008 grams (Approximate) Applications • • • DC-DC Modules Power Management Functions Motor control and drive functions SOT-23 Device symbol Pinout – top view Ordering Information (Note 3) Product FMMT625TA Notes: Marking 625 Reel size (inches) 7 Tape width (mm) 8mm embossed Quantity per reel 3000 units 1. No purposefully added lead. 2. Devices with the PID number starting from PID0155145 are ‘Green’ products. Halogen and Antimony Free. 3. Diodes Incorporated‘s “Green” Policy can be found on our website at https://www.diodes.com. Marking Information 625 625 = Product Type Marking Code FMMT625 Document number: DS33237 Rev. 4 - 2 1 of 6 www.diodes.com October 2010 © Diodes Incorporated A Product Line of Diodes Incorporated FMMT625 Maximum Ratings @TA = 25°C unless otherwise specified Characteristic Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Peak Pulse Current (Note 4) Base Current Symbol VCBO VCEO VEBO IC ICM IB Value 150 150 5 1 3 500 Unit V V V A A mA Thermal Characteristics Characteristic Power Dissipation at TA = 25°C (Note 5) Operating and Storage Temperature Range Notes: Symbol PD TJ, TSTG Value 625 -55 to +150 Unit mW °C 4. Measured under pulsed conditions. Pulse width = 300µs. Duty cycle ≤ 2%. 5. For a device surface mounted on 25mm X 25mm FR4 PCB with high coverage of single sided 1 oz copper, in still air conditions Thermal Characteristics and Derating information Max Power Dissipation (W) 10 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0.0 0 20 40 60 80 100 120 140 160 IC Collector Current (A) 1 DC 1s 100ms 10ms 1ms 100µs Single Pulse T amb=25°C 100m 10m 100m 1 10 100 VCE Collector-Emitter Voltage (V) Temperature (°C) Safe Operating Area Thermal Resistance (°C/W) 200 Derating Curve 150 D=0.5 100 D=0.2 Single Pulse D=0.05 D=0.1 50 0 100µ 1m 10m 100m 1 10 100 1k Pulse Width (s) Transient Thermal Impedance FMMT625 Document number: DS33237 Rev. 4 - 2 2 of 6 www.diodes.com October 2010 © Diodes Incorporated A Product Line of Diodes Incorporated FMMT625 Electrical Characteristics @TA = 25°C unless otherwise specified Characteristic Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage (Note 6) Emitter-Base Breakdown Voltage Collector Cut-off Current Emitter Cut-off Current Collector Emitter Cut-off Current Static Forward Current Transfer Ratio (Note 6) Symbol V(BR)CBO V(BR)CEO V(BR)EBO ICBO IEBO ICES hFE Min 150 150 5 200 300 30 - Typ 300 175 8.3 400 450 45 15 26 110 180 0.85 0.74 135 6 160 1500 Max 100 100 100 - Unit V V V nA nA nA - Collector-Emitter Saturation Voltage (Note 6) Base-Emitter Saturation Voltage (Note 6) Base-Emitter Saturation Voltage (Note 6) Transition Frequency Collector Output Capacitance Turn-On Time Turn-Off Time Notes: VCE(sat) VBE(sat) VBE(on) fT Cobo t(on) t(off) - 50 200 300 1.0 1.0 10 - mV V V MHz pF ns ns 100 - Test Condition IC = 100µA IC = 10mA IE = 100µA VCB =130V VEB = 4V VCES =130V IC = 10mA, VCE = 10V IC = 200mA, VCE = 10V IC = 1A, VCE = 10V IC = 3A, VCE = 10V IC =0.1A, IB = 10mA IC =0.1A, IB = 1mA IC =1A, IB = 50mA IC =1A, IB = 50mA IC =1A, VCE = 10V IC = 50mA, VCE = 10V, f=100MHz VCB = 10V, f=1MHz VCC = 50V, IC = 500mA, IB1 = -IB2 = 50mA 6. Measured under pulsed conditions. Pulse width = 300µs. Duty cycle ≤ 2% FMMT625 Document number: DS33237 Rev. 4 - 2 3 of 6 www.diodes.com October 2010 © Diodes Incorporated A Product Line of Diodes Incorporated FMMT625 Typical Characteristics FMMT625 Document number: DS33237 Rev. 4 - 2 4 of 6 www.diodes.com October 2010 © Diodes Incorporated A Product Line of Diodes Incorporated FMMT625 Package Outline Dimensions E e b 3 leads e1 L1 E1 D A A1 L c Dim. Millimeters Min. Max. 1.12 0.10 0.50 0.20 3.04 Min. - Inches Max. 0.044 0.004 0.020 0.008 0.120 Dim. Millimeters Min. Max. Min. Inches Max. A A1 b c D e 0.01 0.30 0.085 2.80 e1 E E1 L L1 - 1.90 NOM 2.10 1.20 0.25 0.45 2.64 1.40 0.60 0.62 - 0.075 NOM 0.083 0.047 0.0098 0.018 0.104 0.055 0.0236 0.024 - 0.0004 0.012 0.003 0.110 0.95 NOM 0.037 NOM Note: Controlling dimensions are in millimeters. Approximate dimensions are provided in inches Suggested Pad Layout 0.95 0.037 2.0 0.079 0.9 0.035 0.8 0.031 mm inches FMMT625 Document number: DS33237 Rev. 4 - 2 5 of 6 www.diodes.com October 2010 © Diodes Incorporated A Product Line of Diodes Incorporated FMMT625 IMPORTANT NOTICE DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION). Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated website, harmless against all damages. Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel. Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized application. Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings noted herein may also be covered by one or more United States, international or foreign trademarks. LIFE SUPPORT Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express written approval of the Chief Executive Officer of Diodes Incorporated. As used herein: A. Life support devices or systems are devices or systems which: 1. are intended to implant into the body, or 2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the labeling can be reasonably expected to result in significant injury to the user. B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or to affect its safety or effectiveness. Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems. Copyright © 2010, Diodes Incorporated www.diodes.com FMMT625 Document number: DS33237 Rev. 4 - 2 6 of 6 www.diodes.com October 2010 © Diodes Incorporated
