A Product Line of Diodes Incorporated
FMMT718
S O T 2 3 PNP S I L IC O N P O W ER (SW ITCH ING) TRAN SISTOR
Please click here to visit our online spice models database.
Features
• • • • • • • 625mW POWER DISSIPATION IC CONT = 2.5A IC Up to 10A Peak Pulse Current Excellent hFE Characteristics Up To 10A (pulsed) Low Saturation Voltage E.g. 10mV Typ. Low equivalent on-resistance RCE(sat)=97mΩ at 1.5A Complementary part number FMMT618
Mechanical Data
• • • • • Case: SOT-23 UL Flammability Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Matte Tin Finish Weight: 0.008 grams (approximate)

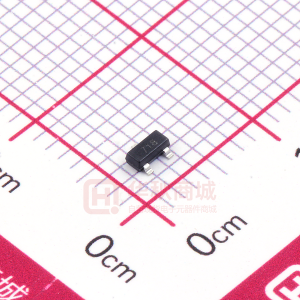

SOT-23
Top View
Device symbol
Pin Configuration
Ordering Information
Product FMMT718TA FMMT718TC Marking 718 718 Reel size (inches) 7 13 Tape width (mm) 8 8 Quantity per reel 3000 10000
Marking Information
718 = Product type Marking Code
FMMT718
Document Number DS31924 Rev. 2 - 2
1 of 7 www.diodes.com
August 2009
© Diodes Incorporated
A Product Line of Diodes Incorporated
FMMT718
S O T 2 3 PNP S I L IC O N P O W ER (SW ITCH ING) TRAN SISTOR
Maximum Ratings
@TA = 25°C unless otherwise specified Symbol VCBO VCEO VEBO IC ICM IB Value -20 -20 -5 -1.5 -6 -500 Unit V V V A A mA
Characteristic Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Peak Pulse Current (Note 1) Base Current
Thermal Characteristics
Characteristic Power Dissipation at TA = 25°C (Note 2) Operating and Storage Temperature Range
Notes:
Symbol Ptot TJ, TSTG
Value 625 -55 to +150
Unit mW °C
1. Measured under pulse conditions. Pulse width = 300µs. Duty cycle ≤2% 2. For a device surface mounted on 15mm X 15mm X 1.6mm FR4 PCB with high coverage of single sided 1 oz copper, in still air conditions
FMMT718
Document Number DS31924 Rev. 2 - 2
2 of 7 www.diodes.com
August 2009
© Diodes Incorporated
A Product Line of Diodes Incorporated
FMMT718
S O T 2 3 PNP S I L IC O N P O W ER (SW ITCH ING) TRAN SISTOR
Thermal Characteristics and Derating information
Note: Reference above figures, Devices were mounted on 15mm X 15mm X 1.6mm FR4 PCB with high coverage of single sided 1 oz copper, in still air conditions
FMMT718
Document Number DS31924 Rev. 2 - 2
3 of 7 www.diodes.com
August 2009
© Diodes Incorporated
A Product Line of Diodes Incorporated
FMMT718
S O T 2 3 PNP S I L IC O N P O W ER (SW ITCH ING) TRAN SISTOR
Electrical Characteristics
@TA = 25°C unless otherwise specified Symbol V(BR)CBO V(BR)CEO V(BR)EBO ICBO IEBO ICES Min -20 -20 -5 Typ -65 -55 -8.8 Max Unit V V V nA nA nA Test Condition IC = -100 µA IC = -10 mA IE = -100 µA VCB = -15V VEB = -4V VCE= -15V IC = -10mA, VCE = -2V IC = -100mA, VCE = -2V IC = -2A, VCE = -2V IC = -4A, VCE = -2V IC = -6A, VCE = -2V IC =- 0.1A, IB = -10mA IC = -1A, IB = -20mA IC = -1.5A, IB = -50mA IC = -2A, VCE = -2V IC = -1.5A, IB = -50mA VCB = -10V. f = 1MHz VCE = -10V, IC = -50mA, f = 100MHz VCC=-10V, IC =-1A IB1 = IB2 = -20mA
Characteristic Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage (Note 3) Emitter-Base Breakdown Voltage Collector Cutoff Current Emitter Cutoff Current Collector Emitter Cutoff Current Static Forward Current Transfer Ratio (Note 3)
-100 -100 -100 300 300 150 35 15 475 450 230 70 30 -16 -130 -145 -0.81 -0.87 21 150 180 40 670 -40 -200 -220 -1.0 -1.0 30
hFE
Collector-Emitter Saturation Voltage (Note 3) Base-Emitter Turn-On Voltage(Note 3) Base-Emitter Saturation Voltage(Note 3) Output Capacitance Transition Frequency Turn-On Time Turn-Off Time
Notes:
VCE(sat) VBE(on) VBE(sat) Cobo fT ton toff
mV mV mV V V pF MHz ns ns
3. Measured under pulsed conditions. Pulse width ≤ 300 µs. Duty cycle ≤ 2%
FMMT718
Document Number DS31924 Rev. 2 - 2
4 of 7 www.diodes.com
August 2009
© Diodes Incorporated
A Product Line of Diodes Incorporated
FMMT718
S O T 2 3 PNP S I L IC O N P O W ER (SW ITCH ING) TRAN SISTOR
Typical Characteristics
FMMT718
Document Number DS31924 Rev. 2 - 2
5 of 7 www.diodes.com
August 2009
© Diodes Incorporated
A Product Line of Diodes Incorporated
FMMT718
S O T 2 3 PNP S I L IC O N P O W ER (SW ITCH ING) TRAN SISTOR
Package Outline Dimensions
Suggested Pad Layout
FMMT718
Document Number DS31924 Rev. 2 - 2
6 of 7 www.diodes.com
August 2009
© Diodes Incorporated
A Product Line of Diodes Incorporated
FMMT718
S O T 2 3 PNP S I L IC O N P O W ER (SW ITCH ING) TRAN SISTOR
IMPORTANT NOTICE DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION). Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated website, harmless against all damages. Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel. Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized application. Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings noted herein may also be covered by one or more United States, international or foreign trademarks. LIFE SUPPORT Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express written approval of the Chief Executive Officer of Diodes Incorporated. As used herein: A. Life support devices or systems are devices or systems which: 1. 2. B. are intended to implant into the body, or support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the labeling can be reasonably expected to result in significant injury to the user.
A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devicesor systems-related information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems. Copyright © 2009, Diodes Incorporated www.diodes.com
FMMT718
Document Number DS31924 Rev. 2 - 2
7 of 7 www.diodes.com
August 2009
© Diodes Incorporated
