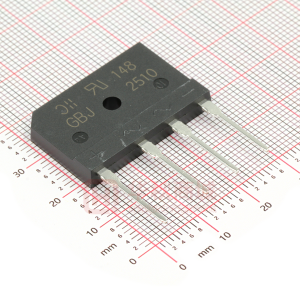

SPICE MODEL: GBJ2510 GBJ25005 - GBJ2510 25A GLASS PASSIVATED BRIDGE RECTIFIER Features · · · · · · · Glass Passivated Die Construction High Case Dielectric Strength of 1500VRMS Low Reverse Leakage Current Surge Overload Rating to 350A Peak Ideal for Printed Circuit Board Applications UL Listed Under Recognized Component Index, File Number E94661 Lead Free Finish/RoHS Compliant (Note 4) Dim A B C D E GBJ Min 29.70 19.70 17.00 3.80 7.30 9.80 2.00 0.90 2.30 4.40 3.40 3.10 2.50 0.60 10.80 Max 30.30 20.30 18.00 4.20 7.70 10.20 2.40 1.10 2.70 4.80 3.80 3.40 2.90 0.80 11.20 L K A M Mechanical Data · · · · · · · · · · Case: GBJ Case Material: Molded Plastic. UL Flammability Classification 94V-0 Moisture Sensitivity: Level 1 per J-STD-020C Terminals: Plated Leads, Solderable per MIL-STD-202, Method 208 e3 Lead Free Plating (Tin Finish). Polarity: Molded on Body Mounting: Through Hole for #6 Screw Mounting Torque: 5.0 in-lbs Maximum Marking: Type Number Weight: 6.6 grams (approximate) B _ J D H I C S P R N G H I J K L M N P R S 3.0 X 45° G E E All Dimensions in mm Maximum Ratings and Electrical Characteristics @ TA = 25°C unless otherwise specified Single phase, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Forward Rectified Output Current (Note 1) @ TC = 100°C Non-Repetitive Peak Forward Surge Current 8.3 ms single half sine-wave superimposed on rated load Forward Voltage (per element) Peak Reverse Current at Rated DC Blocking Voltage I2t Rating for Fusing (t < 8.3ms) (Note 1) Typical Total Capacitance (per element) (Note 2) Typical Thermal Resistance Junction to Case (Note 3) Operating and Storage Temperature Range @ IF = 12.5A @ TC = 25°C @ TC = 125°C Symbol VRRM VRWM VR VR(RMS) IO IFSM VFM IR I2 t CT RqJC Tj, TSTG GBJ 25005 50 35 GBJ 2501 100 70 GBJ 2502 200 140 GBJ 2504 400 280 25 350 1.05 10 500 510 85 0.6 -65 to +150 GBJ 2506 600 420 GBJ 2508 800 560 GBJ 2510 1000 700 Unit V V A A V µA A2 s pF °C/W °C Notes: 1. Non-repetitive, for t > 1ms and < 8.3 ms. 2. Measured at 1.0 MHz and applied reverse voltage of 4.0V DC. 3. Thermal resistance from junction to case per element. Unit mounted on 220 x 220 x 1.6mm aluminum plate heat sink. 4. RoHS revision 13.2.2003. Glass and High Temperature Solder Exemptions Applied, see EU Directive Annex Notes 5 and 7. DS21221 Rev. 7 - 2 1 of 3 www.diodes.com GBJ25005 - GBJ2510 ã Diodes Incorporated IF, INSTANTANEOUS FORWARD CURRENT (A) 30 100 Tj = 25°C IO, AVERAGE RECTIFIED CURRENT (A) with heatsink 25 20 10 15 1.0 10 5 without heatsink Resistive or Inductive load 0.1 0 25 50 75 100 125 150 0.01 0 0.4 0.8 1.2 1.6 2.0 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 2 Typical Forward Characteristics (per element) 1000 TC, CASE TEMPERATURE (°C) Fig. 1 Forward Current Derating Curve IFSM, PEAK FORWARD SURGE CURRENT (A) Single half-sine-wave TJ = 25°C f = 1MHz 400 300 CT, TOTAL CAPACITANCE (pF) 100 Tj = 25°C 100 200 10 100 0 1 10 1 1.0 10 100 VR, REVERSE VOLTAGE (V) Fig. 4 Typical Total Capacitance, Per Element NUMBER OF CYCLES AT 60 Hz Fig. 3 Maximum Non-Repetitive Surge Current 1000 Tj = 150°C 100 Tj = 125°C Tj = 100°C 10 1.0 Tj = 25°C 0.1 0 20 40 60 80 100 120 140 PERCENT OF RATED PEAK REVERSE VOLTAGE (%) Fig. 5 Typical Reverse Characteristics DS21221 Rev. 7 - 2 2 of 3 www.diodes.com GBJ25005 - GBJ2510 Ordering Information Device GBJ25005-F GBJ2501-F GBJ2502-F GBJ2504-F GBJ2506-F GBJ2508-F GBJ2510-F Notes: (Note 5) Packaging GBJ GBJ GBJ GBJ GBJ GBJ GBJ Shipping 15/Tube 15/Tube 15/Tube 15/Tube 15/Tube 15/Tube 15/Tube 5. For packaging details, visit our website at http://www.diodes.com/datasheets/ap02008.pdf. IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. DS21221 Rev. 7 - 2 3 of 3 www.diodes.com GBJ25005 - GBJ2510
