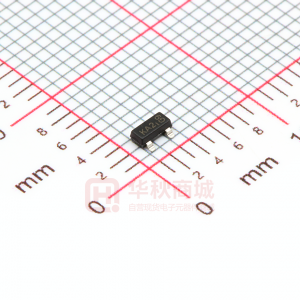

MMBD914-7-F

SPICE MODELS: BAS16 MMBD4148 MMBD914 BAS16/MMBD4148/MMBD914 SURFACE MOUNT SWITCHING DIODE Features • • • • • Fast Switching Speed Surface Mount Package Ideally Suited for Automatic Insertion For General Purpose Switching Applications High Conductance Lead Free/RoHS Compliant (Note 3) Qualified to AEC-Q101 Standards for High Reliability SOT-23 Dim A B C D E G H J K L M α Min 0.37 1.20 2.30 0.89 0.45 1.78 2.80 0.013 0.903 0.45 0.085 0° Max 0.51 1.40 2.50 1.03 0.60 2.05 3.00 0.10 1.10 0.61 0.180 8° • Mechanical Data • • • • • • • • Case: SOT-23 Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020C Terminals: Solderable per MIL-STD-202, Method 208 Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe). Polarity: See Diagram Marking Information: KA6, KA2, K5D; See Page 3 Ordering Information: See Page 3 Weight: 0.008 grams (approximate) @TA = 25°C unless otherwise specified Symbol VRM VRRM VRWM VR VR(RMS) IFM IO @ t = 1.0μs @ t = 1.0s IFSM Pd RθJA Tj , TSTG Value 100 75 53 300 200 2.0 1.0 350 357 -65 to +150 All Dimensions in mm • Maximum Ratings Characteristic Non-Repetitive Peak Reverse Voltage Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Forward Continuous Current (Note 1) Average Rectified Output Current (Note 1) Non-Repetitive Peak Forward Surge Current Power Dissipation (Note 1) Thermal Resistance Junction to Ambient Air (Note 1) Operating and Storage Temperature Range Unit V V V mA mA A mW °C/W °C Electrical Characteristics Characteristic Reverse Breakdown Voltage (Note 2) Forward Voltage @TA = 25°C unless otherwise specified Symbol V(BR)R VF Min 75 ⎯ Max ⎯ 0.715 0.855 1.0 1.25 1.0 50 30 25 2.0 4.0 Unit V V μA μA μA nA pF ns Test Condition IR = 100μA IF = 1.0mA IF = 10mA IF = 50mA IF = 150mA VR = 75V VR = 75V, Tj = 150°C VR = 25V, Tj = 150°C VR = 20V VR = 0, f = 1.0MHz IF = IR = 10mA, Irr = 0.1 x IR, RL = 100Ω Leakage Current (Note 2) Total Capacitance Reverse Recovery Time Notes: 1. 2. 3. IR CT trr ⎯ ⎯ ⎯ Device mounted on glass epoxy PCB 1.6” x 1.6” x 0.06”; mounting pad for the cathode lead min. 0.93in2. Short duration test pulse used to minimize self-heating effect. No Purposefully added Lead. DS12003 Rev. 19 - 2 1 of 3 www.diodes.com BAS16/MMBD4148/MMBD914 © Diodes Incorporated DS12003 Rev. 19 - 2 2 of 3 www.diodes.com BAS16/MMBD4148/MMBD914 © Diodes Incorporated Ordering Information (Note 4) Device BAS16-7-F MMBD4148-7-F MMBD914-7-F Notes: 4. Packaging SOT-23 SOT-23 SOT-23 Shipping 3000/Tape & Reel 3000/Tape & Reel 3000/Tape & Reel For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information XXX = Product Type Marking Code (See Page 1) YM = Date Code Marking Y = Year ex: N = 2002 M = Month ex: 9 = September Date Code Key Year Code Month Code 1998 J Jan 1 1999 K Feb 2 2000 L 2001 M Mar 3 2002 N Apr 4 2003 P May 5 2004 R Jun 6 2005 S 2006 T Jul 7 2007 U Aug 8 2008 V Sep 9 2009 W Oct O 2010 X 2011 Y Nov N 2012 Z Dec D IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. DS12003 Rev. 19 - 2 3 of 3 www.diodes.com BAS16/MMBD4148/MMBD914 © Diodes Incorporated
