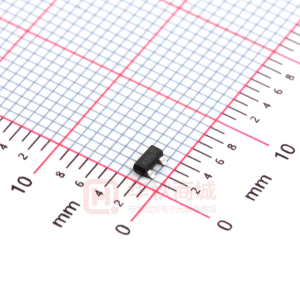

MMBT3906

MMBT3906 PNP SMALL SIGNAL SURFACE MOUNT TRANSISTOR Features · · · · Epitaxial Planar Die Construction Complementary NPN Type Available (MMBT3904) Ideal for Medium Power Amplification and Switching SOT-23 Dim A C B B TOP VIEW E C Min 0.37 1.20 2.30 0.89 0.45 1.78 2.80 0.013 0.903 0.45 0.085 0° Max 0.51 1.40 2.50 1.03 0.60 2.05 3.00 0.10 1.10 0.61 0.180 8° A B C D E G K J L Mechanical Data · · · · · · · · Case: SOT-23, Molded Plastic Case material - UL Flammability Rating Classification 94V-0 Moisture sensitivity: Level 1 per J-STD-020A Terminals: Solderable per MIL-STD-202, Method 208 Terminal Connections: See Diagram Marking (See Page 2): K3N Ordering & Date Code Information: See Page 2 Weight: 0.008 grams (approx.) E D G H H M J K L M a C All Dimensions in mm B E Maximum Ratings Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage @ TA = 25°C unless otherwise specified Symbol VCBO VCEO VEBO IC Pd RqJA Tj, TSTG MMBT3906 -40 -40 -5.0 -200 300 417 -55 to +150 Unit V V V mA mW °C/W °C Characteristic Collector Current - Continuous (Note 1) Power Dissipation (Note 1) Thermal Resistance, Junction to Ambient (Note 1) Operating and Storage and Temperature Range Notes: 1. Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch; pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. DS30059 Rev. 7 - 2 1 of 3 www.diodes.com MMBT3906 Electrical Characteristics Characteristic OFF CHARACTERISTICS (Note 2) Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Collector Cutoff Current Base Cutoff Current ON CHARACTERISTICS (Note 2) @ TA = 25°C unless otherwise specified Symbol V(BR)CBO V(BR)CEO V(BR)EBO ICEX ICBO IBL Min -40 -40 -5.0 ¾ ¾ ¾ 60 80 100 60 30 ¾ -0.65 ¾ ¾ ¾ 2.0 0.1 100 3.0 250 ¾ Max ¾ ¾ ¾ -50 -50 -50 ¾ ¾ 300 ¾ ¾ -0.25 -0.40 -0.85 -0.95 4.5 10 12 10 400 60 ¾ 4.0 Unit V V V nA nA nA Test Condition IC = -10mA, IE = 0 IC = -1.0mA, IB = 0 IE = -10mA, IC = 0 VCE = -30V, VEB(OFF) = -3.0V VCB = -30V, IE = 0 VCE = -30V, VEB(OFF) = -3.0V IC = -100µA, VCE = IC = -1.0mA, VCE = IC = -10mA, VCE = IC = -50mA, VCE = IC = -100mA, VCE = -1.0V -1.0V -1.0V -1.0V -1.0V DC Current Gain hFE ¾ Collector-Emitter Saturation Voltage Base- Emitter Saturation Voltage SMALL SIGNAL CHARACTERISTICS Output Capacitance Input Capacitance Input Impedance Voltage Feedback Ratio Small Signal Current Gain Output Admittance Current Gain-Bandwidth Product Noise Figure SWITCHING CHARACTERISTICS Delay Time Rise Time Storage Time Fall Time VCE(SAT) VBE(SAT) V V IC = -10mA, IB = -1.0mA IC = -50mA, IB = -5.0mA IC = -10mA, IB = -1.0mA IC = -50mA, IB = -5.0mA VCB = -5.0V, f = 1.0MHz, IE = 0 VEB = -0.5V, f = 1.0MHz, IC = 0 Cobo Cibo hie hre hfe hoe fT NF pF pF kW x 10-4 ¾ mS MHz dB VCE = 10V, IC = 1.0mA, f = 1.0kHz VCE = -20V, IC = -10mA, f = 100MHz VCE = -5.0V, IC = -100mA, RS = 1.0kW, f = 1.0kHz VCC = -3.0V, IC = -10mA, VBE(off) = 0.5V, IB1 = -1.0mA VCC = -3.0V, IC = -10mA, IB1 = IB2 = -1.0mA td tr ts tf ¾ ¾ ¾ ¾ 35 35 225 75 ns ns ns ns Ordering Information (Note 3) Device MMBT3906 -7 Notes: Packaging SOT-23 Shipping 3000/Tape & Reel 2. Short duration test pulse used to minimize self-heating effect. 3. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information K3N Date Code Key Year Code Month Code 1998 J Jan 1 1999 K Feb 2 2000 L March 3 2001 M Apr 4 K3N = Product Type Marking Code YM = Date Code Marking Y = Year ex: N = 2002 M = Month ex: 9 = September 2002 N May 5 YM 2003 P Jun 6 2004 R Jul 7 2005 S Aug 8 2006 T Sep 9 2007 U Oct O 2008 V Nov N 2009 W Dec D DS30059 Rev. 7 - 2 2 of 3 www.diodes.com MMBT3906 100 f = 1MHz 300 250 200 150 100 50 CIBO, INPUT CAPACITANCE (pF) COBO, OUTPUT CAPACITANCE (pF) 350 PD, POWER DISSIPATION (mW) 10 Cibo Cobo 0 0 25 50 75 100 125 150 175 200 TA, AMBIENT TEMPERATURE (°C) Fig. 1, Max Power Dissipation vs Ambient Temperature 1 0.1 1 10 100 VCB, COLLECTOR-BASE VOLTAGE (V) Fig. 2, Input and Output Capacitance vs. Collector-Base Voltage 1000 VCE(SAT), COLLECTOR-EMITTER (V) SATURATION VOLTAGE 10 IC IB = 10 hFE, DC CURRENT GAIN TA = 125°C 1 100 TA = -25°C TA = +25°C 0.1 10 VCE = 1.0V 1 0.1 1 10 100 1000 IC, COLLECTOR CURRENT (mA) Fig. 3, Typical DC Current Gain vs Collector Current 0.01 1 10 100 1000 IC, COLLECTOR CURRENT (mA) Fig. 4, Typical Collector-Emitter Saturation Voltage vs. Collector Current 1.0 VBE(SAT), BASE-EMITTER (V) SATURATION VOLTAGE 0.9 0.8 0.7 0.6 IC IB = 10 0.5 1 10 IC, COLLECTOR CURRENT (mA) Fig. 5, Typical Base-Emitter Saturation Voltage vs. Collector Current 100 DS30059 Rev. 7 - 2 3 of 3 www.diodes.com MMBT3906
