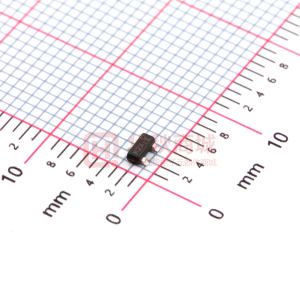

MMBT4401

MMBT4401 NPN SMALL SIGNAL SURFACE MOUNT TRANSISTOR Features · · · Epitaxial Planar Die Construction Complementary PNP Type Available (MMBT4403) Ideal for Medium Power Amplification and Switching SOT-23 Dim A C B B E TOP VIEW Min 0.37 1.20 2.30 0.89 0.45 1.78 2.80 0.013 0.903 0.45 0.085 0° Max 0.51 1.40 2.50 1.03 0.60 2.05 3.00 0.10 1.10 0.61 0.180 8° A B C Mechanical Data · · · · · · · · Case: SOT-23, Molded Plastic Case material - UL Flammability Rating Classification 94V-0 Moisture sensitivity: Level 1 per J-STD-020A Terminals: Solderable per MIL-STD-202, Method 208 Terminal Connections: See Diagram Marking (See Page 2): K2X Ordering & Date Code Information: See Page 2 Weight: 0.008 grams (approx.) E D G H C D E G H K J L M J K L M a C All Dimensions in mm B E Maximum Ratings Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage @ TA = 25°C unless otherwise specified Symbol VCBO VCEO VEBO IC Pd RqJA Tj, TSTG MMBT4401 60 40 6.0 600 300 417 -55 to +150 Unit V V V mA mW °C/W °C Characteristic Collector Current - Continuous (Note 1) Power Dissipation (Note 1) Thermal Resistance, Junction to Ambient (Note 1) Operating and Storage and Temperature Range Notes: 1. Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch; pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. DS30039 Rev. 4 - 2 1 of 3 MMBT4401 Electrical Characteristics Characteristic OFF CHARACTERISTICS (Note 2) Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Collector Cutoff Current Base Cutoff Current ON CHARACTERISTICS (Note 2) @ TA = 25°C unless otherwise specified Symbol V(BR)CBO V(BR)CEO V(BR)EBO ICEX IBL Min 60 40 6.0 ¾ ¾ 20 40 80 100 40 ¾ 0.75 ¾ ¾ ¾ 1.0 0.1 40 1.0 250 Max ¾ ¾ ¾ 100 100 ¾ ¾ ¾ 300 ¾ 0.40 0.75 0.95 1.2 6.5 30 15 8.0 500 30 ¾ Unit V V V nA nA Test Condition IC = 100mA, IE = 0 IC = 1.0mA, IB = 0 IE = 100mA, IC = 0 VCE = 35V, VEB(OFF) = 0.4V VCE = 35V, VEB(OFF) = 0.4V IC = 100µA, VCE = IC = 1.0mA, VCE = IC = 10mA, VCE = IC = 150mA, VCE = IC = 500mA, VCE = 1.0V 1.0V 1.0V 1.0V 2.0V DC Current Gain hFE ¾ Collector-Emitter Saturation Voltage Base-Emitter Saturation Voltage SMALL SIGNAL CHARACTERISTICS Output Capacitance Input Capacitance Input Impedance Voltage Feedback Ratio Small Signal Current Gain Output Admittance Current Gain-Bandwidth Product SWITCHING CHARACTERISTICS Delay Time Rise Time Storage Time Fall Time VCE(SAT) VBE(SAT) V V IC = 150mA, IB = 15mA IC = 500mA, IB = 50mA IC = 150mA, IB = 15mA IC = 500mA, IB = 50mA VCB = 5.0V, f = 1.0MHz, IE = 0 VEB = 0.5V, f = 1.0MHz, IC = 0 Ccb Ceb hie hre hfe hoe fT pF pF kW x 10-4 ¾ mS MHz VCE = 10V, IC = 1.0mA, f = 1.0kHz VCE = 10V, IC = 20mA, f = 100MHz td tr ts tf ¾ ¾ ¾ ¾ 15 20 225 30 ns ns ns ns VCC = 30V, IC = 150mA, VBE(off) = 2.0V, IB1 = 15mA VCC = 30V, IC = 150mA, IB1 = IB2 = 15mA Ordering Information Device MMBT4401-7 Notes: (Note 3) Packaging SOT-23 Shipping 3000/Tape & Reel 2. Short duration test pulse used to minimize self-heating effect. 3. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information K2X Date Code Key Year Code Month Code 1998 J Jan 1 1999 K Feb 2 2000 L March 3 2001 M Apr 4 K2X = Product Type Marking Code YM = Date Code Marking Y = Year ex: N = 2002 M = Month ex: 9 = September 2002 N May 5 YM 2003 P Jun 6 2004 R Jul 7 2005 S Aug 8 2006 T Sep 9 2007 U Oct O 2008 V Nov N 2009 W Dec D DS30039 Rev. 4 - 2 2 of 3 MMBT4401 30 VCE COLLECTOR-EMITTER VOLTAGE (V) 2.0 1.8 1.6 1.4 1.2 1.0 0.8 0.6 0.4 0.2 0 0.001 0.01 0.1 1 10 100 IC = 300mA IC = 30mA IC = 1mA IC = 10mA IC = 100mA 20 10 Cibo CAPACITANCE (pF) 5.0 Cobo 1.0 0.1 1.0 10 50 REVERSE VOLTS (V) Fig. 1 Typical Capacitance IB BASE CURRENT (mA) Fig. 2 Typical Collector Saturation Region DS30039 Rev. 4 - 2 3 of 3 MMBT4401
