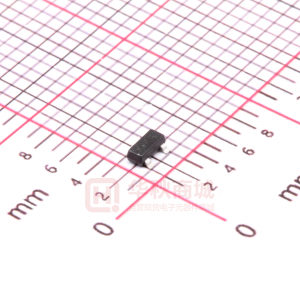

MMBZ27VCL-7-F

MMBZ15VDL, MMBZ27VCL 40W PEAK POWER DUAL SURFACE MOUNT TVS Please click here to visit our online spice models database. Features • • • • • • • Dual TVS in Common Cathode Configuration for ESD Protection 40 Watt Peak Power Dissipation @1.0ms (Unidirectional) 225 mW Power Dissipation Ideally Suited for Automated Insertion Low Leakage Lead, Halogen and Antimony Free, RoHS Compliant "Green" Device (Notes 4 and 5) Qualified to AEC-Q101 Standards for High Reliability Mechanical Data • • • • • • • • • Case: SOT-23 Case Material: Molded Plastic. UL Flammability Rating Classification 94V-0 Moisture Sensitivity: Level 1 per J-STD-020D Terminals: Solderable per MIL-STD-202, Method 208 Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe). Polarity: See Diagram Marking Information: See Page 3 Ordering Information: See Page 3 Weight: 0.008 grams (approximate) Top View Device Schematic Maximum Ratings @TA = 25°C unless otherwise specified Characteristic Symbol PPK Value 40 Unit W Peak Power Dissipation (Note 2) Thermal Characteristics Characteristic Power Dissipation (Note 1) Thermal Resistance, Junction to Ambient Air (Note 1) Operating and Storage Temperature Range Symbol PD RθJA TJ, TSTG Value 225 556 –65 to +150 Unit mW °C/W °C Electrical Characteristics @TA = 25°C unless otherwise specified VF = 0.9V max @ IF = 10mA (Note 3) Breakdown Voltage Type Number MMBZ15VDL Marking Code KVJ VRWM Volts 12.8 IR @ VRWM nA 100 VBR (Note 3) (V) Min 14.3 Nom 15 Max 15.8 @ IT mA 1.0 VC @ IPP (Note 2) VC V 21.2 IPP A 1.9 Typical Temperature Coefficient TC (%/°C) +0.080 Typical Temperature Coefficient TC (%/°C) +0.090 VF = 1.1V max @ IF = 200mA (Note 3) Breakdown Voltage Type Number MMBZ27VCL Notes: VC @ IPP (Note 2) @ IT VC V 38 IPP A 1.0 Marking Code KVP VRWM Volts 22 IR @ VRWM nA 50 VBR (Note 3) (V) Min 25.65 Nom 27 Max 28.35 mA 1.0 1. Device mounted on FR-5 PCB 1.0 x 0.75 x 0.062 inch pad layout as shown on Diodes Inc. suggested pad layout AP02001, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. 200mW per element must not be exceeded. 2. Non-repetitive current pulse per Figure 2 and derate above TA = 25°C per Figure 1. 3. Short duration pulse test used to minimize self-heating effect. 4. No purposefully added lead. Halogen and Antimony Free. 5. Product manufactured with Data Code V9 (week 33, 2008) and newer are built with Green Molding Compound. Product manufactured prior to Date Code V9 are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants. MMBZ15VDL, MMBZ27VCL Document number: DS30352 Rev. 11 - 2 1 of 4 www.diodes.com July 2008 © Diodes Incorporated MMBZ15VDL, MMBZ27VCL 100 PEAK PULSE DERATING IN % OF PEAK POWER OR CURRENT 75 50 25 10 X 1000 Waveform as defined by REA 0 0 25 50 75 100 125 150 175 TA, AMBIENT TEMPERATURE (°C) Fig. 1 Pulse Derating Curve 200 t, TIME (ms) Fig. 2 Pulse Waveform 300 f = 1MHz PD, POWER DISSIPATION (mW) 250 C, CAPACITANCE (pF) 200 IPP, PEAK PULSE CURRENT (%Ipp) MMBZ15VDL 150 FR-5 Board 100 MMBZ27VCL 50 0 0 25 50 75 100 125 150 175 TA, AMBIENT TEMPERATURE Fig. 3 Steady State Power Derating Curve 30 100 BIAS (V) Fig. 4 Typical Capacitance vs. Bias Voltage (Lower curve is Bidirectional mode, Upper curve is Unidirectional mode) VBR, BREAKDOWN VOLTAGE (V) 29 IR, LEAKAGE CURRENT (nA) 10 28 27 Unidirectional 26 145 -15 25 65 105 TA, AMBIENT TEMPERATURE (°C) Fig. 5 Typical Breakdown Voltage vs. Temperature (MMBZ27VCL) -55 25 0.1 -55 -15 25 65 105 145 TA, AMBIENT TEMPERATURE (°C) Fig. 6 Typical Leakage Current vs. Temperature (MMBZ27VCL) MMBZ15VDL, MMBZ27VCL Document number: DS30352 Rev. 11 - 2 2 of 4 www.diodes.com July 2008 © Diodes Incorporated MMBZ15VDL, MMBZ27VCL 100 Ppk (NOM), PEAK PULSE POWER (W) Tj = 25°C 100 T j = 25 °C Ppk, PEAK PULSE POWER (W) Bidirectional Non repetitive pulse waveform (Rectangular) Bidirectional Non repetitive pulse waveform (Rectangular) 10 Unidirectional 10 Unidirectional 1.0 1.0 0.1 0.1 1.0 10 100 1,000 10,000 0.1 0.1 1.0 PULSE WIDTH (ms) Fig. 7 Pulse Rating Curve, Ppk (W) vs. Pulse Width (ms) Power is defined as Ppk = VC x Ipp 10 100 1,000 10,000 PULSE WIDTH (ms) Fig. 8 Pulse Rating Curve, Ppk (NOM) (W) vs. Pulse Width (ms) Power is defined as Ppk(NOM) = VBR(NOM) x Ipp where VBR(NOM) is the nominal breakdown voltage Ordering Information Part Number MMBZ15VDL-7-F MMBZ27VCL-7-F Notes: (Note 6) Case SOT-23 SOT-23 Packaging 3000/Tape & Reel 3000/Tape & Reel 6. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information xxx = Product Type Marking Code, KVJ = MMBZ15VDL KVP = MMBZ27VCL YM = Date Code Marking Y = Year (ex: T = 2006) M = Month (ex: 9 = September) 2010 X Jun 6 2011 Y Jul 7 2012 Z Aug 8 Sep 9 2013 A Oct O 2014 B Nov N 2015 C Dec D xxx Date Code Key Year Code Month Code 2006 T Jan 1 2007 U Feb 2 Mar 3 2008 V Apr 4 2009 W May 5 Package Outline Dimensions A YM BC H K D J F G L M K1 SOT-23 Dim Min Max Typ A 0.37 0.51 0.40 1.20 1.40 1.30 B 2.30 2.50 2.40 C 0.89 1.03 0.915 D 0.45 0.60 0.535 F 1.78 2.05 1.83 G H 2.80 3.00 2.90 0.013 0.10 0.05 J K 0.903 1.10 1.00 0.400 K1 L 0.45 0.61 0.55 0.085 0.18 0.11 M 0° 8° α All Dimensions in mm July 2008 © Diodes Incorporated MMBZ15VDL, MMBZ27VCL Document number: DS30352 Rev. 11 - 2 3 of 4 www.diodes.com MMBZ15VDL, MMBZ27VCL Suggested Pad Layout Y Z C Dimensions Value (in mm) Z 2.9 X 0.8 Y 0.9 C 2.0 E 1.35 X E IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. MMBZ15VDL, MMBZ27VCL Document number: DS30352 Rev. 11 - 2 4 of 4 www.diodes.com July 2008 © Diodes Incorporated
