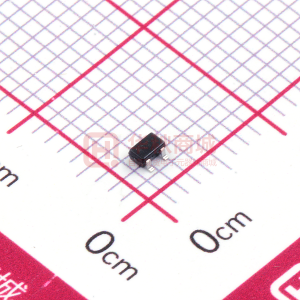

MMSTA06

MMSTA05/MMSTA06 NPN SMALL SIGNAL SURFACE MOUNT TRANSISTOR Features NEW PRODUCT · · · · Epitaxial Planar Die Construction Complementary PNP Type Available (MMSTA55/MMSTA56) Ideal for Medium Power Amplification and Switching Ultra-Small Surface Mount Package B E SOT-323 A C TOP VIEW E D G H K J L M B C Dim A B C D E G H J K L M Min 0.30 1.15 2.00 0.30 1.20 1.80 0.0 0.90 0.25 0.10 Max 0.40 1.35 2.20 0.40 1.40 2.20 0.10 1.00 0.40 0.25 0.65 Nominal Mechanical Data · · · · · · Case: SOT-323, Molded Plastic Terminals: Solderable per MIL-STD-202, Method 208 Terminal Connections: See Diagram MMSTA05 Marking K1H, K1G MMSTA06 Marking K1G Weight: 0.006 grams (approx.) All Dimensions in mm Maximum Ratings Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage @ TA = 25°C unless otherwise specified Symbol VCBO VCEO VEBO IC Pd RqJA Tj, TSTG MMSTA05 60 60 4.0 500 200 625 -55 to +150 MMSTA06 80 80 Unit V V V mA mW K/W °C Characteristic Collector Current - Continuous (Note 1) Power Dissipation (Note 1) Thermal Resistance, Junction to Ambient (Note 1) Operating and Storage and Temperature Range Electrical Characteristics Characteristic OFF CHARACTERISTICS (Note 2) Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Collector Cutoff Current Collector Cutoff Current ON CHARACTERISTICS (Note 2) DC Current Gain Collector-Emitter Saturation Voltage Base- Emitter Saturation Voltage SMALL SIGNAL CHARACTERISTICS Current Gain-Bandwidth Product Note: @ TA = 25°C unless otherwise specified Symbol MMSTA05 MMSTA06 MMSTA05 MMSTA06 MMSTA05 MMSTA06 MMSTA05 MMSTA06 Min 60 80 60 80 4.0 ¾ ¾ Max Unit Test Condition V(BR)CBO V(BR)CEO V(BR)EBO ICBO ICES ¾ ¾ ¾ 100 100 V V V nA nA IC = 100mA, IE = 0 IC = 1.0mA, IB = 0 IE = 100mA, IC = 0 VCB = 60V, IE = 0 VCB = 80V, IE = 0 VCE = 60V, IBO = 0V VCE = 80V, IBO = 0V IC = 10mA, VCE = 1.0V IC = 100mA, VCE = 1.0V IC = 100mA, IB = 10mA IC = 100mA, VCE = 1.0V VCE = 2.0V, IC = 10mA, f = 100MHz hFE VCE(SAT) VBE(SAT) 100 ¾ ¾ ¾ 0.25 1.2 ¾ V V fT 100 ¾ MHz 1. Valid provided that terminals are kept at ambient temperature. 2. Pulse test: Pulse width £ 300ms, duty cycle £ 2%. DS30168 Rev. B-1 1 of 1 MMSTA05/MMSTA06
