SPICE MODEL: PD3S120L
PD3S120L

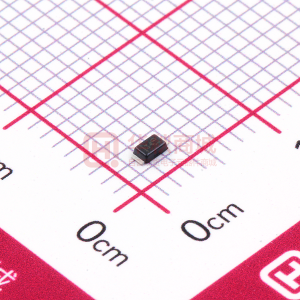

1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER PowerDI™323
N EW PRODUCT
Features
• • • • • • Guard Ring Die Construction for Transient Protection High Surge Capability Lead Free Finish, RoHS Compliant (Note 1) "Green" Molding Compound (No Br, Sb) Ultra-Small Surface Mount Package Qualified to AEC-Q101 Standards for High Reliability • • • • • • • • •
Mechanical Data
Case: PowerDI™323 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020C Polarity: Cathode Band Terminals: Finish - Matte Tin annealed over Copper leadframe. Solderable per MIL-STD-202, Method 208 Marking: Date Code & Type Code, See Page 3 Type Code: 34 Ordering Information: See Page 3 Weight: 0.006 grams (approx.)
TOP VIEW
BOTTOM VIEW
Maximum Ratings @ TA = 25ºC unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Forward Current (See also figure 4) Non-Repetitive Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load Operating Temperature Range Storage Temperature Range
Symbol VRRM VRWM VR VR(RMS) IF(AV) IFSM Tj TSTG
Value 20 14 1.0 33 -65 to +125 -65 to +125
Unit V V A A °C °C
Thermal Characteristics
Characteristic Thermal Resistance Junction to Soldering Point Thermal Resistance Junction to Ambient Air (Note 2) Thermal Resistance Junction to Ambient Air (Note 3) Symbol RθJS RθJA RθJA Typ ⎯ 170 144 Max 6 ⎯ ⎯ Unit °C/W °C/W °C/W
Electrical Characteristics @ TA = 25ºC unless otherwise specified
Characteristic Reverse Breakdown Voltage (Note 4) Forward Voltage Symbol V(BR)R VF Min 20 ⎯ ⎯ ⎯ ⎯ ⎯ ⎯ Typ ⎯ 0.27 0.34 0.36 0.27 10 13 30 11 46 Max ⎯ 0.31 0.38 0.42 0.30 50 60 160 30 ⎯ Unit V V µA µA µA mA pF Test Condition IR = 100µA IF = 0.1A, TA = 25ºC IF = 0.7A, TA = 25ºC IF = 1.0A, TA = 25ºC IF = 1.0A, TA = 125ºC VR = 5V, TA = 25°C VR = 10V, TA = 25°C VR = 20V, TA = 25°C VR = 20V, TA = 125°C VR = 10V, f = 1.0MHz
Leakage Current (Note 4) Total Capacitance
Notes: 1. 2. 3. 4.
IR CT
RoHS revision 13.2.2003. High Temperature Solder Exemptions Applied, see EU Directive Annex Note 7. FR-4 PCB, 2 oz. Copper, minimum recommended pad layout per http://www.diodes.com/datasheets/ap02001.pdf. Polymide PCB, 2 oz. Copper, minimum recommended pad layout per http://www.diodes.com/datasheets/ap02001.pdf. Short duration pulse test to minimize self-heating effect.
DS30793 Rev. 3 – 2
PowerDI is a trademark of Diodes Incorporated.
1 of 3 www.diodes.com
PD3S120L
© Diodes Incorporated
N EW PRODUCT
TJ = 125°C TJ = 85°C
TJ = 25°C
TJ = -65°C
1.2 IF, DC FORWARD CURRENT (A) 1.0
0.8
0.6 0.4 0.2
0 0 100 25 50 75 125 TA, AMBIENT TEMPERATURE (°C) Fig. 4, DC Forward Current Derating 150
TA, DERATED AMBIENT TEMPERATURE (°C)
200
150 Note 2
100
50
0 0 10 VR, DC REVERSE VOLTAGE (V) Fig. 6 Operating Temperature Derating 20
.
DS30793 Rev. 3 – 2
PowerDI is a trademark of Diodes Incorporated.
2 of 3 www.diodes.com
PD3S120L
© Diodes Incorporated
Package Outline Dimensions N EW PRODUCT
C
B
D H
L L
E L4
E1
L1 A
L3
PowerDI™323 Dim Min Max Typ A 2.40 2.60 2.50 B 1.85 1.95 1.90 C 1.20 1.30 1.25 D 0.60 0.70 0.65 E 0.78 0.98 0.88 E1 0.50 0.70 0.60 H 0.08 0.18 0.13 L 0.20 0.40 0.30 L1 1.40 ⎯ ⎯ L3 0.20 ⎯ ⎯ L4 0.40 0.80 0.60 All Dimensions in mm
Suggested Pad Layout
X G C
Dimensions Z1 Z2 G X C Value (in mm) 0.8 1.1 0.5 2.0 0.8
Z2
Z1
Ordering Information (Note 5)
Device PD3S120L-7
Notes:
Packaging PowerDI™323
Shipping 3000/Tape & Reel
5. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
34
34 = Product Type Marking Code YM = Date Code Marking Y = Year (ex: U = 2007) M = Month (ex: 9 = September)
Date Code Key Year Code Month Code
2006 T Jan 1 Feb 2
2007 U Mar 3 Apr 4
YM
2008 V May 5
2009 W Jun 6 Jul 7
2010 X Aug 8 Sep 9
2011 Y Oct O Nov N
2012 Z Dec D
IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated.
DS30793 Rev. 3 – 2
PowerDI is a trademark of Diodes Incorporated.
3 of 3 www.diodes.com
PD3S120L
© Diodes Incorporated
