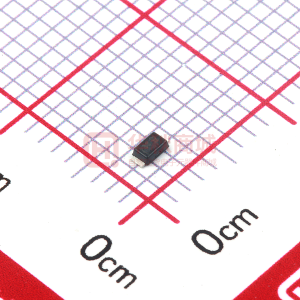

PD3S140-7

PD3S140 1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER PowerDI®323 Please click here to visit our online spice models database. Features • • • • • • Guard Ring Die Construction for Transient Protection High Surge Capability Lead Free Finish, RoHS Compliant (Note 1) "Green" Molding Compound (No Br, Sb) Qualified to AEC-Q101 Standards for High Reliability Ultra-Small Surface Mount Package Mechanical Data • • • • • • • • Case: PowerDI 323 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Polarity: Cathode Band Terminals: Finish - Matte Tin annealed over Copper leadframe. Solderable per MIL-STD-202, Method 208 Marking Information: See Page 3 Ordering Information: See Page 3 Weight: 0.006 grams (approximate) ® Top View Bottom View Maximum Ratings @TA = 25°C unless otherwise specified Single phase, half wave, 60Hz, resistive or inductive load. For capacitance load, derate current by 20%. Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Forward Current (See also figure 4) Non-Repetitive Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load Symbol VRRM VRWM VR IF(AV) IFSM Value 40 1.0 22 Unit V A A Thermal Characteristics Characteristic Thermal Resistance Junction to Soldering Point Thermal Resistance Junction to Ambient Air (Note 2) Thermal Resistance Junction to Ambient Air (Note 3) Operating and Storage Temperature Range Symbol RθJS RθJA RθJA TJ, TSTG Typ ⎯ 175 130 -65 to +150 Max 15 ⎯ ⎯ Unit °C/W °C/W °C/W °C Electrical Characteristics Characteristic Reverse Breakdown Voltage (Note 4) Forward Voltage @TA = 25°C unless otherwise specified Symbol V(BR)R VF Min 40 ⎯ ⎯ ⎯ ⎯ ⎯ ⎯ ⎯ Typ ⎯ 0.37 0.44 0.46 0.49 0.3 2 32 Max ⎯ 0.42 0.50 0.52 0.55 4 50 ⎯ Unit V V Test Condition IR = 100μA IF = 0.1A IF = 0.5A IF = 0.7A IF = 1.0A VR = 5V, TA = 25°C VR = 40V, TA = 25°C VR = 10V, f = 1.0MHz Leakage Current (Note 4) Total Capacitance (See also figure 3) Notes: 1. 2. 3. 4. IR CT μA pF EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied. Please visit our website at http://www.diodes.com/quality/lead_free.html. FR-4 PCB, 2 oz. Copper, minimum recommended pad layout per http://www.diodes.com/datasheets/ap02001.pdf. TA = 25°C. Polymide PCB, 2 oz. Copper, minimum recommended pad layout per http://www.diodes.com/datasheets/ap02001.pdf. TA = 25°C. Short duration pulse test used to minimize self-heating effect. PowerDI is a registered trademark of Diodes Incorporated. 1 of 4 PD3S140 Document number: DS30862 Rev. 10 - 2 July 2009 © Diodes Incorporated www.diodes.com PD3S140 IF, INSTANTANEOUS FORWARD CURRENT (A) 1.25 10 IPK PD, POWER DISSIPATION (W) 1.0 IAV =1(DC) 1 0.75 100m 0.50 10m 0.25 1m 0 0 2.0 0.5 1.0 1.5 2.5 IF(AV), AVERAGE FORWARD CURRENT (A) Fig. 1 Forward Power Dissipation 100μ 0 0.2 0.4 0.6 0.8 1.0 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 2 Typical Forward Characteristics IR, INSTANTANEOUS REVERSE CURRENT (uA) 10,000 1,000 100 10 1 0.1 0.01 0.001 0 CT, TOTAL CAPACITANCE (pF) 150 125 f = 1MHz 100 75 50 25 30 15 5 40 10 20 35 25 VR, INSTANTANEOUS REVERSE VOLTAGE (V) Fig. 3 Typical Reverse Characteristics 10 30 15 20 25 5 VR, DC REVERSE VOLTAGE (V) Fig. 4 Total Capacitance vs. Reverse Voltage 1.2 200 TA, DERATED AMBIENT TEMPERATURE (°C) Note 2 IF(AV), AVERAGE FORWARD CURRENT (A) 1.0 Note 3 Note 2 150 0.8 0.6 100 0.4 50 0.2 0 0 25 75 100 125 50 TA, AMBIENT TEMPERATURE (°C) Fig. 5 Forward Current Derating Curve 150 0 0 10 20 30 VR, DC REVERSE VOLTAGE (V) Fig. 6 Operating Temperature Derating 40 PowerDI is a registered trademark of Diodes Incorporated. 2 of 4 PD3S140 Document number: DS30862 Rev. 10 - 2 July 2009 © Diodes Incorporated www.diodes.com PD3S140 Ordering Information Part Number PD3S140-7 Notes: (Note 5) Case ® PowerDI 323 Packaging 3000/Tape & Reel 5. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information 33 = Product Type Marking Code YM = Date Code Marking Y = Year (ex: U = 2006) M = Month (ex: 9 = September) 33 Date Code Key Year Code Month Code 2006 T Jan 1 Feb 2 2007 U Mar 3 Apr 4 2008 V May 5 Jun 6 YM 2009 W Jul 7 2010 X Aug 8 Sep 9 2011 Y Oct O Nov N 2012 Z Dec D Package Outline Dimensions C B D H L L E E2 L4 E1 L1 L1 L3 A PowerDI 323 Dim Min Max Typ A 2.40 2.60 2.50 B 1.85 1.95 1.90 C 1.20 1.30 1.25 D 0.60 0.70 0.65 E 0.78 0.98 0.88 E1 0.50 0.70 0.60 E2 0.60 1.00 0.80 H 0.08 0.18 0.13 L 0.20 0.40 0.30 L1 1.40 ⎯ ⎯ L3 0.20 ⎯ ⎯ L4 0.40 0.80 0.60 All Dimensions in mm ® Suggested Pad Layout X G X1 Y2 Y1 Dimensions G X1 X2 Y1 Y2 Value (in mm) 0.5 2.0 0.8 0.8 1.1 PowerDI is a registered trademark of Diodes Incorporated. 3 of 4 PD3S140 Document number: DS30862 Rev. 10 - 2 July 2009 © Diodes Incorporated www.diodes.com PD3S140 IMPORTANT NOTICE DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION). Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated website, harmless against all damages. Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel. Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized application. Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings noted herein may also be covered by one or more United States, international or foreign trademarks. LIFE SUPPORT Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express written approval of the Chief Executive Officer of Diodes Incorporated. As used herein: A. Life support devices or systems are devices or systems which: 1. are intended to implant into the body, or 2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the labeling can be reasonably expected to result in significant injury to the user. B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or to affect its safety or effectiveness. Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems. Copyright © 2009, Diodes Incorporated www.diodes.com PowerDI is a registered trademark of Diodes Incorporated. 4 of 4 PD3S140 Document number: DS30862 Rev. 10 - 2 July 2009 © Diodes Incorporated www.diodes.com
