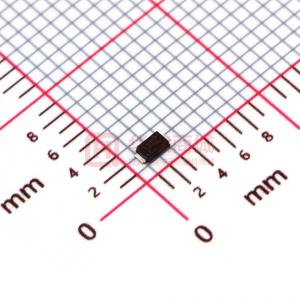

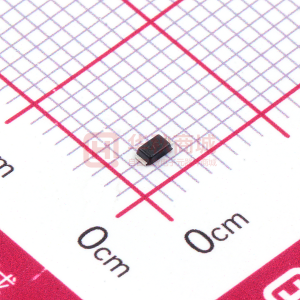

PD3S160

PD3S160 1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER PowerDI®323 Please click here to visit our online spice models database. Features • • • • • • Guard Ring Die Construction for Transient Protection High Surge Capability Lead Free Finish, RoHS Compliant (Note 1) "Green" Molding Compound (No Br, Sb) Qualified to AEC-Q101 Standards for High Reliability Ultra-Small Surface Mount Package Mechanical Data • • • • • • • • Case: PowerDI 323 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020D Polarity: Cathode Band Terminals: Finish - Matte Tin annealed over Copper leadframe. Solderable per MIL-STD-202, Method 208 Marking Information: See Page 3 Ordering Information: See Page 3 Weight: 0.006 grams (approximate) ® Top View Bottom View Maximum Ratings @TA = 25°C unless otherwise specified Single phase, half wave, 60Hz, resistive or inductive load. For capacitance load, derate current by 20%. Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Forward Current (See also figure 4) Non-Repetitive Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load Symbol VRRM VRWM VR VR(RMS) IF(AV) IFSM Value 60 42 1.0 22 Unit V V A A Thermal Characteristics Characteristic Thermal Resistance Junction to Soldering Point Thermal Resistance Junction to Ambient Air (Note 2) Thermal Resistance Junction to Ambient Air (Note 3) Operating and Storage Temperature Range Symbol RθJS RθJA RθJA TJ, TSTG Typ ⎯ 173 125 -65 to +150 Max 6 ⎯ ⎯ Unit °C/W °C/W °C/W °C Electrical Characteristics Characteristic Reverse Breakdown Voltage (Note 4) Forward Voltage Leakage Current (Note 4) Total Capacitance (See also figure 3) Notes: 1. 2. 3. 4. @TA = 25°C unless otherwise specified Symbol V(BR)R VF IR CT Min 60 ⎯ ⎯ ⎯ ⎯ ⎯ ⎯ Typ ⎯ 0.40 0.55 ⎯ 0.3 3 38 Max ⎯ 0.45 0.58 0.64 5 50 ⎯ Unit V V μA pF Test Condition IR = 100μA IF = 0.1A IF = 0.7A IF = 1.0A VR = 5V, TA = 25°C VR = 60V, TA = 25°C VR = 10V, f = 1.0MHz EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes. FR-4 PCB, 2 oz. Copper, minimum recommended pad layout per http://www.diodes.com/datasheets/ap02001.pdf. TA = 25°C. Polymide PCB, 2 oz. Copper, minimum recommended pad layout per http://www.diodes.com/datasheets/ap02001.pdf. TA = 25°C. Short duration pulse test used to minimize self-heating effect. PowerDI is a registered trademark of Diodes Incorporated. PD3S160 Document number: DS30899 Rev. 6 - 2 1 of 3 www.diodes.com June 2008 © Diodes Incorporated PD3S160 IF, INSTANTANEOUS FORWARD CURRENT (mA) 1.2 1.0 PD, POWER DISSIPATION (W) 10,000 1,000 0.8 100 0.6 10 0.4 1 0.2 0 0 2.0 0.5 1.0 1.5 IF(AV), AVERAGE FORWARD CURRENT (A) Fig. 1 Forward Power Dissipation 0.1 0.2 0.4 0.6 0.8 1.0 0 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 2 Typical Forward Characteristics IR, INSTANTANEOUS REVERSE CURRENT (uA) 10,000 TA = 150°C 150 1,000 TA = 125°C CT, TOTAL CAPACITANCE (pF) 120 100 10 1 0.1 0.01 T A = 85°C 90 TA = 25°C TA = 0°C T A = -65°C 60 30 0.001 20 0 10 40 30 50 60 VR, INSTANTANEOUS REVERSE VOLTAGE (V) Fig. 3 Typical Reverse Characteristics TA, DERATED AMBIENT TEMPERATURE (°C) 0 0 5 10 15 20 25 30 VR, DC REVERSE VOLTAGE (V) Fig. 4 Total Capacitance vs. Reverse Voltage 1.2 IF(AV), AVERAGE FORWARD CURRENT (A) 1.0 180 150 0.8 120 0.6 90 0.4 60 0.2 30 0 0 0 25 100 50 75 125 TA, AMBIENT TEMPERATURE (°C) Fig. 5 Forward Current Derating Curve 150 0 20 30 40 50 10 VR, DC REVERSE VOLTAGE (V) Fig. 6 Operating Temperature Derating 60 PowerDI is a registered trademark of Diodes Incorporated. PD3S160 Document number: DS30899 Rev. 6 - 2 2 of 3 www.diodes.com June 2008 © Diodes Incorporated PD3S160 Ordering Information Part Number PD3S160-7 Notes: (Note 5) Case ® PowerDI 323 Packaging 3000/Tape & Reel 5. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information 37 37 = Product Type Marking Code YM = Date Code Marking Y = Year (ex: T = 2006) M = Month (ex: 9 = September) Date Code Key Year Code Month Code 2006 T Jan 1 Feb 2 2007 U Mar 3 Apr 4 YM 2008 V May 5 2009 W Jun 6 Jul 7 2010 X Aug 8 Sep 9 2011 Y Oct O Nov N 2012 Z Dec D Package Outline Dimensions C B D H L L E L1 L1 L4 L3 A E1 PowerDI 323 Dim Min Max Typ A 2.40 2.60 2.50 B 1.85 1.95 1.90 C 1.20 1.30 1.25 D 0.60 0.70 0.65 E 0.78 0.98 0.88 E1 0.50 0.70 0.60 H 0.08 0.18 0.13 L 0.20 0.40 0.30 L1 1.40 ⎯ ⎯ L3 0.20 ⎯ ⎯ L4 0.40 0.80 0.60 All Dimensions in mm ® Suggested Pad Layout X1 G X2 Dimensions G X1 X2 Y1 Y2 Value (in mm) 0.5 2.0 0.8 0.8 1.1 Y2 Y1 IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. PowerDI is a registered trademark of Diodes Incorporated. PD3S160 Document number: DS30899 Rev. 6 - 2 3 of 3 www.diodes.com June 2008 © Diodes Incorporated
