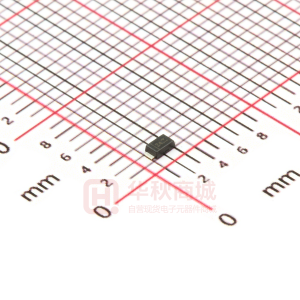

PD3S220L-7

PD3S220L 2.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER PowerDI®323 Please click here to visit our online spice models database. Features • • • • • • Guard Ring Die Construction for Transient Protection High Surge Capability Lead Free Finish, RoHS Compliant (Note 1) "Green" Molding Compound (No Br, Sb) Ultra-Small Surface Mount Package Qualified to AEC-Q101 Standards for High Reliability Mechanical Data • • • • • • • • Case: PowerDI 323 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020D Polarity: Cathode Band Terminals: Finish - Matte Tin annealed over Copper leadframe. Solderable per MIL-STD-202, Method 208 Marking Information: See Page 3 Ordering Information: See Page 3 Weight: 0.006 grams (approximate) ® N EW PRODUCT Top View Bottom View Maximum Ratings @TA = 25°C unless otherwise specified Single phase, half wave, 60Hz, resistive or inductive load. For capacitance load, derate current by 20%. Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Forward Current (See also figure 4) Non-Repetitive Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load Symbol VRRM VRWM VR IF(AV) IFSM Value 20 2.0 33 Unit V A A Thermal Characteristics Characteristic Thermal Resistance Junction to Soldering Point Thermal Resistance Junction to Ambient Air (Note 2) Thermal Resistance Junction to Ambient Air (Note 3) Operating and Storage Temperature Range Symbol RθJS RθJA RθJA TJ, TSTG Typ ⎯ 170 144 -65 to +125 Max 6 ⎯ ⎯ Unit °C/W °C/W °C/W °C Electrical Characteristics Characteristic Forward Voltage @TA = 25°C unless otherwise specified Symbol VF Min ⎯ ⎯ ⎯ ⎯ ⎯ ⎯ Typ ⎯ 0.42 ⎯ 0.35 30 11 46 Max 0.44 0.49 0.36 0.47 160 30 ⎯ Unit V μA mA pF Test Condition IF = 1.0A, TA = 25ºC IF = 2.0A, TA = 25ºC IF = 1.0A, TA = 125ºC IF = 2.0A, TA = 125ºC VR = 20V, TA = 25°C VR = 20V, TA = 125°C VR = 10V, f = 1.0MHz Leakage Current (Note 4) Total Capacitance Notes: 1. 2. 3. 4. IR CT EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes. FR-4 PCB, 2 oz. Copper, minimum recommended pad layout per http://www.diodes.com/datasheets/ap02001.pdf. Polymide PCB, 2 oz. Copper, minimum recommended pad layout per http://www.diodes.com/datasheets/ap02001.pdf. Short duration pulse test to minimize self-heating effect. PowerDI is a registered trademark of Diodes Incorporated. 1 of 3 PD3S220L Document number: DS31733 Rev. 1 - 2 February 2009 © Diodes Incorporated www.diodes.com PD3S220L 0.8 0.7 PD, POWER DISSIPATION (W) 0.6 0.5 0.4 0.3 0.2 0.1 0 0 0.5 1 1.5 2 2.5 IF(AV), AVERAGE FORWARD CURRENT (A) Fig. 1 Forward Power Dissipation 200 f = 1.0MHz TJ = 125°C IPK ____ = 1(DC) IAV TJ = 125°C TJ = 85°C TJ = 25°C TJ = -65°C N EW PRODUCT 0 0.2 0.4 0.6 0.8 1 100 10 1 TJ = 85°C 150 0.1 100 0.01 0.001 0.0001 0.00001 0 5 10 15 20 VR, INSTANTANEOUS REVERSE VOLTAGE (V) 0 0 5 10 15 20 VR, DC REVERSE VOLTAGE (V) Fig. 4 Total Capacitance vs. Reverse Voltage T J = 25°C TJ = -65°C 50 2.5 TA, DERATED AMBIENT TEMPERATURE (°C) 200 IF(AV), AVERAGE FORWARD CURRENT (A) 2.0 150 Note 2 1.5 100 1.0 50 0.5 0 0 100 125 50 75 TL, LEAD TEMPERATURE (°C) Fig. 5 Forward Current Derating Curve 25 150 0 0 10 VR, DC REVERSE VOLTAGE (V) Fig. 6 Operating Temperature Derating 20 PowerDI is a registered trademark of Diodes Incorporated. 2 of 3 PD3S220L Document number: DS31733 Rev. 1 - 2 February 2009 © Diodes Incorporated www.diodes.com PD3S220L Ordering Information Part Number PD3S220L-7 Notes: (Note 5) Case ® PowerDI 323 Packaging 3000/Tape & Reel 5. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information 24 = Product Type Marking Code YM = Date Code Marking Y = Year (ex: W = 2009) M = Month (ex: 9 = September) N EW PRODUCT 24 Date Code Key Year Code Month Code 2009 W Jan 1 Feb 2 2010 X Mar 3 Apr 4 YM 2011 Y 2012 Z Jun 6 Jul 7 2013 A Aug 8 Sep 9 2014 B Oct O Nov N 2015 C Dec D May 5 Package Outline Dimensions C B D H L L E L1 L1 L4 L3 A E1 PowerDI 323 Dim Min Max Typ A 2.40 2.60 2.50 B 1.85 1.95 1.90 C 1.20 1.30 1.25 D 0.60 0.70 0.65 E 0.78 0.98 0.88 E1 0.50 0.70 0.60 H 0.08 0.18 0.13 L 0.20 0.40 0.30 L1 1.40 ⎯ ⎯ L3 0.20 ⎯ ⎯ L4 0.40 0.80 0.60 All Dimensions in mm ® Suggested Pad Layout X1 G X2 Y2 Y1 Dimensions G X1 X2 Y1 Y2 Value (in mm) 0.5 2.0 0.8 0.8 1.1 IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. PowerDI is a registered trademark of Diodes Incorporated. 3 of 3 PD3S220L Document number: DS31733 Rev. 1 - 2 February 2009 © Diodes Incorporated www.diodes.com
