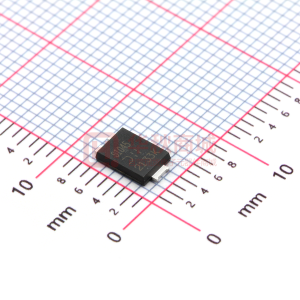

PDS1045

SPICE MODEL: PDS1045 PDS1045 10A SCHOTTKY BARRIER RECTIFIER PowerDI ä5 Features · · · · · · · Guard Ring Die Construction for Transient Protection Very Low Forward Voltage Drop High Forward Surge Current Capability For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Applications Lead Free Finish, RoHS Compliant (Note 1) "Green" Molding Compound (No Br, Sb) Qualified to AEC-Q101 Standards for High Reliability b1 L1 e b1 D D2 b2 L E2 E NEW PRODUCT D b2 L1 A A2 PowerDIä5 Dim Min 1.05 0.33 0.80 1.70 3.90 6.40 5.30 0.75 0.50 1.20 Max 1.15 0.43 0.99 1.88 4.05 6.60 5.45 0.95 0.65 1.50 A A2 b1 b2 D D2 E e E1 E2 L L1 W E E1 A2 Mechanical Data · · · · · · · Case: PowerDIä5 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020C Terminals: Finish – Matte Tin annealed over Copper leadframe. Solderable per MIL-STD-202, Method 208 e3 Polarity: See Diagram Marking: See Page 3 Weight: 0.096 grams (approximate) LEFT PIN RIGHT PIN 3.05 NOM 1.84 NOM 3.55 NOM W L1 e b1 b1 BOTTOMSIDE HEAT SINK All Dimensions in mm Note: Pins Left & Right must be electrically connected at the printed circuit board. Maximum Ratings @ TA = 25°C unless otherwise specified Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Output Current (see also Figure 4) Non-Repetitive Peak Forward Surge Current 8.3ms Single half sine-wave Superimposed on Rated Load Operating Junction TemperatureRange Storage Temperature Range VR £ 80% VRRM VR £ 50% VRRM Symbol VRRM VRWM VR VR(RMS) IO IFSM Tj TSTG Value 45 32 10 275 -65 to +125 -65 to +150 -65 to +150 Unit V V A A °C °C Thermal Characteristics Characteristic @ TA = 25°C unless otherwise specified Symbol RqJS RqJA RqJA RqJA Typ ¾ 85 65 50 Max 0.8 ¾ ¾ ¾ Unit °C/W °C/W °C/W °C/W Thermal Resistance Junction to Soldering Point Thermal Resistance Junction to Ambient Air (Note 2) Thermal Resistance Junction to Ambient Air (Note 3) Thermal Resistance Junction to Ambient Air (Note 4) Notes: 1. 2. 3. 4. RoHS revision 13.2.2003. Glass and High Temperature Solder Exemptions Applied, see EU Directive Annex Notes 5 and 7. FR-4 PCB, 2 oz. Copper, minimum recommended pad layout per http://www.diodes.com/datasheets/ap02001.pdf. Polymide PCB, 2 oz. Copper, minimum recommended pad layout per http://www.diodes.com/datasheets/ap02001.pdf. Polymide PCB, 2 oz. Copper. Cathode pad dimensions 9.4mm x 7.2mm. Anode pad dimensions 2.7mm x 1.6mm. DS30539 Rev. 10 - 2 PowerDI is a trademark of Diodes Incorporated. 1 of 3 www.diodes.com PDS1045 ã Diodes Incorporated Electrical Characteristics @ TA = 25°C unless otherwise specified Symbol V(BR)R VF Min 45 ¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ Typ ¾ 0.40 0.45 0.29 0.37 0.03 10 0.1 65 Max ¾ 0.45 0.51 0.35 0.43 0.3 25 0.6 150 Unit V V Test Condition IR = 600mA IF = 5A, TS = 25°C IF = 10A, TS = 25°C IF = 5A, TS = 125°C IF = 10A, TS = 125°C TS = 25°C, VR = 35V TS = 100°C, VR = 35V TS = 25°C, VR = 45V TS = 125°C, VR = 45V NEW PRODUCT Characteristic Reverse Breakdown Voltage (Note 5) Forward Voltage Reverse Leakage Current (Note 5) IR mA Notes: 5. Short duration test pulse used to minimize self-heating effect. 6. Polymide PCB, 2 oz. Copper. Cathode pad dimensions 16.0mm x 12.4mm. Anode pad dimensions 4.7mm x 2.7mm. IR, INSTANTANEOUS REVERSE CURRENT (A) IF, INSTANTANEOUS FORWARD CURRENT (A) 100 10 1 100m 10m 1m Tj = 85°C 100m Tj = 125°C 10m 1m Tj = 85°C Tj = 125°C Tj = 25°C Tj = 25°C 100n 10n Tj = -65°C Tj = -65°C 1n 0 15 30 45 VR, INSTANTANEOUS REVERSE VOLTAGE (V) Fig. 2 Typical Reverse Characteristics 12.5 0 0.1 0.2 0.3 0.4 0.5 0.6 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 1 Typical Forward Characteristics 1900 IF, DC FORWARD CURRENT (A) CT, TOTAL CAPACITANCE (pF) 1700 1500 1300 1100 900 700 500 300 100 0 5 10 15 20 f = 1MHz 10.0 Note 6 7.5 5.0 Note 2 2.5 25 30 0 0 25 50 75 100 125 150 175 TA, AMBIENT TEMPERATURE (°C) Fig. 4 DC Forward Current Derating VR, REVERSE VOLTAGE (V) Fig. 3 Typical Total Capacitance vs. Reverse Voltage DS30539 Rev. 10 - 2 PowerDI is a trademark of Diodes Incorporated. 2 of 3 www.diodes.com PDS1045 6.0 200 IPK = 1 (DC) IAV TA, DERATED AMBIENT TEMPERATURE (°C) NEW PRODUCT 180 160 140 120 100 80 60 40 20 0 0 5 10 15 30 35 40 Note 2 Note 7 PF(AV), AVERAGE FORWARD POWER DISSIPATION (W) 4.5 3.0 1.5 0 0 12 15 6 9 3 IF(AV), AVERAGE FORWARD CURRENT (A) Fig. 5 Forward Power Dissipation 20 25 45 VR, DC REVERSE VOLTAGE (V) Fig. 6 Operating Temperature Derating Ordering Information Device PDS1045-13 Notes: 2. 3. 4. 5. 6. 7. 8. (Note 8) Packaging PowerDIä5 Shipping 5000/Tape & Reel FR-4 PCB, 2 oz. Copper, minimum recommended pad layout per http://www.diodes.com/datasheets/ap02001.pdf. Polymide PCB, 2 oz. Copper, minimum recommended pad layout per http://www.diodes.com/datasheets/ap02001.pdf. Polymide PCB, 2 oz. Copper. Cathode pad dimensions 13.2mm x 10.1mm. Anode pad dimensions 4.0mm x 2.2mm. Short duration test pulse used to minimize self-heating effect. Polymide PCB, 2 oz. Copper. Cathode pad dimensions 16.0mm x 12.4mm. Anode pad dimensions 4.7mm x 2.7mm. Devices mounted such that RqJA @ 19°C/W. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information S1045 YYWWK S1045 = Product type marking code = Manufacturers’ code marking YYWW = Date code marking YY = Last two digits of year ex: 05 for 2005 WW = Week code 01 to 52 K = Factory designator DS30539 Rev. 10 - 2 PowerDI is a trademark of Diodes Incorporated. 3 of 3 www.diodes.com PDS1045
