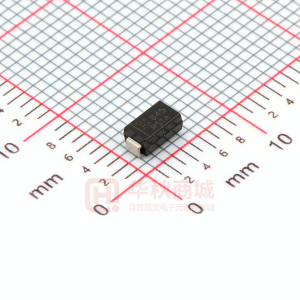

RS1A-13-F

SPICE MODELS: RS1A RS1B RS1D RS1G RS1J RS1K RS1M RS1AB RS1BB RS1DB RS1GB RS1JB RS1KB RS1MB RS1A/B - RS1M/B 1.0A SURFACE MOUNT FAST RECOVERY RECTIFIER Features · · · · · Glass Passivated Die Construction Fast Recovery Time For High Efficiency Surge Overload Rating to 30A Peak Ideally Suited for Automated Assembly Lead Free Finish/RoHS Compliant (Note 4) B Dim SMA Min 2.29 4.00 1.27 0.15 4.80 0.10 0.76 2.01 Max 2.92 4.60 1.63 0.31 5.59 0.20 1.52 2.30 SMB Min 3.30 4.06 1.96 0.15 5.00 0.10 0.76 2.00 Max 3.94 4.57 2.21 0.31 5.59 0.20 1.52 2.40 Mechanical Data · · · · · · · · · Case: SMA/SMB Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020C Terminals: Lead Free Plating (Matte Tin Finish). Solderable per MIL-STD-202, Method 208 e3 Polarity: Cathode Band or Cathode Notch Marking Information: See Page 3 Ordering Information: See Page 3 SMA Weight: 0.064 grams (approximate) SMB Weight: 0.093 grams (approximate) A C A B C D E G D J H G E H J A, B, D, G, J, K, M Suffix Designates SMA Package AB, BB, DB, GB, JB, KB, MB Suffix Designates SMB Package Maximum Ratings and Electrical Characteristics Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage (Note 5) RMS Reverse Voltage Average Rectified Output Current @ TT = 120°C Non-Repetitive Peak Forward Surge Current, 8.3ms single half sine-wave Superimposed on Rated Load Forward Voltage Drop Peak Reverse Current at Rated DC Blocking Voltage (Note 5) Reverse Recovery Time (Note 3) Typical Total Capacitance (Note 2) Typical Thermal Resistance, Junction to Terminal (Note 1) Operating and Storage Temperature Range Notes: 1. 2. 3. 4. 5. @ TA = 25°C unless otherwise specified Symbol VRRM VRWM VR VR(RMS) IO IFSM VFM IRM trr CT RqJT Tj, TSTG RS1 A/AB 50 35 RS1 B/BB 100 70 RS1 D/DB 200 140 RS1 G/GB 400 280 1.0 30 1.3 5.0 200 RS1 J/JB 600 420 RS1 K/KB 800 560 RS1 M/MB 1000 700 Unit V V A A V µA @ IF = 1.0A @ TA = 25°C @ TA = 125°C 150 15 20 -65 to +150 250 500 ns pF °C/W °C Valid provided that terminals are kept at ambient temperature. Measured at 1.0MHz and applied reverse voltage of 4.0V DC. Reverse recovery test conditions: IF = 0.5A, IR = 1.0A, Irr = 0.25A. See figure 5. RoHS revision 13.2.2003. Glass and high temperature solder exemptions applied, see EU Directive Annex Notes 5 and 7. Short duration pulse test used to minimize self-heating effect. DS15002 Rev. 11 - 2 1 of 3 www.diodes.com RS1A/B - RS1M/B ã Diodes Incorporated 1.0 IF, INSTANTANEOUS FORWARD CURRENT (A) 1.2 10 IO, AVERAGE RECTIFIED CURRENT (A) 0.8 1.0 0.6 0.4 0.1 0.2 Tj = 25 C o 0 25 50 75 100 125 150 175 TT, TERMINAL TEMPERATURE (° C) Fig. 1 Forward Current Derating Curve 0.01 0 0.4 0.8 1.2 1.6 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 2 Typical Forward Characteristics IFSM, PEAK FORWARD SURGE CURRENT (A) 30 Single Half-Sine-Wave 1000 Tj = 125° C Tj = 150°C 100 20 10 10 1.0 Tj = 25°C 0 1 10 100 NUMBER OF CYCLES AT 60Hz Fig. 3 Forward Surge Current Derating Curve 0.1 0 20 40 60 80 100 120 140 PERCENT OF RATED PEAK REVERSE VOLTAGE (%) Fig. 4 Typical Reverse Characteristics trr +0.5A Device Under Test (-) Pulse Generator (Note 2) Oscilloscope (Note 1) 0A (+) 50V DC Approx -0.25A (-) (+) -1.0A Set time base for 50/100 ns/cm Fig. 5 Reverse Recovery Time Characteristic and Test Circuit DS15002 Rev. 11 - 2 2 of 3 www.diodes.com RS1A/B - RS1M/B Ordering Information Device* RS1x-13-F RS1xB-13-F (Note 6) Packaging SMA SMB Shipping 5000/Tape & Reel 3000/Tape & Reel * x = Device type, e.g. RS1D-13-F (SMA package); RS1JB-13-F (SMB package). Notes: 6. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information YWW RS1X(B) RS1X = Product Type Marking Code, ex: RS1G (SMA package) RS1XB = Product Type Marking Code, ex: RS1GB (SMB package) = Manufacturer’s Code Marking YWW = Date Code Marking Y = Last Digit of Year ex: 6 for 2006 WW = Week code 01 to 52 IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. DS15002 Rev. 11 - 2 3 of 3 www.diodes.com RS1A/B - RS1M/B
