S1A

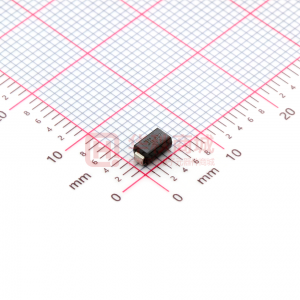

SPICE MODEL: S1A S1B S1D S1G S1J S1K S1M S1AB S1BB S1DB S1GB S1JB S1KB S1MB S1A/B - S1M/B 1.0A SURFACE MOUNT GLASS PASSIVATED RECTIFIER Features • • • • Glass Passivated Die Construction Low Forward Voltage Drop and High Current Capability Surge Overload Rating to 30A Peak Ideally Suited for Automated Assembly Lead Free Finish/RoHS Compliant (Note 3) B SMA Dim Min Max SMB Min 3.30 4.06 1.96 0.15 5.00 0.10 0.76 2.00 Max 3.94 4.57 2.21 0.31 5.59 0.20 1.52 2.40 • A C A B C 2.29 2.92 4.00 4.60 1.27 1.63 0.15 0.31 4.80 5.59 0.10 0.20 0.76 1.52 2.01 2.30 Mechanical Data • • • • • • • • Case: SMA/SMB Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020C Terminals: Lead Free Plating (Matte Tin Finish). Solderable per MIL-STD-202, Method 208 Polarity: Cathode Band or Cathode Notch Marking: Type Number, See Page 3 Ordering Information: See Page 3 SMA Weight: 0.064 grams (approximate) SMB Weight: 0.093 grams (approximate) D J D E H G E G H J • All Dimensions in mm A, B, D, G, J, K, M Suffix Designates SMA Package AB, BB, DB, GB, JB, KB, MB Suffix Designates SMB Package Maximum Ratings and Electrical Characteristics Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Output Current @ TT = 100°C Non-Repetitive Peak Forward Surge Current 8.3ms Single half sine-wave superimposed on rated load Forward Voltage @ IF = 1.0A Peak Reverse Leakage Current at Rated DC Blocking Voltage Maximum Reverse Recovery Time (Note 4) Typical Total Capacitance (Note 1) @ TA = 25°C @ TA = 125°C Symbol VRRM VRWM VR VR(RMS) IO IFSM VFM IRM trr CT RθJT Tj, TSTG @TA = 25°C unless otherwise specified S1 A/AB 50 35 S1 B/BB 100 70 S1 D/DB 200 140 S1 G/GB 400 280 1.0 30 1.1 5.0 100 2.0 10 30 -65 to +150 S1 J/JB 600 420 S1 K/KB 800 560 S1 M/MB 1000 700 Unit V V A A V μA μs pF °C/W °C Typical Thermal Resistance, Junction to Terminal (Note 2) Operating and Storage Temperature Range Notes: 1. 2. 3. 4. Measured at 1.0MHz and applied reverse voltage of 4.0V DC. Thermal resistance junction to terminal, unit mounted on PC board with 5.0 mm2 (0.013 mm thick) copper pads as heat sink. RoHS revision 13.2.2003. Glass and high temperature solder exemptions applied, see EU Directive Annex Notes 5 and 7. Measured with IF = 0.5A, IR = 1.0A, IRR = 0.25A. DS16003 Rev. 16 - 2 1 of 3 www.diodes.com S1A/B – S1M/B © Diodes Incorporated 0.8 IF, INSTANTANEOUS FORWARD CURRENT (A) 1.0 IF, AVERAGE FORWARD CURRENT (A) 10 1.0 0.6 0.4 0.1 0.2 Resistive or inductive load 0 40 0.01 0 0.4 0.8 1.2 1.6 60 80 100 120 140 160 180 TT, TERMINAL TEMPERATURE (°C) Fig. 1 Forward Current Derating Curve VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 2 Typical Forward Characteristics 30 IFSM, PEAK FORWARD SURGE CURRENT (A) 1000 25 100 Tj = 125° C 20 10 15 1.0 Tj = 25° C 10 0.1 5 1 10 NUMBER OF CYCLES @ 60Hz Fig. 3 Typical Forward Characteristics 100 0.01 0 40 80 120 PERCENT OF RATED PEAK REVERSE VOLTAGE (%) Fig. 4 Typical Reverse Characteristics DS16003 Rev. 16 - 2 2 of 3 www.diodes.com S1A/B – S1M/B © Diodes Incorporated Ordering Information Device S1x-13-F S1xB-13-F (Note 5) Packaging SMA SMB Shipping 5000/Tape & Reel 3000/Tape & Reel * x = Device type, e.g. S1A-13-F (SMA package); S1AB-13-F (SMB package). Notes: 5. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information YWW XXX(X) XXX = Product type marking code, ex: S1A (SMA package) XXXX = Product type marking code, ex: S1AB (SMB package) = Manufacturers’ code marking YWW = Date code marking Y = Last digit of year ex: 2 for 2002 WW = Week code 01 to 52 IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. DS16003 Rev. 16 - 2 3 of 3 www.diodes.com S1A/B – S1M/B © Diodes Incorporated
