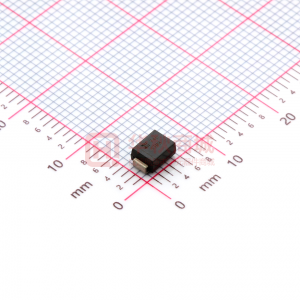

S3MB

SPICE MODELS: S3A S3B S3D S3G S3K S3M S3AB S3BB S3DB S3GB S3KB S3MB S3A/B - S3M/B 3.0A SURFACE MOUNT GLASS PASSIVATED RECTIFIER Features · · · · · Glass Passivated Die Construction Low Forward Voltage Drop and High Current Capability Surge Overload Rating to 100A Peak Ideally Suited for Automatic Assembly Lead Free Finish/RoHS Compliant (Note 3) SMB Min 3.30 4.06 1.96 0.15 5.00 0.10 0.76 2.00 Max 3.94 4.57 2.21 0.31 5.59 0.20 1.52 2.62 SMC Min 5.59 6.60 2.75 0.15 7.75 0.10 0.76 2.00 Max 6.22 7.11 3.18 0.31 8.13 0.20 1.52 2.62 B Dim A A C B C D Mechanical Data · · · · · · · · Case: SMB/SMC Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020C Terminals: Lead Free Plating (Matte Tin Finish). Solderable per MIL-STD-202, Method 208 e3 Polarity: Cathode Band or Cathode Notch Marking: Type Number & Date Code, See Page 2 Ordering Information: See Page 2 Weight: SMB 0.093 grams (approximate) SMC 0.21 grams (approximate) D J E G H H G E J All Dimensions in mm AB, BB, DB, GB, JB, KB, MB Suffix Designates SMB Package A, B, D, G, J, K, M Designates SMC Package Maximum Ratings and Electrical Characteristics Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Output Current @ TT = 75°C Non-Repetitive Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load Forward Voltage Peak Reverse Current at Rated DC Blocking Voltage Typical Total Capacitance (Note 1) Typical Thermal Resistance Junction to Terminal (Note 2) Operating and Storage Temperature Range Notes: @ TA = 25°C unless otherwise specified Symbol VRRM VRWM VR VR(RMS) IO IFSM VFM IRM CT RqJT Tj, TSTG S3 A/AB 50 30 S3 B/BB 100 70 S3 D/DB 200 140 S3 G/GB 400 280 3.0 100 1.15 10 250 40 10 -65 to +150 S3 J/JB 600 420 S3 K/KB 800 560 S3 M/MB 1000 700 Unit V V A A V µA pF °C/W °C @ IF = 3.0A @ TA = 25°C @ TA = 125 °C 1. Measured at 1.0 MHz and applied reverse voltage of 4.0V DC. 2. Thermal resistance: Junction to Terminal, unit mounted on PC board with 5.0 mm2 (0.013 mm thick) copper pad as heat sink. 3. RoHS revision 13.2.2003. Glass and High Temperature Solder Exemptions Applied, see EU Directive Annex Notes 5 and 7. DS16005 Rev. 12 - 2 1 of 3 www.diodes.com S3A/B-S3M/B ã Diodes Incorporated Ordering Information Device* S3xB-13-F S3x-13-F (Note 4) Packaging SMB SMC Shipping 3000/Tape & Reel *x = Device type, e.g. S3AB-13-F (SMB package); S3A-13-F (SMC Package). Notes: 4. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information YWW XXXX 3.0 XXXX = Product type marking code, ex. S5KC = Manufacturers’ code marking YWW = Date code marking Y = Last digit of year ex: 2 for 2002 WW = Week code 01 to 52 IF, INSTANTANEOUS FORWARD CURRENT (A) IAV, AVERAGE FORWARD CURRENT (A) Resistive or Inductive Load 10 2.5 2.0 1.0 1.5 1.0 0.1 0.5 0 25 50 75 100 125 150 0.01 0 0.4 0.8 1.2 1.6 2.0 TT, TERMINAL TEMPERATURE (ºC) Fig. 1 Forward Current Derating Curve VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 2 Typical Forward Characteristics 1000 120 IFSM, PEAK FORWARD SURGE CURRENT (A) Single Half-Sine-Wave 100 100 Tj = 125°C 80 10 60 1.0 40 0.1 Tj = 25°C 20 0.01 0 1 10 NUMBER OF CYCLES AT 60 Hz Fig. 3 Forward Surge Current Derating Curve 100 0 20 40 60 80 100 120 140 PERCENT OF RATED PEAK REVERSE VOLTAGE (%) Fig. 4 Typical Reverse Characteristics DS16005 Rev. 12 - 2 2 of 3 www.diodes.com S3A/B-S3M/B IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. DS16005 Rev. 12 - 2 3 of 3 www.diodes.com S3A/B-S3M/B
