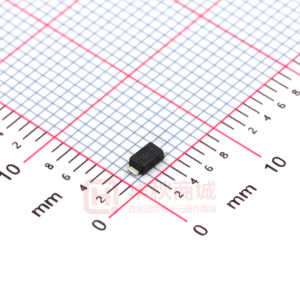

SBR1U200P1-7

SBR1U200P1 1.0A SBR® SURFACE MOUNT SUPER BARRIER RECTIFIER PowerDI®123 Features • • • • • Ultra Low Forward Voltage Drop Low Leakage Current Superior Reverse Avalanche Capability Excellent High Temperature Stability Patented Interlocking Clip Design for High Surge Current Capacity Patented Super Barrier Rectifier Technology Soft, Fast Switching Capability 150ºC Operating Junction Temperature Lead Free Finish, RoHS Compliant (Note 1) “Green” Molding Compound (No Br, Sb) Mechanical Data • • • • • • • • Case: PowerDI 123 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Polarity Indicator: Cathode Band Terminals: Finish - Matte Tin annealed over Copper leadframe. Solderable per MIL-STD-202, Method 208 Marking Information: See Page 3 Ordering Information: See Page 3 Weight: 0.018 grams (approximate) ® N EW PRODUCT • • • • • Top View Maximum Ratings @TA = 25°C unless otherwise specified Single phase, half wave, 60Hz, resistive or inductive load. For capacitance load, derate current by 20%. Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Output Current (See Figure 1) Non-Repetitive Peak Forward Surge Current 8.3ms Single Half Sine-Wave Superimposed on Rated Load Symbol VRRM VRWM VRM IO IFSM Value 200 1.0 40 Unit V A A Thermal Characteristics Characteristic Maximum Thermal Resistance Junction to Ambient (Note 2) Maximum Thermal Resistance Junction to Ambient (Note 3) Operating and Storage Temperature Range Symbol RθJA RθJA TJ, TSTG Value 217 138 -65 to +175 Unit ºC/W ºC/W ºC Electrical Characteristics Characteristic Forward Voltage Reverse Current (Note 4) Reverse Recovery Time Notes: @TA = 25°C unless otherwise specified Symbol VF IR trr Min Typ 0.75 0.60 Max 0.82 0.68 50 25 Unit V μA ns Test Condition IF = 1.0A, TJ = 25ºC IF = 1.0A, TJ = 125ºC VR = 200V, TJ = 25ºC IF = 0.5A, IR = 1A, IRR = 0.25A, 1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes. 2. FR-4 PCB, 2 oz. Copper, minimum recommended pad layout per http://www.diodes.com/datasheets/ap02001.pdf. 3. Polymide PCB, 2 oz. Copper, minimum recommended pad layout per http://www.diodes.com/datasheets/ap02001.pdf. 4. Short duration pulse test used to minimize self-heating effect. SBR and PowerDI are registered trademarks of Diodes Incorporated. 1 of 4 SBR1U200P1 Document number: DS32093 Rev. 2 - 2 August 2010 © Diodes Incorporated www.diodes.com SBR1U200P1 IF, INSTANTANEOUS FORWARD CURRENT (A) 1.0 0.9 PD, POWER DISSIPATION (W) 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 0.5 1.0 1.5 2.0 IF(AV), AVERAGE FORWARD CURRENT (A) Fig. 1 Forward Power Dissipation 1 0.1 TA = 150°C TA = 125°C 0.01 TA = 85°C N EW PRODUCT 0.001 TA = 25°C 0.0001 0 100 200 300 400 500 600 700 800 900 VF, INSTANTANEOUS FORWARD VOLTAGE (mV) Fig. 2 Typical Forward Characteristics IR, INSTANTANEOUS REVERSE CURRENT (µA) 1,000 1,000 f=1MHz T A = 150°C TA = 125°C 10 TA = 85°C CT, TOTAL CAPACITANCE (pF) 100 100 1 TA = 25°C 0.1 0.01 0 40 80 120 160 200 VR, INSTANTANEOUS REVERSE VOLTAGE (V) Fig. 3 Typical Reverse Characteristics 10 0.1 1 10 100 VR, DC REVERSE VOLTAGE (V) Fig. 4 Total Capacitance vs. Reverse Voltage 1.2 TA, DERATED AMBIENT TEMPERATURE (°C) 175 150 125 100 75 50 25 0 0 20 40 60 80 100 120 140 160 180 200 VR, DC REVERSE VOLTAGE (V) Fig. 6 Operating Temperature Derating IF(AV), AVERAGE FORWARD CURRENT (A) 1.0 Note 3 0.8 0.6 0.4 0.2 0 0 25 50 75 100 125 TA, AMBIENT TEMPERATURE (°C) Fig. 5 Forward Current Derating Curve 150 SBR and PowerDI are registered trademarks of Diodes Incorporated. 2 of 4 SBR1U200P1 Document number: DS32093 Rev. 2 - 2 August 2010 © Diodes Incorporated www.diodes.com SBR1U200P1 Ordering Information (Note 5) Part Number SBR1U200P1-7 Notes: Case ® PowerDI 123 Packaging 3000/Tape & Reel 5. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information N EW PRODUCT SDC = Product Type Marking Code YM = Date Code Marking Y = Year (ex: X = 2010) M = Month (ex: 9 = September) SDC Date Code Key Year Code Month Code 2009 W Jan 1 Feb 2 2010 X Mar 3 Apr 4 YM 2011 Y May 5 2012 Z Jun 6 Jul 7 2013 A Aug 8 Sep 9 2014 B Oct O Nov N 2015 C Dec D Package Outline Dimensions B C E D H L L1 E L2 PowerDI 123 Dim Min Max Typ A 3.50 3.90 3.70 B 2.60 3.00 2.80 C 1.63 1.93 1.78 D 0.93 1.00 0.98 E 0.85 1.25 1.00 H 0.15 0.25 0.20 L 0.55 0.75 0.65 L1 1.80 2.20 2.00 L2 0.95 1.25 1.10 All Dimensions in mm ® A Suggested Pad Layout X1 G X2 Y2 Y1 Dimensions G X1 X2 Y1 Y2 Value (in mm) 1.0 2.2 0.9 1.4 1.4 SBR and PowerDI are registered trademarks of Diodes Incorporated. 3 of 4 SBR1U200P1 Document number: DS32093 Rev. 2 - 2 August 2010 © Diodes Incorporated www.diodes.com SBR1U200P1 IMPORTANT NOTICE DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION). Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated website, harmless against all damages. Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel. Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized application. Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings noted herein may also be covered by one or more United States, international or foreign trademarks. LIFE SUPPORT Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express written approval of the Chief Executive Officer of Diodes Incorporated. As used herein: A. Life support devices or systems are devices or systems which: 1. are intended to implant into the body, or 2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the labeling can be reasonably expected to result in significant injury to the user. B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or to affect its safety or effectiveness. N EW PRODUCT Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems. Copyright © 2010, Diodes Incorporated www.diodes.com SBR and PowerDI are registered trademarks of Diodes Incorporated. 4 of 4 SBR1U200P1 Document number: DS32093 Rev. 2 - 2 August 2010 © Diodes Incorporated www.diodes.com
