SD05

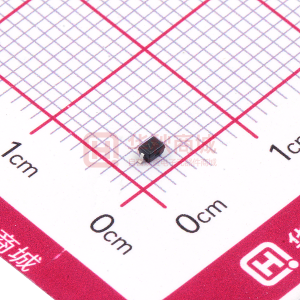

SD05 UNI-DIRECTIONAL SURFACE MOUNT TVS Features • • • • • • • 350 Watts Peak Pulse Power (tp = 8x20μs) IEC 61000-4-2 (ESD): Air – 15kV, Contact – 8kV IEC 61000-4-2 (ESD), HBM – 30kV Unidirectional Configuration Lead Free/RoHS Compliant (Note 3) “Green” Device (Note 4) Qualified to AEC-Q101 Standards for High Reliability Mechanical Data • • • • • • • • Case: SOD-323 Case Material: Molded Plastic, “Green” Molding Compound, Note 3. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Matte Tin Finish annealed over Alloy 42 leadframe (Lead Free Plating) Solderable per MIL-STD-202, Method 208 Polarity: Cathode Band Ordering Information: See Page 3 Marking Information: See Page 3 Weight: 0.0089 grams (approximate) 1 2 1 = Cathode 2 = Anode Top View Device Schematic Thermal Characteristics Characteristic Peak Pulse Power (tp = 8x20μs) Thermal Resistance, Junction to Ambient Operating and Storage Temperature Range (Note 6) TA = 25°C (Note 6) TA = 25°C Symbol Pp k RθJA TJ, TSTG Value 350 625 -55 to +150 Unit W °C/W °C Electrical Characteristics Breakdown Reverse Voltage Standoff Voltage VBR @ IT VRWM (V) Min (V) Max (V) 5 6.2 7.3 Notes: 1. 2. 3. 4. 5. 6. @TA = 25°C unless otherwise specified (Note 7) Max. Reverse Leakage @ VRWM (Note 5) IR (μA) 10 Max. Clamping Voltage @ IPP = 5A (Note 2) VC (V) 9.8 Max. Clamping Voltage VC @ IPP (Note 2) VC (V) 14.5 IPP (A) 24 Total Max Capacitance CT (Note 1) (pF) 350 Test Current IT (mA) 1.0 VR = 0V, f = 1MHz. Clamping voltage value is based on an 8x20 μs peak pulse current (Ipp) waveform. No purposefully added lead. Diodes Inc.’s “Green” policy can be found on our website at http://www.diodes.com/products/lead_free/index.php. Short duration pulse test used to minimize self-heating effect. Device mounted on FR-4 PC board with suggested pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. Measured across pin 1 and pin 2. SD05 Document number: DS31594 Rev. 4 - 2 1 of 4 www.diodes.com September 2010 © Diodes Incorporated SD05 100 300 270 f = 1MHz PEAK PULSE DERATING IN % OF PEAK POWER OR CURRENT 75 CT, TOTAL CAPACITANCE (pF) 240 210 180 150 120 90 60 30 50 25 0 0 25 50 75 100 125 150 175 TA, AMBIENT TEMPERATURE (°C) Fig. 1 Pulse Derating Curve 200 0 1 2 3 4 5 VR, REVERSE VOLTAGE (V) Fig. 2 Typical Total Capacitance vs. Reverse Voltage 0 100 IPP, PEAK PULSE CURRENT (%Ipp) 100 PPK, PEAK PULSE POWER (kW) 40 t, TIME (μs) Fig. 3 Pulse Waveform TA = 25°C Pulse Width 8.3ms Single Half-Sine-Wave 10 1.0 50 0.1 0 0 20 60 0.01 0.1 1.0 10 100 tp, PULSE WIDTH (µs) Fig. 4 Pulse Rating Curve 1,000 10 IFSM, PEAK FORWARD SURGE CURRENT (A) 1 1 10 100 NUMBER OF CYCLES Fig. 5 Maximum Non-Repetitive Surge Current SD05 Document number: DS31594 Rev. 4 - 2 2 of 4 www.diodes.com September 2010 © Diodes Incorporated SD05 Ordering Information (Note 8) Part Number SD05-7 Notes: Case SOD-323 Packaging 3000/Tape & Reel 8. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information ZA ZA = Product type marking code Package Outline Dimensions C H B A M L K J SOD-323 Dim Min Max A 0.25 0.35 B 1.20 1.40 C 2.30 2.70 H 1.60 1.80 J 0.00 0.10 K 1.0 1.1 L 0.20 0.40 M 0.10 0.15 0° 8° α All Dimensions in mm Suggested Pad Layout C X Dimensions Value (in mm) Z 3.75 G 1.05 X 0.65 Y 1.35 C 2.40 Y G Z SD05 Document number: DS31594 Rev. 4 - 2 3 of 4 www.diodes.com September 2010 © Diodes Incorporated SD05 IMPORTANT NOTICE DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDING TO THIS DOCUMENT, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION). Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated website, harmless against all damages. Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel. Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized application. Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings noted herein may also be covered by one or more United States, international or foreign trademarks. LIFE SUPPORT Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express written approval of the Chief Executive Officer of Diodes Incorporated. As used herein: A. Life support devices or systems are devices or systems which: 1. are intended to implant into the body, or 2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the labeling can be reasonably expected to result in significant injury to the user. B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or to affect its safety or effectiveness. Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems. Copyright © 2010, Diodes Incorporated www.diodes.com SD05 Document number: DS31594 Rev. 4 - 2 4 of 4 www.diodes.com September 2010 © Diodes Incorporated
