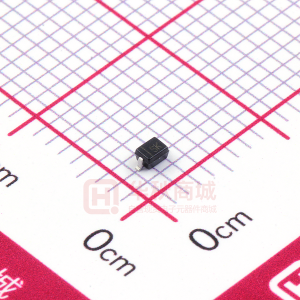

SD101CWS

SPICE MODELS: SD101AWS SD101BWS SD101CWS SD101AWS - SD101CWS Lead-free SURFACE MOUNT SCHOTTKY BARRIER DIODE Features · · · · · · Low Forward Voltage Drop Guard Ring Construction for Transient Protection Negligible Reverse Recovery Time Low Capacitance Ultra-small Surface Mount Package Lead Free/RoHS Compliant Version (Note 2) H G A B D SOD-323 Dim Min 2.30 1.60 1.20 0.25 0.20 0.10 0° Max 2.70 1.80 1.40 0.35 0.40 0.15 8° A B C D E G C E J Mechanical Data · · · · · · · · · · · Case: SOD-323 Case material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020C Polarity: Cathode Band Leads: Solderable per MIL-STD-202, Method 208 Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe). Marking: See Page 3 SD101AWS Marking Code: S1 or SK SD101BWS Marking Code: S2 or SK SD101CWS Marking Code: S3 or SC or SK Weight: 0.004 grams (approximate) 1.05 Typical H J a 0.05 Typical All Dimensions in mm Maximum Ratings @ TA = 25°C unless otherwise specified Symbol VRRM VRWM VR VR(RMS) IFM @ t £ 1.0s @ t = 10ms IFSM PD RqJA Tj, TSTG SD101AWS 60 42 SD101BWS 50 35 15 50 2.0 200 625 -65 to +125 SD101CWS 40 28 Unit V V mA mA A mW °C/W °C Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Forward Continuous Current (Note 1) Non-Repetitive Peak Forward Surge Current Power Dissipation (Note 1) Thermal Resistance, Junction to Ambient Air (Note 1) Operating and Storage Temperature Range Note: 1. Part mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. 2. No purposefully added lead. DS30078 Rev. 8 - 2 1 of 3 www.diodes.com SD101AWS - SD101CWS ã Diodes Incorporated Electrical Characteristics Characteristic Reverse Breakdown Voltage (Note 3) @ TA = 25°C unless otherwise specified Symbol SD101AWS SD101BWS SD101CWS SD101AWS SD101BWS SD101CWS SD101AWS SD101BWS SD101CWS SD101AWS SD101BWS SD101CWS SD101AWS SD101BWS SD101CWS V(BR)R Min 60 50 40 Max ¾ 0.41 0.40 0.39 1.00 0.95 0.90 200 2.0 2.1 2.2 1.0 Unit V Test Condition IR = 10mA IR = 10mA IR = 10mA IF = 1.0mA IF = 1.0mA IF = 1.0mA IF = 15mA IF = 15mA IF = 15mA VR = 50V VR = 40V VR = 30V VR = 0V, f = 1.0MHz IF = IR = 5.0mA, Irr = 0.1 x IR, RL = 100W Forward Voltage Drop VFM ¾ V Peak Reverse Current (Note 3) IRM ¾ ¾ ¾ nA Total Capacitance CT trr pF ns Reverse Recovery Time Notes: 3. Short duration test pulse used to minimize self-heating effect. IF, INSTANTANEOUS FORWARD CURRENT (mA) 100 TA = 125ºC TA = 75ºC TA = 25ºC 10 1.0 TA = 0ºC 0.1 0 0.2 0.4 TA = -40ºC 0.6 0.8 1.0 1.2 1.4 1.6 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 1 Typical Forward Characteristics IR, INSTANTANEOUS REVERSE CURRENT (nA) 10000 TA = 125ºC 1000 TA = 75ºC 100 TA = 25ºC 10 TA = 0ºC 1 TA = -40ºC 0.1 0 10 20 30 40 50 60 VR, REVERSE VOLTAGE (V) Fig. 2 Typical Reverse Characteristics DS30078 Rev. 8 - 2 2 of 3 www.diodes.com SD101AWS - SD101CWS 1.8 1.6 250 f = 1.0MHz PD, POWER DISSIPATION (mW) 40 CT, TOTAL CAPACITANCE (pF) 1.4 1.2 1.0 0.8 0.6 0.4 0.2 0 0 5 10 15 20 25 30 35 200 150 100 50 0 0 40 80 120 160 200 TA, AMBIENT TEMPERATURE (° C) Fig. 4 Power Derating Curve VR, REVERSE VOLTAGE (V) Fig. 3 Typical Capacitance Ordering Information Device SD101AWS-7-F SD101BWS-7-F SD101CWS-7-F Notes: (Note 4) Packaging SOD-323 SOD-323 SOD-323 Shipping 3000/Tape & Reel 3000/Tape & Reel 3000/Tape & Reel 4. For Packaging Details, go to our website at: http://www.diodes.com/datasheets/ap02007.pdf. Marking Information XX XX = Product Type Marking Code (See Page 1) IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. DS30078 Rev. 8 - 2 3 of 3 www.diodes.com SD101AWS - SD101CWS
