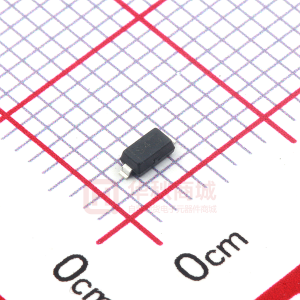

SD103BW

SPICE MODELS: SD103AW SD103BW SD103CW SD103AW - SD103CW SCHOTTKY BARRIER SWITCHING DIODE Features • • • • • Low Forward Voltage Drop Guard Ring Construction for Transient Protection Negligible Reverse Recovery Time Very Low Reverse Capacitance Lead Free/RoHS Compliant (Note 3) SOD-123 Dim A B C D E G H J α Min 3.55 2.55 1.40 — 0.45 0.25 Max 3.85 2.85 1.70 1.35 0.65 — Mechanical Data • • • • • • • • Case: SOD-123 Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020C Leads: Solderable per MIL-STD-202, Method 208 Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe) Polarity: Cathode Band Marking: Date Code and Type Code, See Page 3 Type Codes: SD103AW S4 SD103BW S5 or S4 SD103CW S6 or S5 or S4 Ordering Information: See Page 3 Weight: 0.01 grams (approximate) @TA = 25°C unless otherwise specified Symbol VRRM VRWM VR VR(RMS) IFM IFSM Pd RθJA Tj, TSTG SD103AW 40 28 SD103BW 30 21 350 1.5 400 300 -65 to +125 0.55 Typical 0.11 Typical — 0° 0.10 8° All Dimensions in mm • • Maximum Ratings Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Forward Continuous Current (Note 1) Non-Repetitive Peak Forward Surge Current @ t ≤ 1.0s Power Dissipation (Note 1) Thermal Resistance, Junction to Ambient Air (Note 1) Operating and Storage Temperature Range SD103CW 20 14 Unit V V mA A mW °C/W °C Electrical Characteristics Characteristic Reverse Breakdown Voltage (Note 2) @TA = 25°C unless otherwise specified Symbol SD103AW SD103BW SD103CW V(BR)R VFM SD103AW SD103BW SD103CW IRM CT trr Min 40 30 20 ⎯ ⎯ ⎯ ⎯ Typ ⎯ ⎯ ⎯ 28 10 Max ⎯ 0.37 0.60 5.0 ⎯ ⎯ Unit V V μA pF ns Test Condition IR = 100μA IF = 20mA IF = 200mA VR = 30V VR = 20V VR = 10V VR = 0V, f = 1.0MHz IF = IR = 200mA, Irr = 0.1 x IR, RL = 100Ω Forward Voltage Drop Peak Reverse Current (Note 2) Total Capacitance Reverse Recovery Time Notes: 1. 2. 3. Part mounted on FR-4 board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. Short duration test pulse used to minimize self-heating effect. No purposefully added lead. DS11013 Rev. 21 - 2 1 of 3 www.diodes.com SD103AW-SD103CW © Diodes Incorporated DS11013 Rev. 21 - 2 2 of 3 www.diodes.com SD103AW-SD103CW © Diodes Incorporated Ordering Information (Note 4) Device SD103AW-7-F SD103BW-7-F SD103CW-7-F Notes: 4. Packaging SOD-123 SOD-123 SOD-123 Shipping 3000/Tape and Reel 3000/Tape and Reel 3000/Tape and Reel For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information XX = Product Type Marking Code, See Page 1 YM = Date Code Marking Y = Year (ex: T = 2006) M = Month (ex: 9 = September) Date Code Key Year 1998 Code J Month Code 1999 K 2000 L Jan 1 2001 M Feb 2 2002 N Mar 3 2003 P Apr 4 2004 R May 5 2005 S Jun 6 2006 T Jul 7 2007 U Aug 8 2008 V 2009 W Sep 9 2010 X Oct O 2011 Y Nov N 2012 Z Dec D IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. DS11013 Rev. 21 - 2 3 of 3 www.diodes.com SD103AW-SD103CW © Diodes Incorporated
