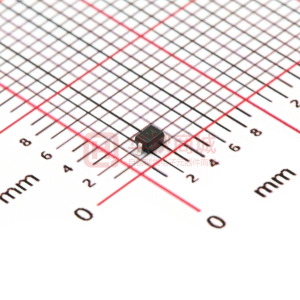

SD103CWS

SPICE MODELS: SD103AWS SD103BWS SD103CWS SD103AWS - SD103CWS SURFACE MOUNT SCHOTTKY BARRIER DIODE Features • • • • • • • Low Forward Voltage Drop Guard Ring Construction for Transient Protection Negligible Reverse Recovery Time Low Reverse Capacitance Ultra-Small Surface Mount Package Lead Free/RoHS Compliant (Note 3) Qualified to AEC-Q101 Standards for High Reliability (Only for SD103AWS-7-F) SOD-323 Dim A B C D E G H J α Min 2.30 1.60 1.20 Max 2.70 1.80 1.40 1.05 Typical 0.25 0.20 0.10 0° 0.35 0.40 0.15 8° Mechanical Data • • • • • • • • • Case: SOD-323 Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020C Leads: Solderable per MIL-STD-202, Method 208 Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe). Polarity: Cathode Band Type Codes: SD103AWS S4 SD103BWS S5 or S4 SD103CWS S6 or S5 or S4 Marking Information: See Page 3 Ordering Information: See Page 3 Weight: 0.004 grams (approximate) @TA = 25°C unless otherwise specified Symbol VRRM VRWM VR VR(RMS) IFM @ t ≤ 1.0s IFSM Pd RθJA Tj, TSTG SD103AWS 40 28 SD103BWS 30 21 350 1.5 200 625 -65 to +125 0.05 Typical All Dimensions in mm • Maximum Ratings Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Forward Continuous Current (Note 1) Non-Repetitive Peak Forward Surge Current Power Dissipation (Note 1) Thermal Resistance, Junction to Ambient Air (Note 1) Operating and Storage Temperature Range SD103CWS 20 14 Unit V V mA A mW °C/W °C Electrical Characteristics Characteristic Reverse Breakdown Voltage (Note 2) Forward Voltage Drop Peak Reverse Current (Note 2) Total Capacitance Reverse Recovery Time Note: 1. 2. 3. @TA = 25°C unless otherwise specified Symbol SD103AWS SD103BWS SD103CWS V(BR)R VF SD103AWS SD103BWS SD103CWS IR CT trr Min 40 30 20 ⎯ ⎯ ⎯ ⎯ Typ ⎯ ⎯ ⎯ 28 10 Max ⎯ 0.37 0.60 5.0 ⎯ ⎯ Unit V V µA pF ns Test Conditions IR = 100µA IR = 100µA IR = 100µA IF = 20mA IF = 200mA VR = 30V VR = 20V VR = 10V VR = 0V, f = 1.0MHz IF = IR = 200mA, Irr = 0.1 x IR, RL = 100Ω Part mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. Short duration test pulse used to minimize self-heating effect. No purposefully added lead. DS30101 Rev. 14 - 2 1 of 3 www.diodes.com SD103AWS – SD103CWS © Diodes Incorporated DS30101 Rev. 14 - 2 2 of 3 www.diodes.com SD103AWS – SD103CWS © Diodes Incorporated Ordering Information Device SD103AWS-7-F SD103BWS-7-F SD103CWS-7-F Notes: 4. (Note 4) Packaging SOD-323 SOD-323 SOD-323 Shipping 3000/Tape & Reel 3000/Tape & Reel 3000/Tape & Reel For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information XX = Product Type Marking Code, See Page 1 IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. DS30101 Rev. 14 - 2 3 of 3 www.diodes.com SD103AWS – SD103CWS © Diodes Incorporated
