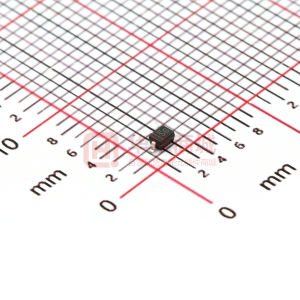

SD107WS
Lead-free
SURFACE MOUNT SCHOTTKY BARRIER DIODE
Features
· · · · · · · · · · · · · ·
Low Forward Voltage Drop Guard Ring Die Construction for Transient Protection Ideal for low logic level applications Low Capacitance Lead Free/RoHS Compliant (Note 3)
H G A B D
SOD-323 Dim A
J
Min 2.30 1.60 1.20 0.25 0.20 0.10 0°
Max 2.70 1.80 1.40 0.35 0.40 0.15 8°
B C D E G H J a
Mechanical Data
Case: SOD-323 Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020C Leads: Solderable per MIL-STD-202, Method 208 Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe). Polarity: Cathode Band Marking: See Page 2 Type Code: SG Weight: 0.004 grams (approximate)
C
1.05 Typical
E
0.05 Typical
All Dimensions in mm
Maximum Ratings
@ TA = 25°C unless otherwise specified Symbol VRRM VRWM VR VR(RMS) IFM IFSM Pd RqJA Tj, TSTG Value 30 21 100 750 250 500 -65 to 150 Unit V V mA mA mW °C/W °C
Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Forward Continuous Current (Note 1) Non-Repetitive Peak Forward Surge Current @ t £ 10ms Power Dissipation (Note 1) Thermal Resistance, Junction to Ambient Air (Note 1) Operating and Storage Temperature Range
Electrical Characteristics
Characteristic Reverse Breakdown Voltage (Note 2) Forward Voltage Drop Peak Reverse Current (Note 2) Total Capacitance
Notes:
@ TA = 25°C unless otherwise specified Symbol V(BR)R VFM IRM CT Min 30 ¾ ¾ ¾ Typ ¾ 300 360 470 580 ¾ 7 Max ¾ ¾ ¾ 550 800 1.0 ¾ Unit V mV mA pF Test Condition IR = 100mA @ IF = 2.0mA @ IF = 15mA @ IF = 50mA @ IF = 100mA VR = 25V VR = 10V f = 1.0 MHz
1. Part mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. 2. Short duration test pulse used in minimizing self-heating effect. 3. No purposefully added lead.
DS30129 Rev. 8 - 2
1 of 3 www.diodes.com
SD107WS
ã Diodes Incorporated
IO, AVERAGE RECTIFIED CURRENT (mA)
100
IF, INSTANTANEOUS FORWARD CURRENT (mA)
100
TA = 125ºC
80
TA = 75ºC
60
10
TA = 25ºC
40
1.0
TA = -25ºC
20 Tj = 125° C 0 0 25 50 75 100 125 150
0.1 0 200 400 600 800 1.0 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 2 Typical Forward Characteristics
TA, AMBIENT TEMPERATURE (° C) Fig. 1 Forward Current Derating Curve
1000
100
Tj = 25° C f = 1MHz
100
TA = 125ºC
10
CT, TOTAL CAPACITANCE (pF)
20 30 40
10
1.0
TA = 75ºC
0.1
TA = 25ºC
0.01 0 10
1.0 0 5.0 10 15 20 25 30 35 40 VR, REVERSE VOLTAGE (V) Fig. 4 Total Capacitance vs. Reverse Voltage
VR, INSTANTANEOUS REVERSE VOLTAGE (V) Fig. 3 Typical Reverse Characteristics
Ordering Information
Device SD107WS-7-F
Notes:
(Note 4) Packaging SOD-323 Shipping 3000/Tape & Reel
4. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
Type Code
SG
Cathode Band
DS30129 Rev. 8 - 2
2 of 3 www.diodes.com
SD107WS
IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated.
DS30129 Rev. 8 - 2
3 of 3 www.diodes.com
