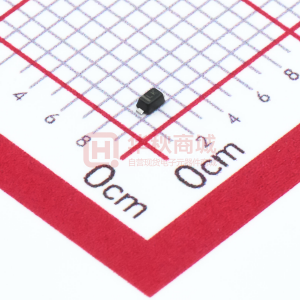

SDM03U40-7

SPICE MODEL: SDM03U40 Lead-free Green SDM03U40 SURFACE MOUNT SCHOTTKY BARRIER DIODE Features · · · · · · · · · · · · · · · Low Forward Voltage Drop Guard Ring Die Construction for Transient Protection Ideal for low logic level applications Low Capacitance Lead Free by Design/RoHS Compliant (Note 1) "Green" Device, Note 4 and 5 Dim A CATHODE MARK SOD-523 Min 1.50 1.10 0.25 0.70 0.10 0.55 Max 1.70 1.30 0.35 0.90 0.20 0.65 LK A B Qualified to AEC-Q101 Standards for High Reliability B C D E Mechanical Data Case: SOD-523 Case Material: Molded Plastic, "Green" Molding Compound, Note 5. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020C Terminal Connections: Cathode Band Terminals: Finish - Matte Tin annealed over Alloy 42 leadframe. Solderable per MIL-STD-202, Method 208 Marking Code: LK Ordering Information: See Last Page Weight: 0.002 grams (approximate) @ TA = 25°C unless otherwise specified Symbol VRM VR VR(RMS) IO IFSM MARKING CODE C D E G G All Dimensions in mm Maximum Ratings Peak Reverse Voltage DC Reverse Voltage RMS Reverse Voltage Average Rectified Current Characteristic Value 40 30 21 30 200 Unit V V V mA mA Non-Repetitive Peak Forward Surge Current @8.3ms Single half sine-wave superimposed on rated load Thermal Characteristics Characteristic Power Dissipation (Note 2) Thermal Resistance, Junction to Ambient (Note 2) Operating and Storage Temperature Range Symbol Pd RqJA Tj, TSTG Value 150 667 -40 to +125 Unit mW °C/W °C Electrical Characteristics Characteristic Reverse Breakdown Voltage (Note 3) Forward Voltage Peak Reverse Current (Note 3) Total Capacitance Note: @ TA = 25°C unless otherwise specified Symbol V(BR)R VF IR CT Min 40 ¾ ¾ ¾ Typ ¾ 290 ¾ 2 Max ¾ 370 0.5 ¾ Unit V mV mA pF Test Conditions IR = 10uA IF = 1mA VR = 30V VR = 1V, f = 1.0 MHz 1. No purposefully added lead. 2. Part mounted on FR-4 board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. TA = 25°C. 3. Short duration pulse test used to minimize self-heating effect. 4. Diodes Inc.'s "Green" Policy can be found on our website at http://www.diodes.com/products/lead_free/index.php. 5. Product manufactured with date code 0609 (week 9, 2006) and newer are built with Green Molding Compound. Product manufactured prior to date code 0609 are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants. DS30392 Rev. 6 - 2 1 of 3 www.diodes.com SDM03U40 ã Diodes Incorporated 200 IF, INSTANTANEOUS FORWARD CURRENT (A) 1 PD, POWER DISSIPATION (mW) 100m 10m TA = +75ºC TA = +125ºC 150 100 1m TA = +25ºC 50 0 0 25 50 75 100 125 TA, AMBIENT TEMPERATURE (° C) Fig. 1 Derating Curve 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 2 Typical Forward Characteristics 100 IR, INSTANTANEOUS REVERSE CURRENT (A) TA = +125ºC f = 1MHz CT, TOTAL CAPACITANCE (pF) TA = 75ºC 10 100n TA = 25ºC 1 10n TA = -25ºC 1n 0 5 10 15 20 25 30 35 0.1 0 5 10 15 20 25 VR, INSTANTANEOUS REVERSE VOLTAGE (V) Fig. 3 Typical Reverse Characteristics VR, REVERSE VOLTAGE (V) Fig. 4 Total Capacitance vs. DC Voltage 10 trr, REVERSE RECOVERY TIME (ns) 5 2 1 0.5 0.2 0.1 0 4 8 12 16 20 24 28 IF, FORWARD CURRENT (mA) Fig. 5 Typical Reverse Recovery Time Characteristics DS30392 Rev. 6 - 2 2 of 3 www.diodes.com SDM03U40 Ordering Information Device SDM03U40-7 SDM03U40-76K Note: (Note 5 & 6) Packaging SOD-523 SOD-523 Shipping 3000/Tape & Reel 6000/Tape & Reel 5. Product manufactured with date code 0609 (week 9, 2006) and newer are built with Green Molding Compound. Product manufactured prior to date code 0609 are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants. 6. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. DS30392 Rev. 6 - 2 3 of 3 www.diodes.com SDM03U40
