SDM10K45
SURFACE MOUNT SCHOTTKY BARRIER DIODE Features
NEW PRODUCT
· · · ·
Fast Switching Speed Ultra-Small Surface Mount Package For General Purpose Switching Applications High Conductance
H G A B D

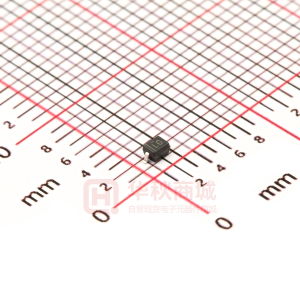

SOD-323 Dim A
J
Min 2.30 1.60 1.20 0.25 0.20 0.10 0°
Max 2.70 1.80 1.40 0.35 0.40 0.15 8°
Mechanical Data
· · · · · · · · Case: SOD-323, Molded Plastic Case material - UL Flammability Rating Classification 94V-0 Moisture sensitivity: Level 1 per J-STD-020A Terminals: Solderable per MIL-STD-202, Method 208 Polarity: See Diagram Marking: See Sheet 2 Weight: 0.006 grams (approx.) Ordering Information: See Below
B C D E G H
1.05 Typical
C
E
J a
0.05 Typical
All Dimensions in mm
Maximum Ratings @ TA = 25°C unless otherwise specified
Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Forward Continuous Current (Note 1) Forward Surge Current Power Dissipation (Note 1) Thermal Resistance Junction to Ambient Air (Note 1) Operating and Storage Temperature Range @ t < 8.3ms Symbol VRRM VRWM VR VR(RMS) IFM IFSM Pd RqJA Tj , TSTG Value 45 40 100 1.0 200 500 -40 to +125 Unit V V mA A mW °C/W °C
Electrical Characteristics
Characteristic Reverse Breakdown Voltage (Note 2) Forward Voltage (Note 2) Reverse Leakage Current (Note 2) Total Capacitance
@ TA = 25°C unless otherwise specified Symbol V(BR)R VF IR CT Min 45 ¾ ¾ ¾ Typ ¾ 370 0.07 6.0 Max ¾ 450 1.0 ¾ Unit ¾ mV mA pF Test Condition IR = 100mA IF = 10mA VR = 10V VR = 10V, f = 1.0MHz
Ordering Information (Note 3)
Device SDM10K45-7 Note: Packaging SOD-323 Shipping 3000/Tape & Reel
1. Device mounted on FR-5 PCB 1.0 x 0.75 x 0.062 inch pad layout as shown on Diodes, Inc. suggested pad layout AP02001, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. 2. Short duration pulse test to minimize self-heating effect. 3. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
DS30256 Rev. 9 - 2
1 of 2
SDM10K45
Marking Information
NEW PRODUCT
Product Type Code Marking
LG
Cathode Band
IO, AVERAGE RECTIFIED CURRENT (mA)
100
IF, INSTANTANEOUS FORWARD CURRENT (mA)
100
TA = 125ºC
80
TA = 75ºC
60
10
TA = 25ºC
40
1.0
TA = -25ºC
20 Tj = 125° C 0 0 25 50 75 100 125 150
0.1 0 200 400 600 800 1.0 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 2 Typical Forward Characteristics
TA, AMBIENT TEMPERATURE (° C) Fig. 1 Forward Current Derating Curve
1000
100
Tj = 25° C f = 1MHz
100
TA = 125ºC
10
CT, TOTAL CAPACITANCE (pF)
20 30 40
10
1.0
TA = 75ºC
0.1
TA = 25ºC
0.01 0 10
1.0 0 5.0 10 15 20 25 30 35 40 VR, REVERSE VOLTAGE (V) Fig. 4 Total Capacitance vs. Reverse Voltage
VR, INSTANTANEOUS REVERSE VOLTAGE (V) Fig. 3 Typical Reverse Characteristics
DS30256 Rev. 9 - 2
2 of 2
