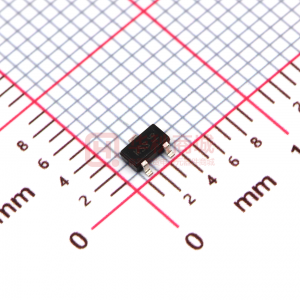

SDM20E40C-7-F

SPICE MODEL: SDM20E40C Lead-free Green SDM20E40C DUAL SURFACE MOUNT SCHOTTKY BARRIER DIODE Features · · · · Low Forward Voltage Drop Common Cathode Configuration Lead Free/RoHS Compliant (Note 2) "Green" Device, Note 4 and 5 BC A SC-59 Dim A B C G H K M Min 0.35 1.50 2.70 0.95 1.90 2.90 0.013 1.00 0.35 0.10 0° Max 0.50 1.70 3.00 Mechanical Data · · · · · · · · Case: SC-59 Case Material: Molded Plastic, "Green" Molding Compound, Note 5. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020C Terminals: Solderable per MIL-STD-202, Method 208 Lead Free Plating (Matte Tin Finish annealed over Copper leadframe). Polarity: See Diagram Marking: KSS + Date Code (See Page 3) Weight: 0.008 grams (approximate) TOP VIEW D G H J K L M a 3.10 0.10 1.30 0.55 0.20 8° J D L All Dimensions in mm Maximum Ratings @ TA = 25°C unless otherwise specified Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Forward Continuous Current (Note 1) Non-Repetitive Peak Forward Surge Current @ t = 8.3ms Power Dissipation (Note 1) Operating Temperature Range Junction Temperature Range Storage Temperature Range Symbol VRRM VRWM VR VR(RMS) IFM IFSM Pd TOP Tj TSTG Value 40 28 0.4 2 400 -30 to +85 -30 to +125 -40 to +125 Unit V V A A mW °C °C °C Electrical Characteristics Characteristic Reverse Breakdown Voltage (Note 3) Forward Voltage Leakage Current (Note 3) Total Capacitance Notes: 1. 2. 3. 4. 5. @ TA = 25°C unless otherwise specified Symbol V(BR)R VF IR CT Min 40 ¾ ¾ ¾ ¾ Typ ¾ ¾ ¾ ¾ ¾ Max ¾ 300 500 70 100 Unit V mV mA pF Test Condition IR = 500mA IF = 10mA IF = 200mA VR = 25V VR = 0V, f = 1.0MHz Mounted on FR4 PC Board with recommended pad layout which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. No purposefully added lead. Short duration test pulse used to minimize self-heating effect. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php. Product manufactured with Date Code 0609 (week 9, 2006) and newer are built with Green Molding Compound. Product manufactured prior to Date Code 0609 are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants. DS30276 Rev. 6 - 2 1 of 3 www.diodes.com SDM20E40C ã Diodes Incorporated IR, INSTANTANEOUS REVERSE CURRENT (uA) IF, INSTANTANEOUS FORWARD CURRENT (mA) 1000 10,000 100 1000 TA = 125ºC TA = 125° C TA = 75° C 100 TA = 75ºC 10 TA = -40° C 10 TA = 25ºC 1.0 TA = 25° C 1 TA = 0ºC 0.1 0 100 200 300 400 500 600 700 VR, INSTANTANEOUS FORWARD VOLTAGE (mV) Fig. 1 Typical Forward Characteristics 0.1 0 10 20 30 40 VR, INSTANTANEOUS REVERSE VOLTAGE (V) Fig. 2 Typical Reverse Characteristics 500 Note 1 100 Tj = 25° C f = 1.0MHz CT, TOTAL CAPACITANCE (pF) 400 Pd, POWER DISSIPATION (mW) 300 10 200 100 1 0 5.0 10 15 20 25 30 35 40 0 0 25 50 75 100 125 150 TA, AMBIENT TEMPERATURE (° C) Fig. 4 Power Derating Curve VR, REVERSE VOLTAGE (V) Fig. 3 Typical Total Capacitance DS30276 Rev. 6 - 2 2 of 3 www.diodes.com SDM20E40C Ordering Information Device (Note 5 & 6) Packaging SC-59 Shipping 3000/Tape & Reel SDM20E40C-7-F Notes: 5. Product manufactured with Date Code 0609 (week 9, 2006) and newer are built with Green Molding Compound. Product manufactured prior to Date Code 0609 are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants. 6. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information KSS KSS = Product Type Marking Code YM = Date Code Marking Y = Year ex: N = 2002 M = Month ex: 9 = September Date Code Key Year Code Month Code 2001 M Jan 1 2002 N Feb 2 2003 P March 3 2004 R Apr 4 2005 S May 5 2006 T Jun 6 2007 U Jul 7 2008 V Aug 8 2009 W Sep 9 2010 X Oct O 2011 Y Nov N 2012 Z Dec D IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. DS30276 Rev. 6 - 2 3 of 3 www.diodes.com YM SDM20E40C
