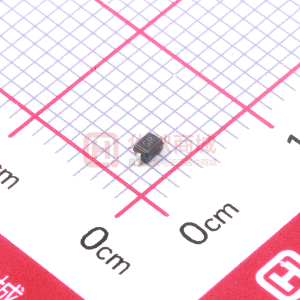

SDMK0340L

SPICE MODELS: SDMK0340L SDMK0340L SURFACE MOUNT SCHOTTKY BARRIER DIODE Features · · · · · · · · · · · · · · Low Forward Voltage Drop Guard Ring Die Construction for Transient Protection Ideal for low logic level applications Low Capacitance Lead Free/RoHS Compliant (Note 3) Dim A SOD-323 Min 2.30 1.60 1.20 0.25 0.20 0.10 0° Max 2.70 1.80 1.40 0.35 0.40 0.15 8° Mechanical Data Case: SOD-323 Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020C Leads: Solderable per MIL-STD-202, Method 208 Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe). Polarity: Cathode Band Marking: Marking Code and Date Code Marking Code: SR Weight: 0.004 grams (approx.) H G A B D J B C D E G H 1.05 Typical C E J a 0.05 Typical All Dimensions in mm Maximum Ratings @ TA = 25°C unless otherwise specified Symbol VRRM VRWM VR VR(RMS) IFM IFSM Pd RqJA Tj, TSTG Value 40 28 30 200 160 625 -40 to +125 Unit V V mA mA mW °C/W °C Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Maximum (Peak) Forward Current Non-Repetitive Peak Forward Surge Current @8.3ms Single half sine-wave superimposed on rated load (JEDEDC method) Power Dissipation Thermal Resistance, Junction to Ambient Air Operating and Storage Temperature Range Electrical Characteristics Characteristic Reverse Breakdown Voltage (Note 1) Forward Voltage Drop Leakage Current (Note 1) Total Capacitance Notes: @ TA = 25°C unless otherwise specified Symbol V(BR)R VF IR CT Min 40 ¾ ¾ ¾ Typ ¾ 290 0.20 2 Max ¾ 370 0.5 ¾ Unit V mV mA pF Test Condition IR = 10uA IF = 1mA VR = 30V VR = 1V f = 1.0 MHz 1. Short duration test pulse to minimize self-heating effect. Ordering Information Device (Note 2) Packaging SOD-323 Shipping 3000/Tape & Reel SDMK0340L-7-F Notes: 2. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. 3. No purposefully added lead. DS30239 Rev. 8 - 2 1 of 3 www.diodes.com SDMK0340L ã Diodes Incorporated 200 IF, INSTANTANEOUS FORWARD CURRENT (A) 1 PD, POWER DISSIPATION (mW) 100m 10m TA = +75ºC TA = +125ºC 150 100 1m TA = +25ºC 100µ 10µ 1µ 0 0.2 0.4 50 0 0 25 50 75 100 125 TA, AMBIENT TEMPERATURE (° C) Fig. 1 Derating Curve 0.6 0.8 1.0 1.2 1.4 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 2 Typical Forward Characteristics 100 IR, INSTANTANEOUS REVERSE CURRENT (A) TA = +125ºC f = 1MHz TA = 75ºC CT, TOTAL CAPACITANCE (pF) 10 100n TA = 25ºC 1 10n TA = -25ºC 1n 0 5 10 15 20 25 30 0.1 0 5 10 15 20 25 VR, INSTANTANEOUS REVERSE VOLTAGE (V) Fig. 3 Typical Reverse Characteristics VR, REVERSE VOLTAGE (V) Fig. 4 Total Capacitance vs. Reverse Voltage 10 trr, REVERSE RECOVERY TIME (ns) 5 2 1 0.5 0.2 0.1 0 4 8 12 16 20 24 28 IF, FORWARD CURRENT (mA) Fig. 5 Typical Reverse Recovery Time Characteristics DS30239 Rev. 8 - 2 2 of 3 www.diodes.com SDMK0340L Marking Information SR SR = Product Type Marking Code See Sheet 1 IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. DS30239 Rev. 8 - 2 3 of 3 www.diodes.com SDMK0340L
