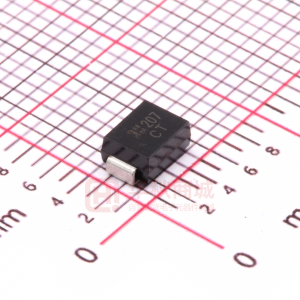

SMBJ43CA

SMBJ5.0(C)A - SMBJ170(C)A 600W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR Features · · · · · · · 600W Peak Pulse Power Dissipation 5.0V - 170V Standoff Voltages Glass Passivated Die Construction Uni- and Bi-Directional Versions Available Excellent Clamping Capability Fast Response Time Plastic Material - UL Flammability Classification Rating 94V-0 Case: SMB, Transfer Molded Epoxy Terminals: Solderable per MIL-STD-202, Method 208 Polarity Indicator: Cathode Band (Note: Bi-directional devices have no polarity indicator.) Marking: Date Code and Marking Code See Page 3 Weight: 0.1 grams (approx.) Ordering Info: See Page 3 @ TA = 25°C unless otherwise specified Symbol PPK IFSM VF Tj, TSTG Value 600 100 3.5 5.0 -55 to +150 Unit W A V V °C B Dim A SMB Min 3.30 4.06 1.91 0.15 5.00 0.10 0.76 2.00 Max 3.94 4.70 2.21 0.31 5.59 0.20 1.52 2.62 A C B C D Mechanical Data · · · · · · D J E G H J H G E All Dimensions in mm Maximum Ratings Characteristic Peak Pulse Power Dissipation (Non repetitive current pulse derated above T = 25°C) A (Note 1) Peak Forward Surge Current, 8.3ms Single Half Sine Wave Superimposed on Rated Load (JEDEC Method) (Notes 1, 2, & 3) Instantaneous Forward Voltage @ IPP = 35A VBR
