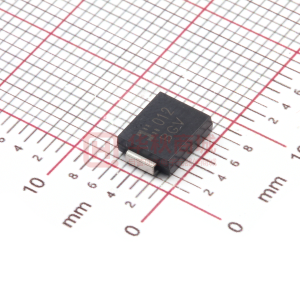

SMCJ85CA

SMCJ5.0(C)A - SMCJ170(C)A 1500W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR Features · · · · · · · 1500W Peak Pulse Power Dissipation 5.0V - 170V Standoff Voltages Glass Passivated Die Construction Uni- and Bi-Directional Versions Available Excellent Clamping Capability Fast Response Time Plastic Case Material has UL Flammability Classification Rating 94V-0 Case: SMC, Transfer Molded Epoxy Terminals: Solderable per MIL-STD-202, Method 208 Polarity Indicator: Cathode Band (Note: Bi-directional devices have no polarity indicator.) Marking: Date Code and Marking Code See Page 3 Weight: 0.21 grams (approx.) @ TA = 25°C unless otherwise specified Symbol PPK IFSM VF Tj, TSTG Value 1500 200 3.5 -55 to +150 Unit W A V °C B Dim A B C D SMC Min 5.59 6.60 2.75 0.15 7.75 0.10 0.76 2.00 Max 6.22 7.11 3.18 0.31 8.13 0.20 1.52 2.62 A C Mechanical Data · · · · · D J E G H H G E J All Dimensions in mm Maximum Ratings Characteristic Peak Pulse Power Dissipation (Non repetitive current pulse derated above T = 25°C) A ( Note 1) Peak Forward Surge Current, 8.3ms Single Half Sine Wave Superimposed on Rated Load (JEDEC Method) (Notes 1, 2, & 3) Instantaneous Forward Voltage @ IPP = 35A (Notes 1, 2, & 3) Operating and Storage Temperature Range Notes: 1. Valid provided that terminals are kept at ambient temperature. 2. Measured with 8.3ms single half sine-wave. Duty cycle = 4 pulses per minute maximum. 3. Unidirectional units only. DS19003 Rev. 11 - 2 1 of 3 SMCJ5.0(C)A - SMCJ170(C)A Part Number Add C For Bi-Directional (Note 4) SMCJ5.0(C)A SMCJ6.0(C)A SMCJ6.5(C)A SMCJ7.0(C)A SMCJ7.5(C)A SMCJ8.0(C)A SMCJ8.5(C)A SMCJ9.0(C)A SMCJ10(C)A SMCJ11(C)A SMCJ12(C)A SMCJ13(C)A SMCJ14(C)A SMCJ15(C)A SMCJ16(C)A SMCJ17(C)A SMCJ18(C)A SMCJ20(C)A SMCJ22(C)A SMCJ24(C)A SMCJ26(C)A SMCJ28(C)A SMCJ30(C)A SMCJ33(C)A SMCJ36(C)A SMCJ40(C)A SMCJ43(C)A SMCJ45(C)A SMCJ48(C)A SMCJ51(C)A SMCJ54(C)A SMCJ58(C)A SMCJ60(C)A SMCJ64(C)A SMCJ70(C)A SMCJ75(C)A SMCJ78(C)A SMCJ85(C)A SMCJ90(C)A SMCJ100(C)A SMCJ110(C)A SMCJ120(C)A SMCJ130(C)A SMCJ150(C)A SMCJ160(C)A SMCJ170(C)A Reverse Standoff Voltage VRWM (V) 5.0 6.0 6.5 7.0 7.5 8.0 8.5 9.0 10.0 11.0 12.0 13.0 14.0 15.0 16.0 17.0 18.0 20.0 22.0 24.0 26.0 28.0 30.0 33.0 36.0 40.0 43.0 45.0 48.0 51.0 54.0 58.0 60.0 64.0 70.0 75.0 78.0 85.0 90.0 100.0 110.0 120.0 130.0 150.0 160.0 170.0 Breakdown Voltage VBR @ IT (Note 5) Min (V) 6.40 6.67 7.22 7.78 8.33 8.89 9.44 10.00 11.10 12.20 13.30 14.40 15.60 16.70 17.80 18.90 20.00 22.20 24.40 26.70 28.90 31.10 33.30 36.70 40.00 44.40 47.80 50.00 53.30 56.70 60.00 64.40 66.70 71.10 77.80 83.30 86.70 94.40 100.00 111.00 122.00 133.00 144.00 167.00 178.00 189.00 Max (V) 7.25 7.67 8.30 8.95 9.58 10.23 10.82 11.50 12.80 14.40 15.30 16.50 17.90 19.20 20.50 21.70 23.30 25.50 28.00 30.70 33.20 35.80 38.30 42.20 46.00 51.10 54.90 57.50 61.30 65.20 69.00 74.60 76.70 81.80 89.50 95.80 99.70 108.20 115.50 128.00 140.50 153.00 165.50 192.50 205.00 217.50 Test Current IT(mA) 10 10 10 10 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 Max. Reverse Leakage @ VRWM(Note 6) IR (mA) 1000 1000 500 200 100 50 20 10 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 Max. Clamping Max. Peak Pulse Current Voltage @ Ipp Ipp VC (V) 9.2 10.3 11.2 12.0 12.9 13.6 14.4 15.4 17.0 18.2 19.9 21.5 23.2 24.4 26.0 27.6 29.2 32.4 35.5 38.9 42.1 45.4 48.4 53.3 58.1 64.5 69.4 72.7 77.4 82.4 87.1 93.6 96.8 103.0 113.0 121.0 126.0 137.0 146.0 162.0 177.0 193.0 209.0 243. 0 259. 0 275.0 (A) 163.0 145.6 133.9 125.0 116.3 110.3 104.2 97.4 88.2 82.4 75.3 69.7 64.7 61.5 57.7 53.3 51.4 46.3 42.2 38.6 35.6 33.0 31.0 28.1 25.8 23.2 21.6 20.6 19.4 18.2 17.2 16.0 15.5 14.6 13.3 12.4 11.4 10.4 10.3 9.3 8.4 7.9 7.2 6.2 5.8 5.5 Marking Code BIBDE BDG BDK BDM BDP BDR BDT BDV BDX BDZ BEE BEG BEK BEM BEP BER BET BEV BEX BEZ BFE BFG BFK BFM BFP BFR BFT BFV BFX BFZ BGE BGG BGK BGM BGP BGR BGT BGV BGX BGZ BHE BHG BHK BHM BHP BHR UNIGDE GDG GDK GDM GDP GDR GDT GDV GDX GDZ GEE GEG GEK GEM GEP GER GET GEV GEX GEZ GFE GFG GFK GFM GFP GFR GFT GFV GFX GFZ GGE GGG GGK GGM GGP GGR GGT GGV GGX GGZ GHE GHG GHK GHM GHP GHR Notes: 4. Suffix C denotes Bi-directional device. 5. VBR measured with IT current pulse = 300ms 6. For Bi-Directional devices havingVRWM of 10V and under, the IR is doubled. DS19003 Rev. 11 - 2 2 of 3 SMCJ5.0(C)A - SMCJ170(C)A 100 10,000 Measured at zero bias PEAK PULSE DERATING IN % OF PEAK POWER OR CURRENT Cj, CAPACITANCE (pF) 75 1000 Uni-directional 50 Bi-directional 100 25 10 X 1000 Waveform as defined by REA 0 0 25 50 75 100 125 150 175 200 TA, AMBIENT TEMPERATURE (°C) Fig. 1 Pulse Derating Curve 100 Tj = 25°C 10 Tj = 25°C f = 1.0 MHz Vsig = 50mV p-p 1 10 100 1000 VRWM, REVERSE STANDOFF VOLTAGE (V) Fig. 2 Typical Junction Capacitance IP, PEAK PULSE CURRENT (%Ipp) Pd, PEAK PULSE POWER (kW) 10 Non Repetitive Pulse Waveform Shown in Fig. 4 100 tr = 10ms Peak Value Ipp Half Value Ipp/2 50 1.0 tp 0.1 0.1 1.0 10 100 1000 10000 0 10 X 1000 Waveform as defined by R.E.A. 0 1 2 3 tp PULSE WIDTH (ms) Fig. 3 Pulse Rating Curve t, TIME (ms) Fig. 4 Pulse Waveform Ordering Information (Note 4) Device SMCJXXX(C)A-13 Notes: Packaging SMC Shipping 5000/Tape & Reel 4. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information YWW XXX XXX = Product type marking code (See Page 2) = Manufacturers’ code marking YWW = Date code marking Y = Last digit of year ex: 2 for 2002 WW = Week code 01 to 52 DS19003 Rev. 11 - 2 3 of 3 SMCJ5.0(C)A - SMCJ170(C)A
