TLV431

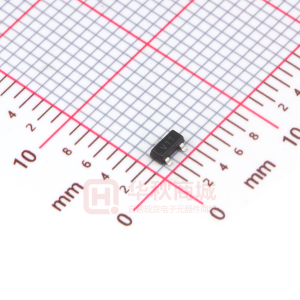

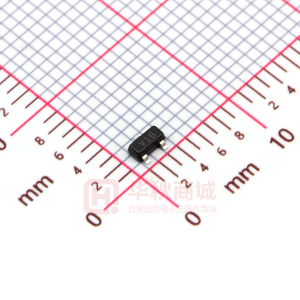

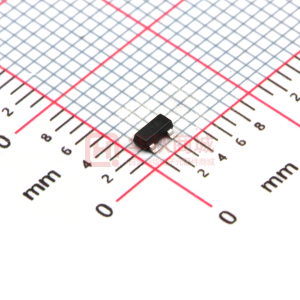

A Product Line of Diodes Incorporated TLV431 1.24V COST EFFECTIVE SHUNT REGULATOR Description The TLV431 is a three terminal adjustable shunt regulator offering excellent temperature stability and output current handling capability up to 20mA. The output voltage may be set to any chosen voltage between 1.24 and 18 volts by selection of two external divider resistors. The TLV431 can be used as a replacement for zener diodes in many applications requiring an improvement in zener performance. The TLV431 is available in 2 grades with initial tolerances of 1% and 0.5% for the A and B grades respectively. Pin Assignments TLV431_H6 (SC70-6) CATHODE N/C ‡ 1 2 3 6 ANODE 5 4 NC ‡ REF NC (Top View) TLV431_F (SOT23) Features • • • Low Voltage Operation VREF = 1.24V Temperature range -40 to 125ºC Reference Voltage Tolerance at 25°C o 0.5% TLV431B o 1% TLV431A Typical temperature drift o 4 mV (0°C to 70°C) o 6 mV (-40°C to 85°C) o 11mV (-40°C to 125°C) 80µA Minimum cathode current 0.25Ω Typical Output Impedance Adjustable Output Voltage VREF to 18V Lead Free Finish. RoHS Compliant with “Green” Molding Compound (No Br, Sb) Qualified to AEC-Q100 REF 1 3 ANODE CATHODE 2 (Top View) • TLV431_E5 (SOT25) N/C N/C ‡ 1 2 3 5 ANODE • • • • • CATHODE 4 REF (Top View) Typical Application Circuit Secondary side regulated rail Primary side controller 3.3V TLV431 Document number: DS32088 Rev. 4 - 2 1 of 14 www.diodes.com November 2010 © Diodes Incorporated A Product Line of Diodes Incorporated TLV431 Absolute Maximum Ratings (Voltages to GND Unless Otherwise Stated) Symbol VKA IKA IREF VIN ESD Susceptibility HBM MM CDM Parameter Cathode Voltage Continuous Cathode Current Reference Input Current Range Input Supply Voltage (Relative to Ground) Human Body Model Machine Model Charged Device Model Rating 20 -20 to 20 -0.050 to 3 -0.03 to 18 4 400 1 Unit V mA mA V kV V kV (Semiconductor devices are ESD sensitive and may be damaged by exposure to ESD events. Suitable ESD precautions should be taken when handling and transporting these devices.) Parameter Operating Junction Temperature Storage Temperature Rating -40 to 150 -65 to 150 Unit °C °C Operation above the absolute maximum rating may cause device failure. Operation at the absolute maximum ratings, for extended periods, may reduce device reliability. Unless otherwise stated voltages specified are relative to the ANODE pin. These are stress ratings only. Operation outside the absolute maximum ratings may cause device failure. Recommended Operating Conditions VKA Cathode Voltage IKA Cathode Current TA Operating Ambient Temperature Range Min VREF 0.1 -40 Max 18 15 125 Units V mA °C Package Thermal Data Package SOT23 SOT25 SC70-6 θJA 380°C/W 250°C/W 380°C/W PDIS TA =25°C, TJ = 150°C 330 mW 500 mW 330 mW TLV431 Document number: DS32088 Rev. 4 - 2 2 of 14 www.diodes.com November 2010 © Diodes Incorporated A Product Line of Diodes Incorporated TLV431 Electrical Characteristics Electrical characteristics over recommended operating conditions, IKA = 10mA, TA = 25°C, unless otherwise stated Symbol Parameter VREF Reference Voltage VREF(dev) ΔVREF ΔVKA IREF IREF(dev) Deviation of reference voltage over full temperature range Ration of change in refernce voltage to the change in cathode voltage Refernce Input Current IREF deviation over full temperature range Minimum cathode current for regulation Off state current Dynamic output impedance Conditions TLV431A VKA = VREF, TA = 25°C TLV431B TLV431A VKA = VREF, TA = 0 to 70°C TLV431B TLV431A VKA = VREF, TA = -40 to 85°C TLV431B TLV431A VKA = VREF, TA = -40 to 125°C TLV431B TA = 0 to 70°C VKA = VREF TA = -40 to 85°C TA = -40 to 125°C 6V VKA for VREF to 18V R1 = 10kΩ, R2 = OC R1 = 10kΩ, R2 = OC VKA = VREF VKA = 18V, VREF = 0V VKA = VREF, f = R3 ≥ IF(min) 15mA Figure 2. Using the TLV431 as the regulating element in an isolated PSU TLV431 Document number: DS32088 Rev. 4 - 2 8 of 14 www.diodes.com November 2010 © Diodes Incorporated A Product Line of Diodes Incorporated TLV431 Application Information (Continued) Printed circuit board layout considerations The TLV431 in the SOT25 package has the die attached to pin 2, which results in an electrical contact between pin 2 and pin 5. Therefore, pin 2 of the SOT25 package must be left floating or connected to pin 5. TLV431 in the SC70-6 package has the die attached to pin 2 and 5, which results in an electrical contact between pins 2, 5 and pin 6. Therefore, pins 2 and 5 must be left floating or connected to pin 6. Other applications of the TLV431 R1 ⎞ ⎛ VOUT = VREF ⎜ 1 + ⎟ ⎝ R2 ⎠ R3 = VIN − VOUT ISH + IB R4 = VBE IB ⎛ ISH ⎜ ⎜ hFE(min) ⎝ ⎞ ⎟ < IB ≤ 15mA ⎟ ⎠ Figure 3. High current shunt regulator It may at times be required to shunt-regulate more current than the 15mA that the TLV431 is capable of. Figure 3 shows how this can be done using transistor Q1 to amplify the TLV431’s current. Care needs to be taken that the power dissipation and/or SOA requirements of the transistor is not exceeded. R1 ⎞ ⎛ VOUT = VREF ⎜ 1 + ⎟ R2 ⎠ ⎝ R3 = VIN − ( VOUT + VBE ) IB ⎛ IOUT(max) ⎞ ⎜ ⎟ < I ≤ 15mA ⎜ hFE(min) ⎟ B ⎝ ⎠ Figure 4. Basic series regulator A very effective and simple series regulator can be implemented as shown in Figure 4 above. This may be preferable if the load requires more current than can be provided by the TLV431 alone and there is a need to conserve power when the load is not being powered. This circuit also uses one component less than the shunt circuit shown in Figure 3 above. TLV431 Document number: DS32088 Rev. 4 - 2 9 of 14 www.diodes.com November 2010 © Diodes Incorporated A Product Line of Diodes Incorporated TLV431 Application Information (Continued) Printed circuit board layout considerations (continued) R1 ⎞ ⎛ VOUT = VREF ⎜1 + ⎟ R2 ⎠ ⎝ V − ( VOUT + VBE ) R3 = IN IB ⎛ IOUT(max) ⎞ ⎜ ⎟ < I ≤ 18mA ⎜ hFE(min) ⎟ B ⎝ ⎠ RS = VREF IOUT(max) Figure 5. Series regulator with current limit Figure 5 adds current limit to the series regulator in Figure 4 using a second TLV431. For currents below the limit, the circuit works normally supplying the required load current at the design voltage. However should attempts be made to exceed the design current set by the second TLV431, the device begins to shunt current away from the base of Q1. This begins to reduce the output voltage and thus ensuring that the output current is clamped at the design value. Subject only to Q1’s ability to withstand the resulting power dissipation, the circuit can withstand either a brief or indefinite short circuit. R1 ⎞ ⎛ VOUT = VREF ⎜1 + ⎟ ⎝ R2 ⎠ VOUT ≥ ( VREG + VREF ) (All features of the regulator such as short circuit protection, thermal shutdown, etc, are maintained.) Figure 6. Increasing output voltage of a fixed linear regulator One of the useful applications of the TLV431 is in using it to improve the accuracy and/or extend the range and flexibility of fixed voltage regulators. In the circuit in Figure 6 above both the output voltage and its accuracy are entirely determined by the TLV431, R1 and R2. However the rest of the features of the regulator (up to 5A output current, output current limiting and thermal shutdown) are all still available. TLV431 Document number: DS32088 Rev. 4 - 2 10 of 14 www.diodes.com November 2010 © Diodes Incorporated A Product Line of Diodes Incorporated TLV431 Application Information (Continued) Printed circuit board layout considerations (continued) R1 ⎞ ⎛ VOUT = VREF ⎜1 + ⎟ R2 ⎠ ⎝ VOUT ≥ ( VREG + VREF ) R3 = VIN − ( VOUT − VREG ) IB 0.1mA ≤ IB ≤ 18mA (All features of the regulator such as short circuit protection, thermal shutdown, etc, are maintained.) Figure 7. Adjustable linear voltage regulator Figure 7 is similar to Figure 6 with adjustability added. Note the addition of R3. This is only required for the AP1117 due to the fact that its ground or adjustment pin can only supply a few micro-Amps of current at best. R3 is therefore needed to provide sufficient bias current for the TLV431. Ordering Information Tol. 1% Orde Code TLV431AE5TA TLV431AFTA TLV431AH6TA TLV431BE5TA TLV431BFTA TLV431BH6TA Pack SOT25 SOT23 SC70-6 SOT25 SOT23 SC70-6 Part Mark V1A V1A V1A V1B V1B V1B Status Active Active Active Active Active Active Reel Size 7”, 7”, 7”, 7”, 7”, 7”, 180mm 180mm 180mm 180mm 180mm 180mm Tape Width 8mm 8mm 12mm 8mm 8mm 12mm Quanity per Reel 3000 3000 1000 3000 3000 1000 0.5% TLV431 Document number: DS32088 Rev. 4 - 2 11 of 14 www.diodes.com November 2010 © Diodes Incorporated A Product Line of Diodes Incorporated TLV431 Package Outline Dimensions SOT23 SOT25 Dimension Table SOT25 TLV431 Document number: DS32088 Rev. 4 - 2 12 of 14 www.diodes.com November 2010 © Diodes Incorporated A Product Line of Diodes Incorporated TLV431 Package Outline Dimensions (Continued) SC70-6 TLV431 Document number: DS32088 Rev. 4 - 2 13 of 14 www.diodes.com November 2010 © Diodes Incorporated A Product Line of Diodes Incorporated TLV431 IMPORTANT NOTICE DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION). Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated website, harmless against all damages. Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel. Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized application. Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings noted herein may also be covered by one or more United States, international or foreign trademarks. LIFE SUPPORT Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express written approval of the Chief Executive Officer of Diodes Incorporated. As used herein: A. Life support devices or systems are devices or systems which: 1. are intended to implant into the body, or 2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the labeling can be reasonably expected to result in significant injury to the user. B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or to affect its safety or effectiveness. Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems. Copyright © 2010, Diodes Incorporated www.diodes.com TLV431 Document number: DS32088 Rev. 4 - 2 14 of 14 www.diodes.com November 2010 © Diodes Incorporated
