UDZ5V1BF
0.5W SURFACE MOUNT PRECISION ZENER DIODE
Features
• • • • • • 500mW Power Dissipation on FR-4 PCB Very Tight Tolerance on VZ Low Reverse Leakage Current Ideally Suited for Automated Assembly Processes Lead, Halogen and Antimony Free, RoHS Compliant (Note 2) "Green" Device (Note 3)
Mechanical Data

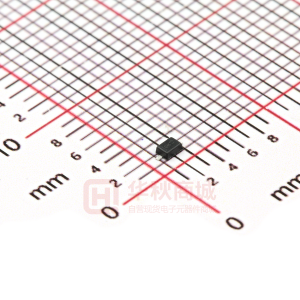

• • • • • • • • Case: SOD-323F Case Material: Molded Plastic, “Green Molding Compound”. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminal Connections: Cathode Band Terminals: Finish - Matte Tin annealed over Copper Alloy leadframe. Solderable per MIL-STD-202, Method 208 Marking Information: See Page 3 Ordering Information: See Page 3 Weight: 0.01 grams (approximate)
NEW PRODUCT
Top View
Maximum Ratings
Forward Voltage
@TA = 25°C unless otherwise specified @ IF = 10mA Symbol VF Value 0.95 Unit V
Characteristic
Thermal Characteristics
Characteristic Power Dissipation (Note 1) Thermal Resistance, Junction to Ambient Air (Note 1) Operating and Storage Temperature Range Symbol PD RθJA TJ, TSTG Value 500 200 -65 to +150 Unit mW °C/W °C
Electrical Characteristics @TA = 25°C unless otherwise specified
Type Number UDZ5V1BF
Notes:
Marking Code GM
Zener Voltage Range (Notes 4, 5) VZ @ IZT Min (V) Max (V) 4.98 5.20
IZT mA 5
Maximum Zener Impedance (Note 6) ZZT @ IZT ZZK @ IZK IZK mA Ω 80 500 0.5
Maximum Reverse Current (Note 7) IR @ VR V μA 2 1.5
1. Device mounted on FR-4 PCB with 10mm x 10mm pad, board size 35mm * 25mm. 2. No purposefully added lead. Halogen and Antimony Free. 3. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php. 4. The Zener voltage is measured 40ms after power is supplied. 5. For inquiries on alternate nominal zener voltages, please contact your Diodes Inc. sales representative for availability and minimum order details. 6. f = 1kHz. 7. Short duration pulse test used to minimize self-heating effect.
UDZ5V1BF
Document number: DS32228 Rev. 5 - 2
1 of 4 www.diodes.com
August 2010
© Diodes Incorporated
UDZ5V1BF
IF, INSTANTANEOUS FORWARD CURRENT (mA)
150 0.6
1,000
PD, POWER DISSIPATION (W)
0.5
RθJA = 200°C/W
100
0.4
0.3
10
NEW PRODUCT
0.2
1
0.1
0 0 25 50 75 100 125 TA, AMBIENT TEMPERATURE (° C) Fig. 1 Power Derating Curve
0.1 0.4 0.6 0.8 1.0 1.2 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 2 Typical Forward Characteristics
IR, INSTANTANEOUS REVERSE CURRENT (µA)
100
100 10 1
TA = 150°C
10 IZ, ZENER CURRENT (mA)
1
0.1
T A = 85°C
0.1
0.01 0.001 0.0001 0.00001 0
TA = 25°C TA = -55°C
0.01
0.001 0.0001 2 3 4 5 6 VZ, ZENER VOLTAGE (V) Fig. 3 Typical Zener Breakdown Characteristics
0.5 1 1.5 2 2.5 3 3.5 4 4.5 VR, INSTANTANEOUS REVERSE VOLTAGE (V) Fig. 4 Typical Reverse Characteristics
40 35 CT, TOTAL CAPACITANCE (pF) 30 25 20 15 10 5 0 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 VR, INSTANTANEOUS REVERSE VOLTAGE (V) Fig. 5 Typical Total Capacitance
f = 1MHz
UDZ5V1BF
Document number: DS32228 Rev. 5 - 2
2 of 4 www.diodes.com
August 2010
© Diodes Incorporated
UDZ5V1BF Ordering Information (Note 8)
Part Number UDZ5V1BF-7
Notes:
Case SOD-323F
Packaging 3000/Tape & Reel
8. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information NEW PRODUCT
GM = Product Type Marking Code (See Electrical Characteristics Table) YM = Date Code Marking Y = Year (ex: X = 2010) M = Month (ex: 9 = September)
GM
Date Code Key Year Code Month Code
2010 X Jan 1 Feb 2
2011 Y Mar 3 Apr 4
YM
2012 Z May 5
2013 A Jun 6 Jul 7
2014 B Aug 8 Sep 9
2015 C Oct O Nov N
2016 D Dec D
Package Outline Dimensions
He E
D
b (2x)
α1
β1
A c α2 L1 β2
SOD-323F Dim Min Max Typ A 0.60 0.75 − b 0.25 0.35 − c 0.05 0.26 − D 1.15 1.35 1.25 E 1.60 1.80 1.70 He 2.30 2.70 2.50 L1 0.30 0.50 0.40 α1 7° − − α2 3° − − β1 7° − − β2 3° − − All Dimensions in mm
Suggested Pad Layout
C
Y (2x)
Dimensions Value (in mm) X 0.710 Y 0.403 C 2.700
X (2x)
UDZ5V1BF
Document number: DS32228 Rev. 5 - 2
3 of 4 www.diodes.com
August 2010
© Diodes Incorporated
