High Temperature Schottky Rectifier Diodes
Hochtemperatur-Schottky-Gleichrichterdioden
IFAV = 2x 15 A
VF1 ~ 0.72 V
Tjmax = 175°C
VRRM = 200 V
IFSM = 225/250 A
Version 2017-09-18
Typical Applications
High Frequent Output Rectification
in DC/DC Converters, Polarity
Protection, Free-wheeling diodes
Commercial grade 1)
Type
Typ
0.42
±0.1
3.9±0.3
1.3
±0.1
1 2 3
±0.2
0.8
±0.1
2.54
Dimensions - Maße [mm]
Features
High temperature operation
High reverse voltage
Dual diodes with
common cathode
Low forward voltage drop
Compliant to RoHS, REACH,
Conflict Minerals 1)
Besonderheiten
Hochtemperatur-Einsatz
Hohe Sperrspannung
Doppeldioden mit
gemeinsamer Kathode
Niedrige Fluss-Spannung
Konform zu RoHS, REACH,
Konfliktmineralien 1)
RoHS
Pb
EE
WE
±0.2
13.9±0.3
1 2 3
2.67
4
8.7±0.3
±0.7
Ø 3.8±0.2
4
14.9
4.5±0.2
±0.3
2.8±0.3
10.1
1.2±0.2
EL
V

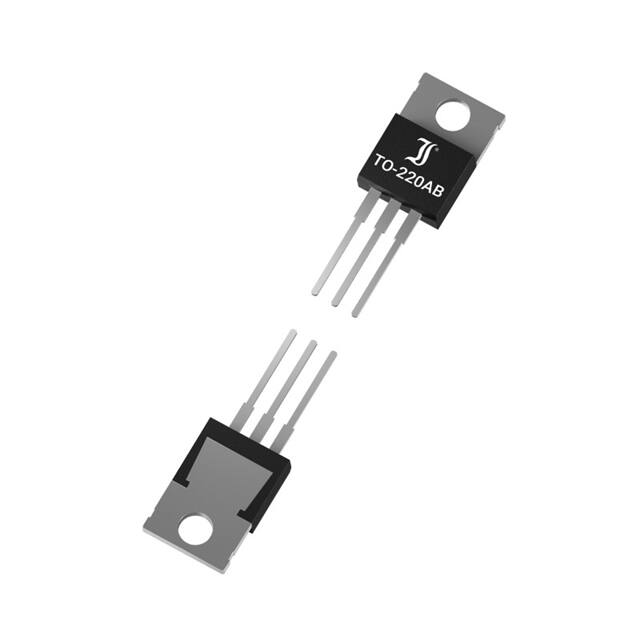

TO-220AB
Typische Anwendungen
Hochfrequenz-Ausgangsgleichrichtung
in Gleichstromwandlern,
Verpolschutz, Freilaufdioden
Standardausführung 1)
Mechanical Data 1)
Packed in tubes/cardboards
Weight approx.
Mechanische Daten 1)
50/1000
Verpackt in Stangen/Kartons
2.2 g
Gewicht ca.
Case material
UL 94V-0
Gehäusematerial
Solder & assembly conditions
260°C/10s
Löt- und Einbaubedingungen
MSL = 1
Maximum ratings 2)
Type
Typ
Grenzwerte 3)
Repetitive peak reverse voltage
Periodische Spitzensperrspannung
VRRM [V]
Surge peak reverse voltage
Stoßspitzensperrspannung
VRSM [V]
200
200
30CTQ200
Max. average forward rectified current
Dauergrenzstrom in Einwegschaltung
TC = 110°C
IFAV
15 A 3)
30 A 4)
Repetitive peak forward current
Periodischer Spitzenstrom
f > 15 Hz
TC = 110°C
IFRM
53 A 3)
Peak forward surge current
Stoßstrom in Fluss-Richtung
half sine-wave
Sinus-Halbwelle
50 Hz (10 ms)
60 Hz (8.3 ms)
IFSM
225 A
250 A
t < 10 ms
i2t
80 A2s
Tj
Tj
-50...+175°C
-50...+150°C
Rating for fusing
Grenzlastintegral
Junction temperature – Sperrschichttemperatur
Storage temperature – Lagerungstemperatur
1
2
3
4
Please note the detailed information on our website or at the beginning of the data book
Bitte beachten Sie die detaillierten Hinweise auf unserer Internetseite bzw. am Anfang des Datenbuches
TA = 25°C unless otherwise specified – TA = 25°C wenn nicht anders angegeben
Per diode − Pro Diode
Per device (parallel operation) − Pro Bauteil (Parallelbetrieb)
© Diotec Semiconductor AG
http://www.diotec.com/
1
30CTQ200
Characteristics 1)
Kennwerte 1)
Type
Typ
Forward voltage
Durchlass-Spannung
VF [V]
30CTQ200
typ 0.72
@ IF [A]
15
Forward voltage
Durchlass-Spannung
@ Tj
125°C
Leakage current
Sperrstrom
Tj = 25°C
Tj = 125°C
Typical junction capacitance – Typische Sperrschichtkapazität
VF [V]
@ IF [A]
@ Tj
< 0.86
15
25°C
VR = VRRM
IR
< 50 µA
typ. 1 mA
VR = 4 V
Cj
220 pF
Thermal resistance junction to case – Wärmewiderstand Sperrschicht – Gehäuse
120
RthC
< 3 K/W 2)
102
[%]
[A]
100
T j = 125°C
10
80
60
1
Tj = 25°C
40
10-1
20
IF
IFAV
0
30CTQ200
0
TC
50
100
150
10 0
-2
[°C]
Rated forward current versus case temperature
Zul. Richtstrom in Abh. von der Gehäusetemp.
VF
0.4
0.6
0.8 [V] 1.0
Forward characteristics (typical values)
Durchlasskennlinien (typische Werte)
102
[µA]
10
Tj = 125°C
T j = 100°C
Tj = 75°C
1
T j = 50°C
10-1
IR
10-20
T j = 25°C
VRRM
40
60
80
100 [%]
Typ. instantaneous leakage current vs. rev. voltage
Typ. Sperrstrom (Augenblickswert) ü. Sperrspannung
Disclaimer: See data book page 2 or website
Haftungssauschluss: Siehe Datenbuch Seite 2 oder Internet
1
2
2
Per diode − Pro Diode
Measured at heat flange – Gemessen an der Kühlfahne
