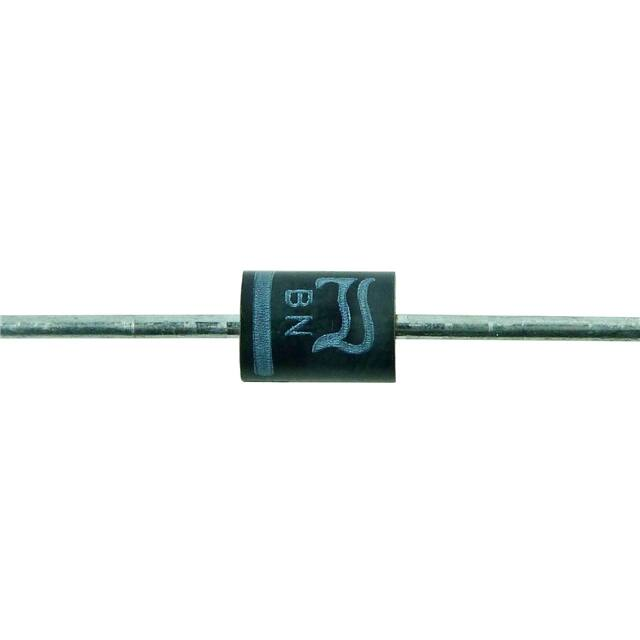

BY880-50 ... BY880-1400
BY880-50 ... BY880-1400
Standard Recovery Rectifier Diodes
Gleichrichterdioden mit Standard-Sperrverzug
IFAV = 6 A/8 A
VF < 1.1 V
Tjmax = 175°C
VRRM = 50...1400 V
IFSM = 400/450 A
trr
~ 1500 ns
Version 2020-04-30
Typical Application
50/60 Hz Mains Rectification,
Power Supplies, Polarity Protection
Solar Bypass Diodes
Commercial grade 1)
Type
7.5 ±0.1
Features
VRRM 1200V/1400 V (on request)
High forward surge current
Compliant to RoHS, REACH,
Conflict Minerals 1)
RoHS
Pb
EE
WE
62.5 ±0.5
Ø 5.4 ±0.1
Typische Anwendung
50/60 Hz Netzgleichrichtung,
Stromversorgungen, Verpolschutz
Solar-Bypassdioden
Standardausführung 1)
EL
V
Ø 5.4 x 7.5
Besonderheit
VRRM 1200V/1400 V (auf Anfrage)
Hohe Stoßstromfestigkeit
Konform zu RoHS, REACH,
Konfliktmineralien 1)
Mechanical Data 1)
Ø 1.2
±0.05
Mechanische Daten 1)
Taped in ammo pack
1250
Gegurtet in Ammo-Pack
Weight approx.
1.15g
Gewicht ca.
Case material
UL94V-0
Solder & assembly conditions
Dimensions - Maße [mm]
260°C/10s
Gehäusematerial
Löt- und Einbaubedingungen
MSL N/A
Maximum ratings 2)
Type
Typ
Grenzwerte 2)
Repetitive peak reverse voltage (AC)
Periodische Spitzensperrspannung (~)
VRRM [V]
Surge peak reverse voltage
Stoßspitzensperrspannung
VRSM [V]
BY880-50
50
50
BY880-100
100
100
BY880-200
200
200
BY880-400
400
400
BY880-600
600
600
BY880-800
800
800
BY880-1000
1000
1000
BY880-1200
1200
1200
BY880-1400
1400
1400
Max. average forward current
Dauergrenzstrom in Einwegschaltung
TA = 85°C
TA = 50°C
IFAV
6 A 3)
8 A 3)
Repetitive peak forward current – Periodischer Spitzenstrom f > 15 Hz
TA = 50°C
IFRM
80 A 3)
Peak forward surge current
Stoßstrom in Fluss-Richtung
50 Hz (10 ms)
60 Hz (8.3 ms)
IFSM
400 A
450 A
t < 10 ms
i2t
800 A2s
Junction temperature – Sperrschichttemperatur
in DC forward mode – bei Gleichstrom-Durchlassbetrieb
Tj
-50...+175°C
+200°C 4)
Storage temperature – Lagerungstemperatur
TS
-50...+175°C
Half sine-wave
Sinus-Halbwelle
Rating for fusing – Grenzlastintegral
1
2
3
4
Please note the detailed information on our website or at the beginning of the data book
Bitte beachten Sie die detaillierten Hinweise auf unserer Internetseite bzw. am Anfang des Datenbuches
TA = 25°C unless otherwise specified – TA = 25°C wenn nicht anders angegeben
Valid, if leads are kept at ambient temperature at a distance of 10 mm from case
Gültig, wenn die Anschlussdrähte in 10 mm Abstand vom Gehäuse auf Umgebungstemperatur gehalten werden
Meets the Requirements of IEC 61215 bypass diode thermal test – Erfüllt die Anforderungen des IEC 61215 Bypass-Diodentests
© Diotec Semiconductor AG
http://www.diotec.com/
1
BY880-50 ... BY880-1400
Characteristics
Kennwerte
Forward voltage – Durchlass-Spannung
Tj = 25°C
IF = 8 A
VF
< 1.1 V
Leakage current – Sperrstrom
Tj = 25°C
Tj = 100°C
VR = VRRM
IR
< 5 µA
typ. 50 µA
VR = 4 V
Cj
40 pF
trr
typ. 1500 ns
Thermal resistance junction to ambient
Wärmewiderstand Sperrschicht – Umgebung
RthA
< 20 K/W 1)
Thermal resistance junction to leads
Wärmewiderstand Sperrschicht – Anschlussdraht
RthL
< 4 K/W 2)
Typical junction capacitance – Typische Sperrschichtkapazität
Reverse recovery time
Sperrverzug
IF = 0.5 A through/über
IR = 1 A to IR = 0.25 A
120
103
[%]
[A]
100
102
80
Tj = 125°C
10
60
40
Tj = 25°C
1
20
IF
IFAV
0
10-1
0
TA
50
100
150
[°C]
300a-(5a-1v)
0.4
VF
0.8
1.0
1.2
1.4
[V] 1.8
Forward characteristics (typical values)
Durchlasskennlinien (typische Werte)
Rated forward current versus ambient temperature1)
1
Zul. Richtstrom in Abh. von der Umgebungstemp. )
3
10
[A]
102
10
îF
1
1
10
102
[n]
103
Peak forward surge current versus number of cycles at 50 Hz
Durchlaß-Spitzenstrom in Abh. von der Zahl der Halbwellen bei 50 Hz
Disclaimer: See data book page 2 or website
Haftungssauschluss: Siehe Datenbuch Seite 2 oder oder Internet
1
2
2
Valid, if leads are kept at ambient temperature at a distance of 10 mm from case
Gültig, wenn die Anschlussdrähte in 10 mm Abstand von Gehäuse auf Umgebungstemperatur gehalten werden
Valid in 3 mm distance from case (use for bypass diodes test)
Gültig in 3 mm Abstand vom Gehäuse (für Bypass-Diodentest)
http://www.diotec.com/
© Diotec Semiconductor AG
