MMS3Z2B4 ... MMS3Z43B
MMS3Z2B4 ... MMS3Z43B
Ptot = 300 mW
VZ = 2.4 V ... 43 V
Tjmax = 150°C
SMD Planar Zener Diodes
SMD Planar Zener-Dioden
Version 2018-11-02
Typical Applications
Voltage stabilization and regulators
(For ESD protection see ESD3Z series)
Commercial grade
Suffix -Q: AEC-Q101 compliant 1)
Suffix -AQ: in AEC-Q101 qualification 1)
0.3
1
1.7
1.25
±0.2
RoHS
Pb
EE
WE
Typ e
Co d e
Features
~ ±2% tolerance of Zener voltage
Sharp Zener voltage breakdown
Low leakage current
Compliant to RoHS, REACH,
Conflict Minerals 1)
EL
V

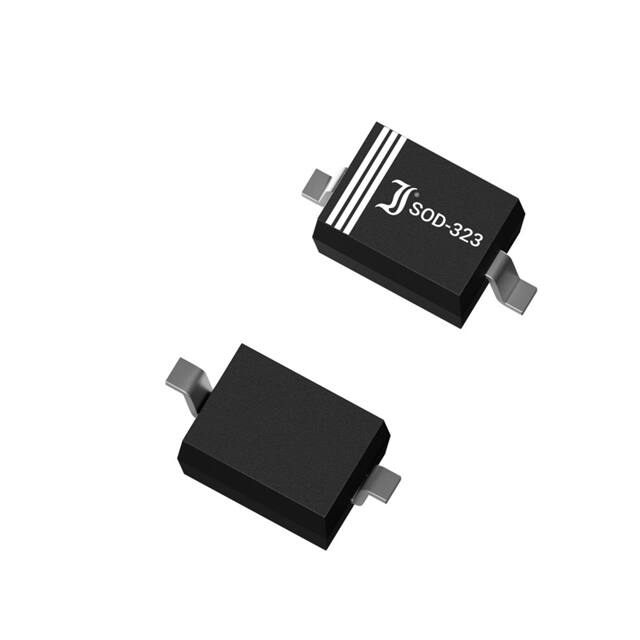

SOD-323
Typische Anwendungen
Spannungsstabilisierung und -regler
(Für ESD-Schutz siehe ESD3Z-Reihe)
Standardausführung
Suffix -Q: AEC-Q101 konform 1)
Suffix -AQ: in AEC-Q101 Qualifikation 1)
Besonderheiten
~ ±2% Toleranz der Zener-Spannung
Scharfer Zenerspannungsabbruch
Niedriger Sperrstrom
Konform zu RoHS, REACH,
Konfliktmineralien 1)
Mechanical Data 1)
2.5
Taped and reeled
Weight approx.
Dimensions - Maße [mm]
Solder & assembly conditions
Mechanische Daten 1)
3000 / 7“
Gegurtet auf Rolle
0.005 g
260°C/10s
Gewicht ca.
Löt- und Einbaubedingungen
MSL = 1
Zener voltages and Type Codes see table on next page
Zener-Spannungen und Typ-Kodierungen siehe Tabelle auf der nächsten Seite
Maximum ratings 2)
Grenzwerte 2)
Power dissipation
Verlustleistung
TA = 25°C
Junction temperature − Sperrschichttemperatur
Storage temperature – Lagerungstemperatur
Ptot
300 mW 3)
Tj
TS
-50...+150°C
-50...+150°C
Characteristics
Kennwerte
Typical thermal resistance junction to ambient
Typischer Wärmewiderstand Sperrschicht – Umgebung
1
2
3
RthA
417 K/W 3)
Please note the detailed information on our website or at the beginning of the data book
Bitte beachten Sie die detaillierten Hinweise auf unserer Internetseite bzw. am Anfang des Datenbuches
TA = 25°C unless otherwise specified – TA = 25°C wenn nicht anders angegeben
Mounted on P.C. board with 25 mm2 copper pads at each terminal
Montage auf Leiterplatte mit 25 mm2 Kupferbelag (Lötpad) an jedem Anschluss
© Diotec Semiconductor AG
http://www.diotec.com/
1
MMS3Z2B4 ... MMS3Z43B
Characteristics
Kennwerte
(Tj = 25°C unless otherwise specified)
Type
Typ
Code
MMS3Z...
Zener voltage 1)
Zener-Spanng. 1)
IZ = 5 mA
2
Dynamic resistance
Inhär. diff. Widerstand
rzj [Ω] at f = 1 kHz
Temp. Coeffiz.
of Z-voltage
…der Z-spanng.
Reverse voltage
Sperrspannung
VR at/bei IR
Z-current 2)
Z-Strom 2)
TA = 25°C
Vzmin [V]
Vzmax [V]
IZ = 5 mA
αVZ [10-4/°C]
VR [V]
IR [µA]
IZmax [mA]
2B4
2WX
2.35
2.45
100
-3.5...0
1
50
128
2B7/-Q
2W1
2.65
2.75
100
-3.5...0
1
20
113
3B0
2W2
2.94
3.06
95
-3.5...0
1
10
102
3B3
2W3
3.23
3.37
95
-3.5...0
1
5
93
3B6
2W4
3.53
3.67
90
-3.5...0
1
5
85
3B9/-Q
2W5
3.82
3.98
90
-3.5...0
1
3
79
4B3
2W6
4.21
4.39
90
-3.5...0
1
3
71
4B7
2W7
4.61
4.79
80
-3.5...0.2
2
3
65
5B1/-Q
2W8
5.0
5.20
60
-2.7...+1.2
2
2
60
5B6/-Q
2W9
5.49
5.71
40
-2.0...+2.5
2
1
55
6B2/-Q
2WA
6.08
6.32
10
+0.4...+3.7
4
3
49
6B8/-Q
2WB
6.66
6.94
15
+1.2...+4.5
4
2
45
7B5/-Q
2WC
7.35
7.65
15
+2.5...+5.3
5
1
41
8B2/-Q
2WD
8.04
8.36
15
+3.2...+6.2
5
0.7
37
9B1
2WE
8.92
9.28
15
+3.8...+7.0
6
0.5
34
10B
2WF
9.80
10.20
20
+4.5...+8.0
7
0.2
31
11B
2WG
10.78
11.22
20
+5.4...+9.0
8
0.1
28
12B
2WH
11.76
12.24
25
+6.0...+10.0
8
0.1
26
13B
2WI
12.74
13.26
30
+7.0...+11.0
8
0.1
24
15B/-Q
2WJ
14.70
15.30
30
+9.2...+13.0
10.5
0.1
20
16B
2WK
15.68
16.32
40
+10.4...+14.0
11.2
0.1
19
18B
2WL
17.64
18.36
45
+12.4...+16.0
12.6
0.1
17
20B
2WM
19.60
20.40
55
+14.4...+18.0
14
0.1
15
22B
2WN
21.56
22.44
55
+16.4...+20.0
15.4
0.1
14
24B
2WO
23.52
24.48
70
+18.4...+22.0
16.8
0.1
13
IZ =
1
2
(Tj = 25°C wenn nicht anders spezifiziert)
2mA
2mA
27B
2WP
26.46
27.54
80
+21.4...+25.3
18.9
0.1
11
30B
2WQ
29.40
30.60
80
+24.4...+29.4
21
0.1
10
33B
2WR
32.34
33.66
80
+27.4...+33.4
23.1
0.1
9
36B
2WS
35.28
36.72
90
+30.4...+37.4
25.2
0.1
9
39B
2WT
38.22
39.80
130
+33.4...+41.2
27.3
0.1
8
43B
2WU
41.16
43.84
130
+10.0...+12.0
32
0,.1
7
Tested with pulses tp = 5 ms – Gemessen mit Impulsen tp = 5 ms
Mounted on P.C. board with 3 mm2 copper pads at each terminal
Montage auf Leiterplatte mit 3 mm2 Kupferbelag (Lötpad) an jedem Anschluss
http://www.diotec.com/
© Diotec Semiconductor AG
MMS3Z2B4 ... MMS3Z43B
120
[-10 /°C]
8
-4
100
50
[mV/°C]
12
[%]
40
80
4
30
60
0
20
40
-4
10
20
-8
0
Ptot
a Vz
0
0
TA
100
50
aVzxVz
-12
150
VZ
[°C]
Power dissipation versus ambient temperature )
Verlustleistung in Abh. von d. Umgebungstemp.1 )
1
30
15
45
-10
[V]
Typ. temperature coefficient vs Zener voltage
Typ. Temperaturkoeffizient in Abh. der Zener-Spg.
VZ
15
30
45
[V]
Typ. temperature drift vs Zener voltage
Typ. Temperaturdrift in Abh. der Zener-Spannung
15
5,1
[mA]
5,6
10
8,2
6,8
6,2
4,7
10
10
9,1
7,5
18
24
30
36
43
47
4,3
3,9
5
IZ = 5 mA
3,6
IZmax
3,3
Tj = 25°C
3,0
2,7
IZ
2,4
0
Zener voltage vs Zener current – Abbruchspannung über Zenerstrom
4
5
7
0
VZ
2
3
6
8
10
[V]
Zener Voltage vs. Zener current – Abbruchspannung über Zenerstrom
10
3
10
T j = -2 5 °C
T j = 1 0 0 °C
T j = 2 5 °C
T j = 7 5 °C
V Z = 10 V
[Ohm]
[mA]
10
2
[mA]
1
10
102
T j = 1 2 5 °C
-1
10
T j = -2 5 °C
1
T j = 7 5 °C
T j = 2 5 °C
10
-1
10
10-2
rzj
IO
tp = 40m s
VZ = 1 0 V
-3
10
9
VO
10
11
[V] 12
Typical Zener current vs Zener voltage
Typischer Zenerstrom über Zenerspannung
IF
1
10-2
IZ
10-1
1
[mA]
10
Typ. dynamic resistance vs Zener current
Typ. inh. diff. Widerstand in Abh. vom Zenerstrom
10-2
0
VF
0.4
0.6
0.8
1.0
[V] 1.4
Forward characteristics (typical values)
Durchlasskennlinien (typische Werte)
Disclaimer: See data book page 2 or website
Haftungssauschluss: Siehe Datenbuch Seite 2 oder Internet
© Diotec Semiconductor AG
http://www.diotec.com/
3
