ZPD2.7 ... ZPD75
ZPD2.7 ... ZPD75
Ptot = 500 mW
VZ = 2.7 V ... 75 V
Tjmax = 175°C
Planar Zener Diodes
Planare Zener-Dioden
Version 2016-11-23
3.9
62.5
±0.4
±3
Ø 1.9±0.1
Typical Applications
Voltage stabilization and regulators
(For overvoltage protection
– uni- and bi-directional – see
TVS diodes BZW04/P4KE series)
Commercial grade 1)
RoHS
Pb
EE
WE
Features
Sharp Zener voltage breakdown
Low leakage current
Compliant to RoHS, REACH,
Conflict Minerals 1)
Typische Anwendungen
Spannungsstabilisierung und -regler
(Für Überspannungsschutz
– uni-und bidirektional – siehe
TVS-Diodenreihe BZW04/P4KE series)
Standardausführung 1)
EL
V

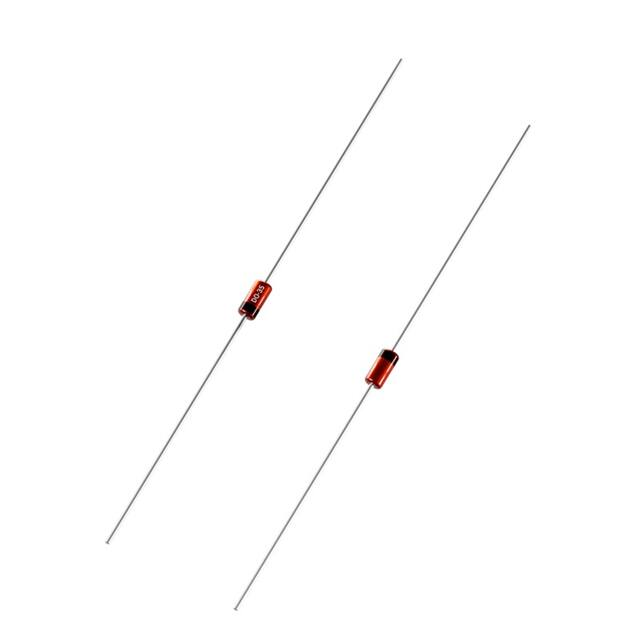

~DO-35 / ~(SOD-27)
Besonderheiten
Scharfer Zenerspannungsabbruch
Niedriger Sperrstrom
Konform zu RoHS, REACH,
Konfliktmineralien 1)
Mechanical Data 1)
Ø max 0.5
Dimensions - Maße [mm]
Mechanische Daten 1)
Taped in ammo pack
5000
Weight approx.
0.17 g
Solder & assembly conditions
Gegurtet in Ammo-Pack
Gewicht ca.
260°C/10s
Löt- und Einbaubedingungen
MSL N/A
Standard Zener voltage tolerance is graded to the international E 24 (~ ±5%) standard.
Other voltage tolerances and higher Zener voltages on request.
Die Toleranz der Zener-Spannung ist in der Standard-Ausführung gestuft nach der internationalen
Reihe E 24 (~ ±5%). Andere Toleranzen oder höhere Arbeitsspannungen auf Anfrage.
Maximum ratings 2)
Grenzwerte 2)
Power dissipation – Verlustleistung
TA = 25°C
Operating junction temperature – Sperrschichttemperatur
Storage temperature – Lagerungstemperatur
Ptot
500 mW 3)
Tj
TS
-50...+175°C
-50...+175°C
Characteristics
Kennwerte
Thermal resistance junction to ambient air
Wärmewiderstand Sperrschicht – umgebende Luft
RthA
< 300 K/W 2)
Thermal resistance junction to lead
Wärmewiderstand Sperrschicht − Anschlussdraht
RthL
< 240 K/W
4
1
2
3
4
Please note the detailed information on our website or at the beginning of the data book
Bitte beachten Sie die detaillierten Hinweise auf unserer Internetseite bzw. am Anfang des Datenbuches
TA = 25°C unless otherwise specified – TA = 25°C wenn nicht anders angegeben
Valid, if leads are kept at ambient temperatere at a distance of 10 mm from case
Gültig, wenn die Anschlussdrähte in 10 mm Abstand vom Gehäuse auf Umgebungstemperatur gehalten werden
Tested with pulses – Gemessen mit Impulsen
© Diotec Semiconductor AG
http://www.diotec.com/
1
ZPD2.7 ... ZPD75
Characteristics
Kennwerte
(Tj = 25°C unless otherwise specified)
Type
Typ
Zener voltage 4)
Zener-Spannung 4)
IZ = 5 mA
(Tj = 25°C wenn nicht anders spezifiziert)
Dynamic resistance
Diff. Widerstand
rzj [Ω] at f = 1 kHz
Temp. Coeffic.
of Z-voltage
…der Z-Spannung
Reverse volt.
Sperrspanng.
IR = 100 nA
Z-current 3)
Z-Strom 3)
TA = 25°C
Vzmin [V]
Vzmax [V]
IZ = 5 mA
IZ = 1 mA
αVZ [10-4 /°C]
VR [V]
IZmax [mA]
ZPD2.7
2.5
2.9
75 (< 83)
< 500
–9…–4
–
172
ZPD3.0
2.8
3.2
80 (< 95)
< 500
–9…–3
–
156
ZPD3.3
3.1
3.5
80 (< 95)
< 500
–8…–3
–
143
ZPD3.6
3.4
3.8
80 (< 95)
< 500
–8…–3
–
132
ZPD3.9
3.7
4.1
80 (< 95)
< 500
–7…–3
–
122
ZPD4.3
4.0
4.6
70 (< 85)
< 500
–6…–1
–
109
ZPD4.7
4.4
5.0
60 (< 78)
< 500
–5…+2
–
100
ZPD5.1
4.8
5.4
30 (< 60)
< 480
–3…+4
> 0.8
93
ZPD5.6
5.2
6.0
10 (< 40)
< 400
–2…+6
>1
83
ZPD6.2
5.8
6.6
5 (< 10)
< 200
–1…+7
>2
76
ZPD6.8
6.4
7.2
4.5 (< 8)
< 150
+2…+7
>3
69
ZPD7.5
7.0
7.9
4 (< 7)
< 50
+3…+7
>5
63
ZPD8.2
7.7
8.7
4.5 (< 7)
< 50
+4…+7
>6
57
ZPD9.1
8.5
9.6
5 (< 10)
< 50
+5…+8
>7
52
ZPD10
9.4
10.6
5.2 (< 15)
< 70
+5…+8
> 7.5
47
ZPD11
10.4
11.6
6 (< 20)
< 70
+5…+9
> 8.5
43
ZPD12
11.4
12.7
7 (< 20)
< 90
+6…+9
>9
39
ZPD13
12.4
14.1
9 (< 25)
< 110
+7…+9
> 10
35
ZPD15
13.8
15.6
11 (< 30)
< 110
+7…+9
> 11
32
ZPD16
15.3
17.1
13 (< 40)
< 170
+8…+9.5
> 12
29
ZPD18
16.8
19.1
18 (< 50)
< 170
+8…+9.5
> 14
26
ZPD20
18.8
21.2
20 (< 50)
< 220
+8…+10
> 15
24
ZPD22
20.8
23.3
25 (< 55)
< 220
+8…+10
> 17
21
ZPD24
22.8
25.6
28 (< 70)
< 220
+8…+10
> 18
20
ZPD27
25.1
28.9
30 (< 80)
< 250
+8…+10
> 20
17
ZPD30
28
32
35 (< 80)
< 250
+8…+10
> 22
16
ZPD33
31
35
40 (< 80)
< 250
+8…+10
> 24
14
ZPD36
34
38
40 (< 90)
< 250
+8…+10
> 26
13
ZPD39
37
41
50 (< 90)
< 300
+10…+12
> 28
12
ZPD43
40
46
60 (< 100)
< 500
+10…+12
> 30
11
ZPD47
44
50
70 (< 110)
< 700
+10…+12
> 33
10
ZPD51
48
54
80 (< 125)
< 700
+10…+12
> 36
9
ZPD56
52
60
90 (< 135)
< 750
+10…+12
> 39
8
ZPD62
58
66
100 (< 150)
< 800
+10…+12
> 44
8
ZPD68
64
72
110 (< 200)
< 850
+10…+12
> 48
7
ZPD75
70
79
120 (< 250)
< 900
+10…+12
> 52
6
3,4
Disclaimer: See data book page 2 or website
Haftungssauschluss: Siehe Datenbuch Seite 2 oder Internet
3,4 Notes see previous page – Fußnoten siehe vorhergehende Seite
2
http://www.diotec.com/
© Diotec Semiconductor AG
